Home > Products > LED Controllers > 2048pixels controlled LED2813-X Mini RF Wireless WS2811//WS2812B/TM1804/TM1809/INK1003 Dream Color Controller

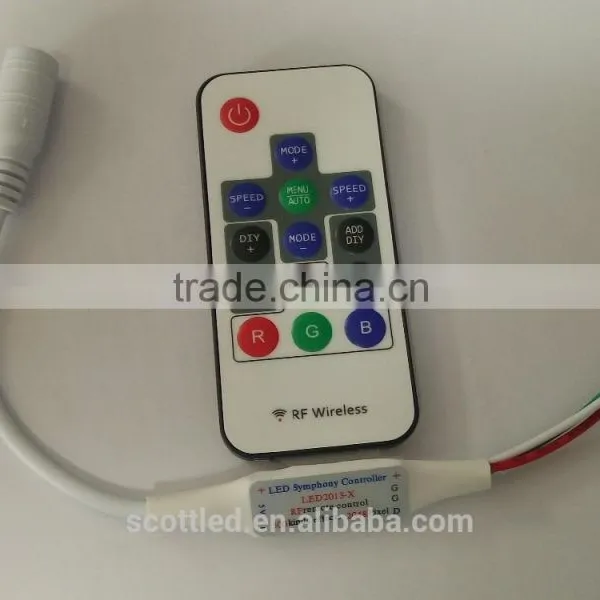

2048pixels controlled LED2813-X Mini RF Wireless WS2811//WS2812B/TM1804/TM1809/INK1003 Dream Color Controller
- 50000 Piece / Pieces per Month
- Shenzhen
- Credit Card
- SP107E Programmable RGB APP Music Led Pixel Light Stripe Controller for WS2812 WS2801 Dream Color Led Strip
- Gledopto Pro 5 IN 1 ZigBee and 2.4GHz RF Controllable LED Receiver GL-C-001P 12V-54V
- Philips SES LSM1010 Occ PIR WH
- Smart Home Zigbee Remote Control Led Bulb Light Controller Zigbee Remote Switch
- Remote Control Led Bulb Light Controller Zigbee Remote Switch
- Remote Control Led Bulb Light Controller Zigbee Remote Switch
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SCOTT | Model Number: | SC-14-WF |
Type: | Remote Control | Voltage: | Other, 5V |
Product Description
2048pixels controlled LED2813-X Mini RF Wireless WS2811//WS2812B/TM1804/TM1809/INK1003 Dream Color Controller
Basic parameters
Operating Voltage DC5V, DC7~12V, DC24V three versions .
Operating Current <30 mA.
Operating Temperature -20℃——60℃.
Size L29 * W12 * H3 mm.
Weight 0.02kg.
Effect Programs 300 kinds of effects, covering all dream color controllers effect on the market.
Operation 14~key multifunction RF wireless remote control (433.92MHZ) and 4~key high~power RF wireless remote control key in two versions.
Maximum control number of pixels 2048 pixels
Signal wires Maximum length 30 meter
RF wireless remote control distance 50 meters (14~key multi-function RF remote control)
Connection diagram (12V and 24V versions, light strip the power can be connected to controller. 5V version control "+" no voltage output. So light strip the power can't be connected to controller. )
The following is a 5V version connection diagram, with 12V ,24V versions are different
Functions and features
The history of the smallest (1.2cm×2.9cm).
RF integrated on the motherboard, sensitive and stable, simple and convenient.
300 kinds of effect programs, spike all controllers on the market.
Maximum can be controlled 2048 pixel points.
Any combination 16 effect programs of the custom play list function, to meet customer demand for self-programming (with 14-key multi-function RF remote versions have this feature).
14-key multi-function RF remote control (433.92 MHz)
RF remote control pairing function or all RF remote control universal function.
Can be adjustment 32 brightness of Static monochrome effect program.
Automatic playback, adjust the number of pixels, adjust the speed, power off auto-save feature.
To purchase a master controller, you can wirelessly synchronize all controllers (within 500 meters)
Operating Instructions
The Operating Instructions at playing status (power on)
The menu operating Instructions at shutdown status
Adjust pixel point methods of operation
Adjust light strip RGB color sequential of operation
Product Show:
