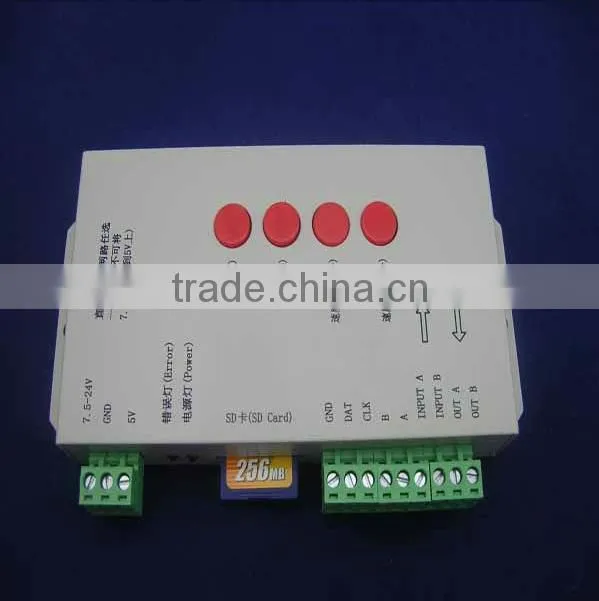

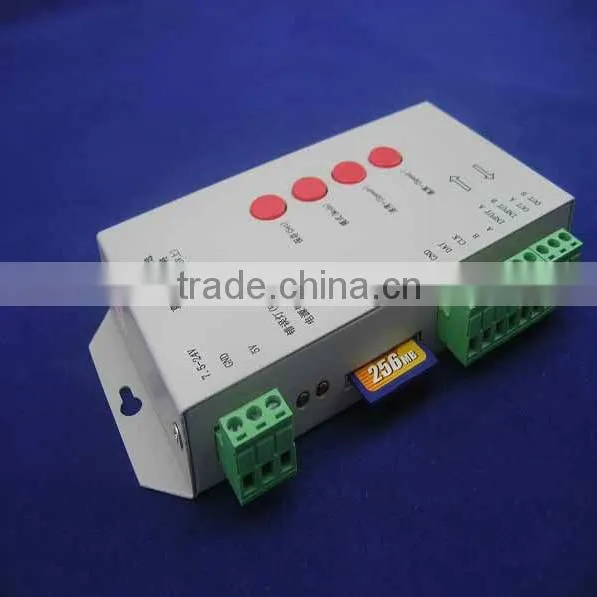

led pixel controller rgb led controller SD card T-1000s Pixel controller
features
1,32—256 Gray,Gamma correction procession software
2,Support the rules and special-shaped handle.
3,Single-port output,can support 1024/2048 lights
4,Off-line control, play back content stored in the SD card
5,T-1000C store a maximum of 16 documents,copy multiple files to the SD card in order
Note:1.T-1000C-port 512 lights, the playback speed of up to 30 frames / sec, the port more than 512 lights, the frame rate with the increase in the number of lights automatically reduced. 2. Display files naming: when placing one file, copy the software-generated display file to the formatted SD card, when placing multiple files should be named as “00led”,”01led”,”02led”…(00means the first display file, 01means the second, and so on)
Support chips:
Support chips |
LedEdit corresponding model |
Single one support lights |
Remarks LED pixel RGB |
LPD6803,D705,1101,6909,6912 |
T-1000-6803 |
2048pixels |
|
LPD8806,LPD8809 |
T-1000-8806 |
2048pixels |
|
TM1803,TM1804,TM1809,TM1812 |
T-1000-TM |
2048pixels |
TM1804 and TM1809 are divided into high and low |
DMX512 |
T-1000-DMX |
170/512pixels |
Compatible standard DMX512agreement |
WS2801,WS2803 |
T-1000-WS |
2048pixels |
|
TLS3001,TLS3002 |
T-1000-TLS |
2048pixels |
|
P9813 |
T-1000-P9813 |
2048pixels |
|
SM16715 |
T-1000-SM16715 |
2048pixels |
|
SM16716 |
T-1000-SM16716 |
2048pixels |
|
BS0815 |
T-1000-0815 |
2048pixels |
|
Match 6909,6912 Guardrail tube |
T-1000-HL32 |
1024pixels×sub-control quantity |
Must connect sub-control board |

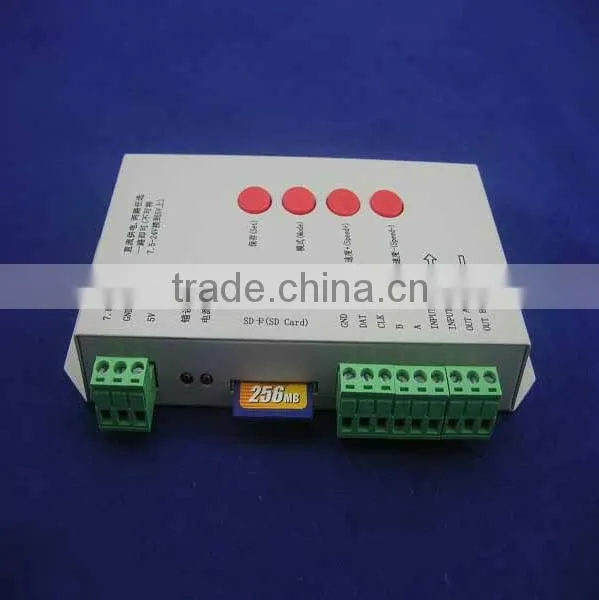

Screen printing definition :
7.5-24V |
DC power input, to provide two sets of power input, select a group can be. |
5V | |
GND |
Power Ground |
ERROR |
Error indicator |
POWER |
Power LED |
SD CARD |
SD card slot |
CLK |
Output signal CLK |
DAT |
Output signal DATA |
GND |
Signal ground |
B |
Compatible with DMX,differential A(DAT+),and differential B(DAT-). |
A | |
GND |
Signal ground |
