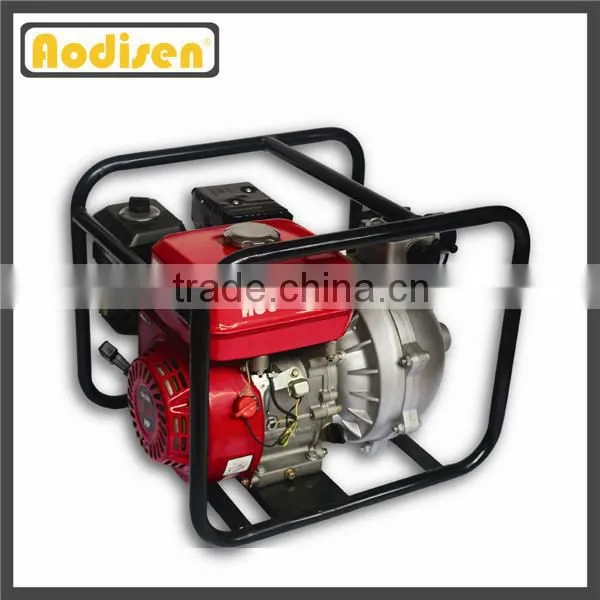

3 Inch Petrol Engine Mini High Pressure Electric Water Pump

3 Inch Petrol Engine Mini High Pressure Electric Water Pump photo-1
US$ 210 - 245 MOQ: 330 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Aodisen
Model Number:
GP80H
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Aodisen
Model Number GP80H
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Other, Engine power
Standard or Nonstandard Standard
Fuel Gasoline
Pressure Low Pressure
Application Other, agriculture water pump

3 inch petrol engine mini high pressure electric water pump

Fuel:gasoline/petrol

3 inch petrol engine mini high pressure electric water pump3 inch petrol engine mini high pressure electric water pump

High pressure water pump Features:

  1. Economical, reliable and durable
  2. Easy to start, durable OHV, high quality
  3. Auto oil alert to avoid low oil.
  4. Pump body made of light-weight but strong aluminum alloy
  5. Cast iron volute and impeller
  6. High-quality ceramic mechanical sealling

  7. EXW price for centre spare parts.





Production Description:

Model No:GP40HGP50HGP80HGP100H
Suction discharge diameter mm(in)40(1.5" )50(2")80(3" )100(4" )
cont head(m)60151316
Self-priming time3070120180
Max Suction head8888
Contcapacity(m3/hr)18223640
Engine model ZT200ZT160ZT200ZT390
Speed(RPM)3000/36003000/36003000/36003000/3600
Typefour-stroke air-cooled OHV gasoline engine
Displacement(cc)196163196242
Bore X stroke(mm)68x5466x4568x4573x58
Fuel tank capacity(L)3.63.63.66
Oil alertyesyesyesyes
Connecter of infall.yesyesyesyes
Connecter of outfall.yesyesyesyes
Fitteryesyesyesyes
Seal ringyesyesyesyes
Hoopyesyesyesyes
Dimension(LxWxH)(mm)510x390x445445x390x425510x390x445615x450x570
Dry weight(kgs)27.5263046
Load qty(20ft)340sets390sets340sets192sets

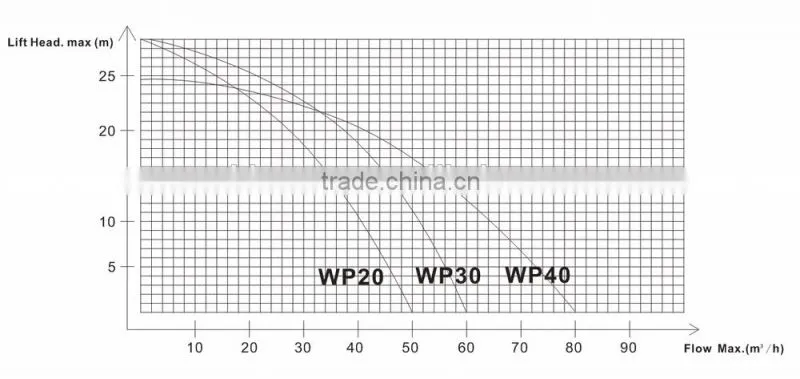

Power Map :

3 inch petrol engine mini high pressure electric water pump



Similar water pump (Click photo to get related description)

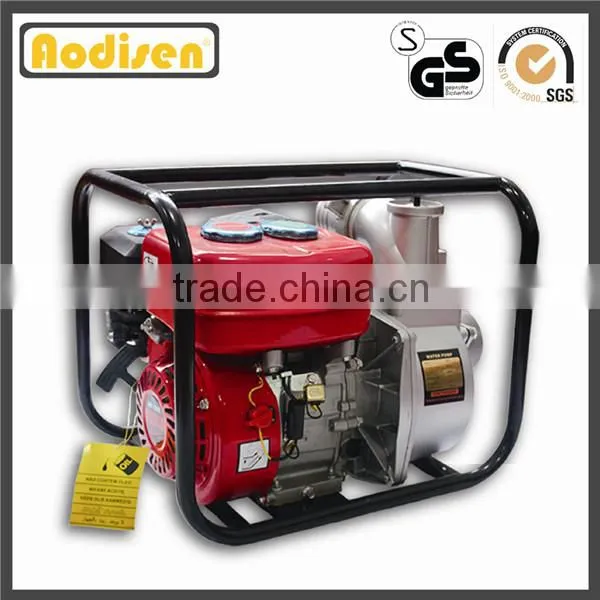

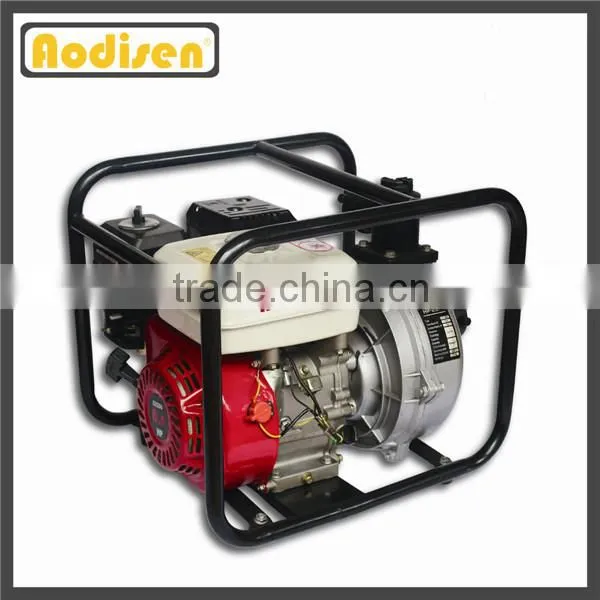

High pressure gasoline water pump     kerosene & gasoline water pump

3 inch petrol engine mini high pressure electric water pump                 3 inch petrol engine mini high pressure electric water pump

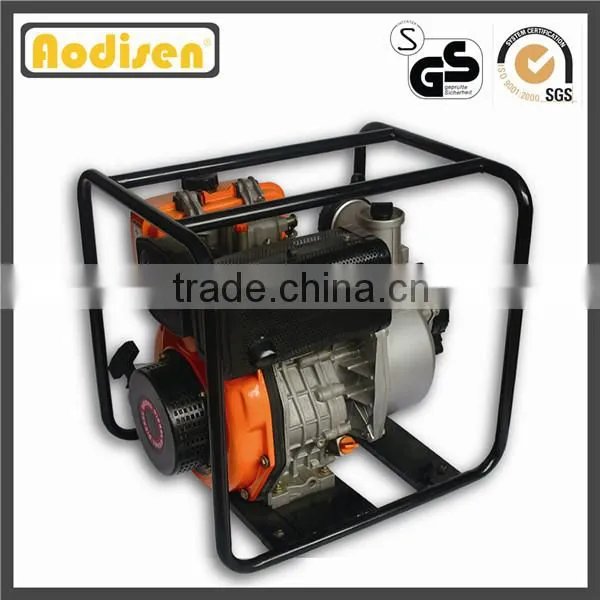

Diesel water pump                           gasoline water pump

3 inch petrol engine mini high pressure electric water pump   3 inch petrol engine mini high pressure electric water pump







Company Show:

3 inch petrol engine mini high pressure electric water pump





Factory Show:

     Raw Material

3 inch petrol engine mini high pressure electric water pump



     Assembly

3 inch petrol engine mini high pressure electric water pump



     Testing

3 inch petrol engine mini high pressure electric water pump



      Packing

3 inch petrol engine mini high pressure electric water pump

     Loading

 3 inch petrol engine mini high pressure electric water pump





customer

3 inch petrol engine mini high pressure electric water pump
