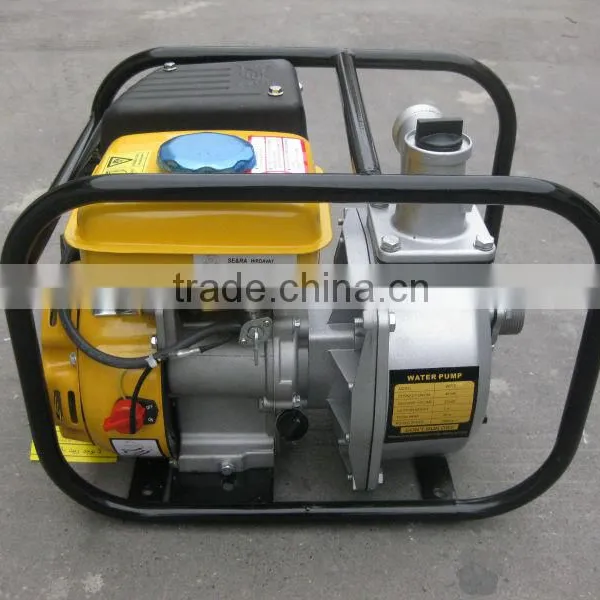

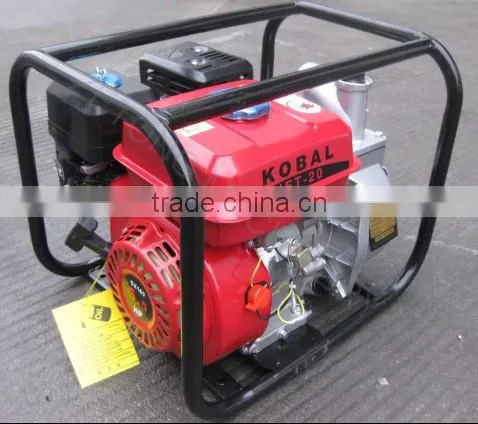

2 Inch 5.5hp Engine WP20 Small Gasoline Petrol Water Pump

2 Inch 5.5hp Engine WP20 Small Gasoline Petrol Water Pump thumbnail-1
2 Inch 5.5hp Engine WP20 Small Gasoline Petrol Water Pump photo-1
US$ 56 - 62 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Aodisen
Model Number:
WP20
Contact Supplier Request Quote Chat Now
Taizhou Zetong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Aodisen
Model Number WP20
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Other, Engine power
Standard or Nonstandard Standard
Fuel Gasoline
Pressure Low Pressure
Application Other, agriculture, farm, home, garden
2 inch 5.5hp engine WP20 small gasoline petrol water pump





Product Description





2 inch 5.5hp engine WP20 small gasoline petrol water pump

2 inch 5.5hp engine WP20 small gasoline petrol water pump2 inch 5.5hp engine WP20 small gasoline petrol water pump



Technical Data:

Model WP10 WP15 WP20 WP30 WP40
Outlet Size(mm) 25 40 50 80 100
Inlet Size(mm) 25 40 50 80 100
Speed (rpm) 6800 3600 3600 3600 3600
Lift Head. max (m) 22 20 30 30 25
Flow. max(m3/h) 7 21 27 60 80
Suction(m) 7 7 7 7 8
Maximum Power Output (HP) 2.2 2.5 5.5 6.5 13
Engine Model 1E40-6F JJ154 JJ168F JJ168-1 JJ188
Bore x Stroke (mm)   52x38 68x45 68x54 88x64
Displacement (cc) 50.2 87 163 196 389
Compresslon Ratio 7.7: 1 7.7: 1 8.5: 1 8.5: 1 8.0: 1
Maximum Power Output 1.7kw/4000rpm 1.7kw/4000rpm 4.0kw/3600rpm 4.8kw/3600rpm 9.5kw/3600rpm
Recommended Power Using 1.65kw/3600rpm 1.65kw/3600rpm 3.4kw/3600rpm 4.0kw/3600rpm 8.0kw/3600rpm
Maximum Torque 4.2N. M/3200RPM 4.2N. M/3200RPM 10N. M/2500RPM 11N. M/2500RPM 21N. M/2500RPM
Ignition System Non-contact transistorized(TCL)
Engine type 2 stroke Single cylinder, Air-cooled, 4-stroke, 25 inclined
Starting System Recoil and hand-operated Recoil and hand-operated/Eletric start
Air Cleaner semi-dry oil bath type
Fuel tank Capacity (L) 1 1.6 3.6 3.6 6.5
Fuel Consumption(L) ≤ 450g/kw/h ≤ 450g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h
oil Capacity (L) / 0.4 0.6 0.6 1.1
run time per tankful @3/4 load 1h 1.5h 2.6h 2.6h 2.6h
Net Weight(kg) 9/10 15/16 25/27 28/30 45/47
Dimensions LxWxH(mm) 310x295x315 470x365x375 475x375x380 500x375x405 630x455x500







Features

1. Economical, reliable and durable
2. Easy to strt, durable OHV, high quality
3. Oil alert to shut down engine automatically when low oil is detected
4. Pump body made of light-weight but strong aluminum alloy
5. Cast iron volute and impeller
6. High-quality ceramic mechanical sealling
7. Max. pump lift of 26m, Max. suction of 7m

2 inch 5.5hp engine WP20 small gasoline petrol water pump

- Factory Show

     - Raw Material

2 inch 5.5hp engine WP20 small gasoline petrol water pump







- Assembly

2 inch 5.5hp engine WP20 small gasoline petrol water pump

2 inch 5.5hp engine WP20 small gasoline petrol water pump





- Test

2 inch 5.5hp engine WP20 small gasoline petrol water pump







- Packing

2 inch 5.5hp engine WP20 small gasoline petrol water pump


- Loading


 2 inch 5.5hp engine WP20 small gasoline petrol water pump







- Sample Room

2 inch 5.5hp engine WP20 small gasoline petrol water pump







customer

2 inch 5.5hp engine WP20 small gasoline petrol water pump



1 inch - 4 inch gasoline water pump

Professional generator manufacturer with R&D capacity

Reliable quality, reasonable price, desirable service

Tell us your demand, provide what you want

Contact us now, let's make a deal.........
