2KW ASTRA KOREA HONDA ENGINE Generator Parts

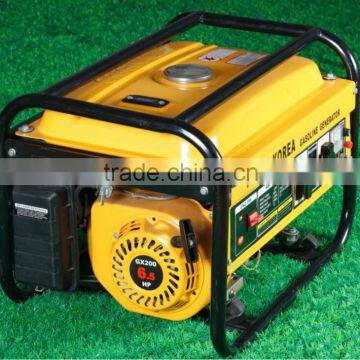

2KW ASTRA KOREA HONDA ENGINE Generator Parts photo-1
US$ 66 - 95 MOQ: 1 Carton
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Zton
Model Number:
ZT2500LT
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Zton
Model Number ZT2500LT
Output Type AC Single Phase
Speed 3600/rpm
Frequency 50/60HZ
Rated Power 2.0/ 2.5/ 3.0/ 3.5/ 4.0/ 4.5/ 5.0/ 6.0kw kva
Rated Voltage 240/220/120/110V
Rated Current 12V 8.3A

Specifications

generator parts
1.high thermal efficiency,
2.reliable,low fault
3.With CE, SONCAP
4.OEM

2KW ASTRA KOREA HONDA ENGINE generator parts

ASTRA KOREA   fireman generator   gasoline generator 168f-1





2.0-6.0kw ozone generator astra korea
1.high thermal efficiency,
2.reliable,low fault
3.With CE, SONCAP
4.OEM,



2KW ASTRA KOREA HONDA ENGINE generator parts

2KW ASTRA KOREA HONDA ENGINE generator parts





- Technical Data:

Power: from 2.0kw to 6.0kw





Generator Rated A. C. output 2.0kW 2.5kW 2.8kW 5.0kW 6.0kW
Max. A. C. output 2.2kW 2.8kW 3.0kW 5.5kW 6.5kW
A. C. Frequency                                       50/60Hz
Rated Voltage                                 240/220/120/110V
Engine Engine Model JJ-168F JJ-170 JJ-177F JJ188F JJ190F
Power 6.5HP 7.0HP 9.0HP 13.0HP 15.0HP
Engine Type Air-cooled; 4-stroke; OHV, Single Cylinder
Ignition System Transistor Magneto
Starting System Recoil/Electric
Displacement  Max. Output 163cc 196cc 210cc 389cc 420cc
Max. Output 4.1kW 4.8kW 5.1kW 9.6kW 11kW
Fuel Tank Capacity 15L 15L 15L 25L 25L
Continuous Operating Time 13h 12h 10h 10h 8h
Min. Fuel Consumption 360g/kW.h 360g/kW.h 360g/kW.h 360g/kW.h 360g/kW.h
Noise Level 65dB 67dB 69dB 74dB 78dB
Lube. Oil Capacity 0.6L 0.6L 0.6L 1.1L 1.1L
Size & Weight Dimension(LxWxH)(mm) 605x445x445 605x445x445 605x445x445 695x525x545 695x525x545
Loading Qty: 20GP/40HQ 240/593pcs 240/593pcs 240/593pcs 128/272pcs 128/272pcs
Net Weight 40kg 43kg 45kg 82kg 85kg



Alternator: high quality alternator (copper wire and aluminum wire optional)

Starting: recoil start, with electric start optional (7Ah, 9Ah or 17Ah battery)

Optional: 8''/10" rubber or solid wheels & 2 handles

Tell us your detail requirement, to recommend you the right one






- Features

1. Portable compact open structure
2. Economical, reliable and durable
3. Long run time - up to 13.5 hours
4. AVR to automatically regulate voltage
5. Oil alert to shut down engine automatically when low oil is detected
6. Circuit breaker to stop engine automatically when overloaded
7. Powers fridge, furnace, lights, TV, computer, and much more
8. CE, SONCAP, ISO certification approved
9. One year or 500 hours warranty
