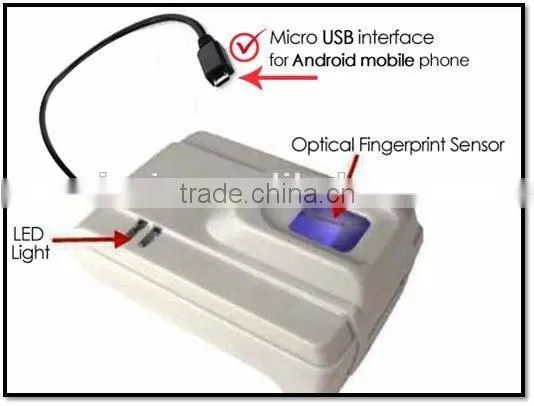

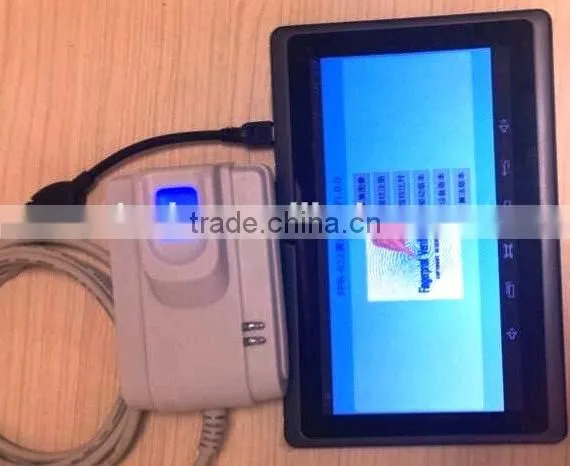

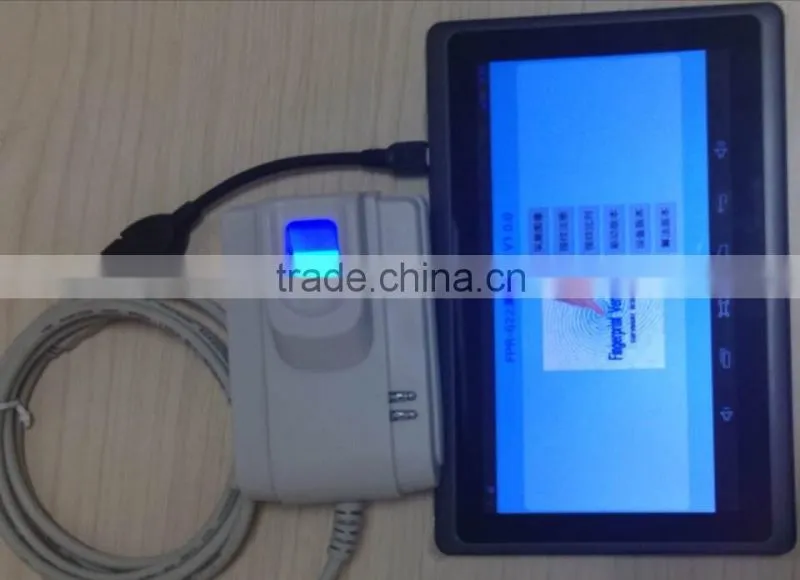

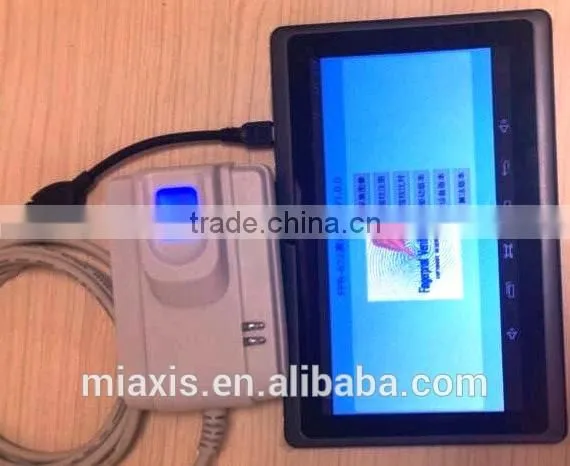

FPT 601 mini android tablet with biometic fingerprint scanner FPR622

Specifications

fingerprint scanner with high reliability
ROHS compatible fingerprint scanner
Android tablet PC customized smart phone android

Applicable Scenario

As a biometric identification device, it could be integrated into any system that has identification requirements. For example, bank transaction security system, voter registration system, information security system, online time attendance system and so on.

Comparative advantage

Compared to our competitors, miaxis’s FPR622 has several advantages.

1)       High reliability. FPR62 series product has a history of 5+ years. The accumulated sales volume reaches 300,000+. Very few customers complained to Miaxis. All the accessories ,such as DLL and manuals are mature.

 2)       Best dealer policy. Miaxis is willing to cooperate with strong business partners who will enjoy our price protection policy. Special discount based on purchase volume will not be released to public.



3)         Technical support. Invested by Intel, Miaxis owns his American patent. For any customers that need secondary development, Miaxis is your choice.

Technical specifications

Items	Description
Resolution	500DPI
Fingerprint image enrollment time	< 0.5s
Fingerprint match time	< 0.01s
Security level	5, adjustable
FAR	<0.0001%
FRR	<0.01%
Sensor	Optical fingerprint sensor
Fingerprint verification technology	Miaxis fingerprint verification algorithm(independent intellectual property)
Allowable rotation	360°
Power supply	5V±5%
Communication interface	USB2.0
Working temperature	-15~40
Working humidity	45%RH~85%RH (no dew)
Operation system	Windows2000/XP/Vista,DirectX 8.0 or above
Dimension	100x66x51mm (Can be customized )



Android Tablet PC can be customized.



LCD	7" Capacitive Touch Screen LCD 16:9, 1024*600 pix
CPU	dual core MTK8312 1.2GHz Cortex-A7
OP System	ANDROID GOOGLE SYSTEM 4.2.2
Memory	512MB DDR3 Support 5 points touch
Hard Disk	4GB FLASH(SUPPORT:8GB16GB optiaonal)
PHONE CALL	support 2G &3G network phone call
Card Reader	Support TF Card (MAX 32GB)
3G	Support 3G call WCDMA
frequency	Support GSM 850/900/1800/1900/3G:2100       Optional:850 1900GHZ network
Dual Camera	0.3M pixel front,2.0 pixel back
I/O	Micro USB OTG,Earphone Jack,TF Card Slot,dual simcard slot
Internet	WIFI /3G (GPRS &3G network)
Adaptor	DC 2.5 5V/2A
Battery Volume	3.7V/3000mAh
Color	COLORFUL
Weight	0.35 KG
Size	188*108*9.2mm
Package	Color Box
bluetooth	bluetooth 2.0
FM	yes
GPS	yes
Color	White,Black
Package	Color Box
MIC	built-in
Image Format	JPEG/BMP/GIF/PNG/TIFF
Music Format	MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
Video Play Time	3Hours,can be updated according to your demands
Office Software	Support
Video Format	AVI(H.264,DIVX,DIVX,XVID), rm,rmvb, MKV(H.264,DIVX,DIVX,XVID),WMV,MOV,MP4(.H.264,MPEG,DIVX,XVID),DAT(VCD),VOB(DVD),PMP,MPEG,.MPG,, FLV(H.263,H.264),ASF ,TS, TP,3GP,MPG
Languages	Support Various Languages :Chinese,English ,Spanish ,Italian ,French,Portuguese,Rusian,Germany ,Turkey, Japanese, Korean.
