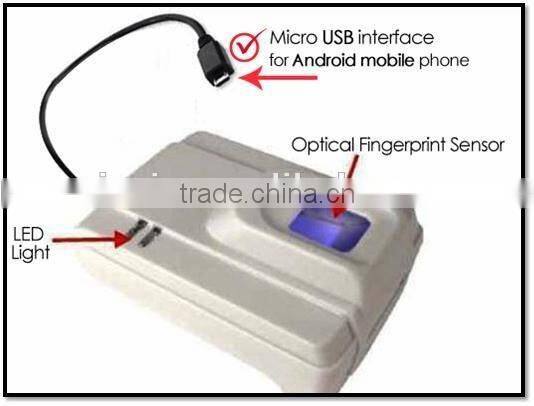

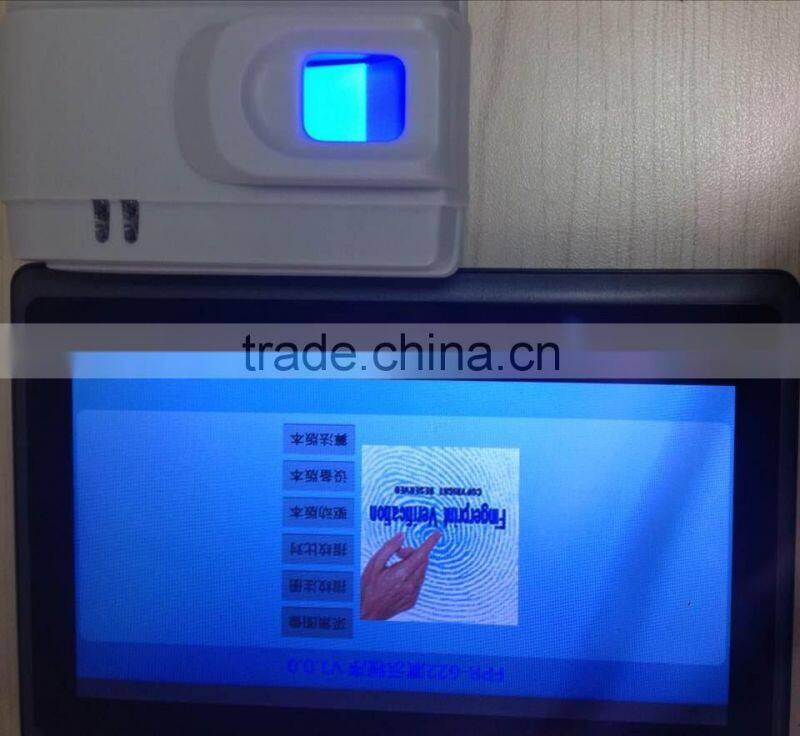

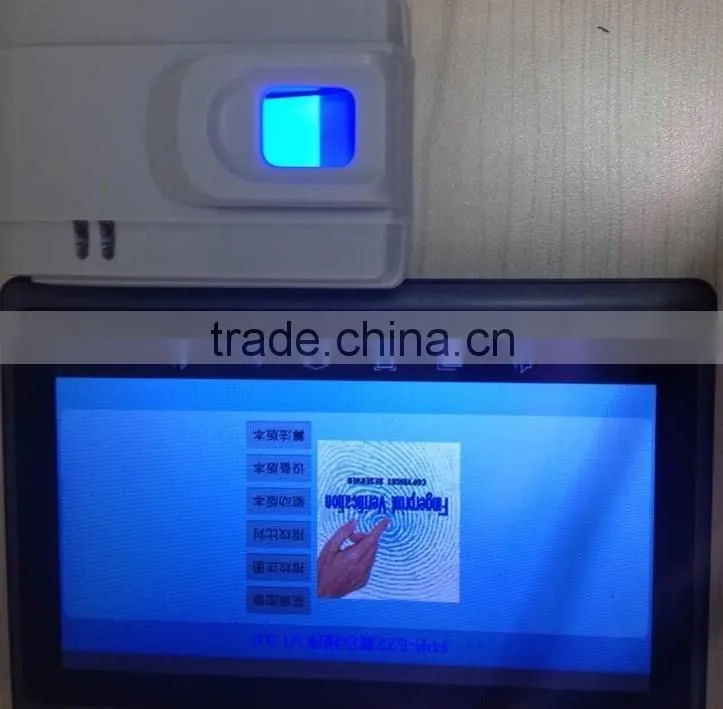

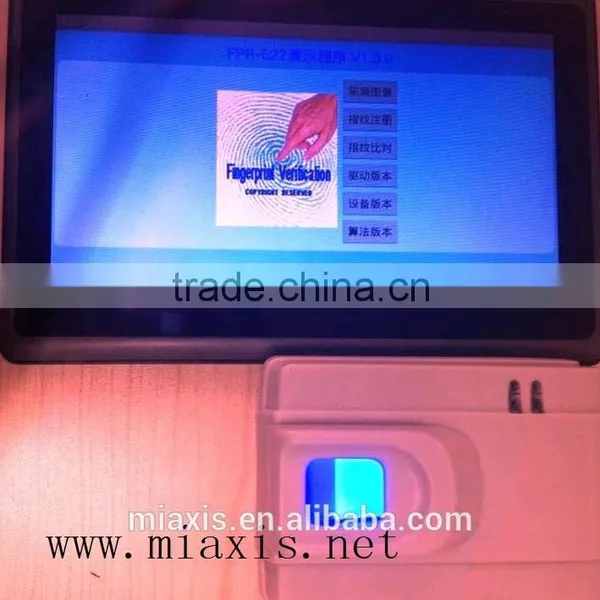

FPT 601game android tablet PC / android smart phone with camera fingerprint scanner FPR622

Specifications

fingerprint scanner with high reliability
ROHS compatible fingerprint scanner
Android tablet PC customized smart phone android

Applicable Scenario

As a biometric identification device, it could be integrated into any system that has identification requirements. For example, bank transaction security system, voter registration system, information security system, online time attendance system and so on.

Comparative advantage

Compared to our competitors, miaxis’s FPR622 has several advantages.

1)       High reliability. FPR62 series product has a history of 5+ years. The accumulated sales volume reaches 300,000+. Very few customers complained to Miaxis. All the accessories ,such as DLL and manuals are mature.

 2)       Best dealer policy. Miaxis is willing to cooperate with strong business partners who will enjoy our price protection policy. Special discount based on purchase volume will not be released to public.



3)         Technical support. Invested by Intel, Miaxis owns his American patent. For any customers that need secondary development, Miaxis is your choice.

Technical specifications

Items	Description
Resolution	500DPI
Fingerprint image enrollment time	< 0.5s
Fingerprint match time	< 0.01s
Security level	5, adjustable
FAR	<0.0001%
FRR	<0.01%
Sensor	Optical fingerprint sensor
Fingerprint verification technology	Miaxis fingerprint verification algorithm(independent intellectual property)
Allowable rotation	360°
Power supply	5V±5%
Communication interface	USB2.0
Working temperature	-15~40
Working humidity	45%RH~85%RH (no dew)
Operation system	Windows2000/XP/Vista,DirectX 8.0 or above
Dimension	100x66x51mm (Can be customized )



Android Tablet PC can be customized.



Screen Information	7 Multi Point Touch Capacitive Screen
Resolution	800*480 px
CPU	Dual core RK3026
GPU	ARM cortex A7
Operation System	Android 4.1
RAM	512MB DDRIII
ROM(Storage)	Built-in 4GB
Extend Card	Support TF card up to 32GB extended
Camera	Behind camera: 0.3MP
	Front camera: 0.3MP
Bluetooth	2.4GHZ-2.4835GHZ         -84dBm
GPS	NO
HDMI	Yes
WIFi	Yes, 802.11 b/g/n
Video	support BlueRay 3D video, AVI/MOV/MP4/RMVB/FLV/MKV
Music	MP3/WMA/WAV/APE/AAC/FLAC/OGG
Ebook	UMD, TXT, PDF, HTML, RTF, FB2
Other Applications	File Manager, OfficeSuite, Google Search,  Browser, Gallery, Clock, Calculator, Calendar, iReader, Email etc
Language	Multi- language support, details in the description Screenshot
Connectivity	1 x Mini USB Port
	1 x TF card Slot
	1 x 3.5mm Earphone Jack
	1 x HDMI Port
	1 x USB 2.0 Port
	1 x DC Jack
Battery	3000 mAh
Work Time	Up to 3-4 hours
Power Device	Adapter Input 100/240V Output 5V-2A 2.5mm
Net Weight	520g
Package including	1 x Tablet PC
	1 x Charger
	1 x Mini USB Cable
	1 x User's Manual
	1 x OTG cable (as Gift)
