MR-500D fingerprint magnetic smart card reader for bank teller device with fingerprint reader

1.Functional Description

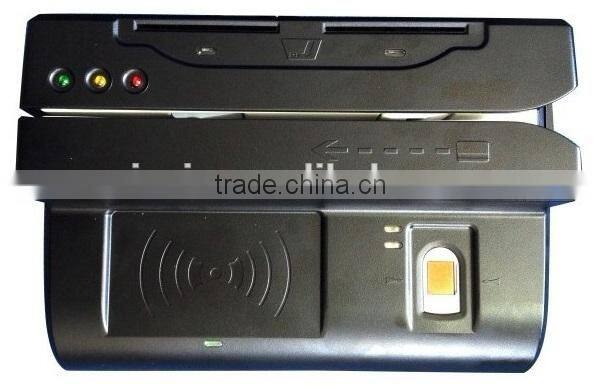

The product MR-500D is a portable fingerprint reader device 5-in-1. The device integrates a semiconductor fingerprint reader, contact IC card reader and contactless IC card reader, magnetic strip card. The product has the following features:

1) Single hardware interface: the hardware interface applies either RS232 interface or USB interface.

2) Strong functionality: the product integrates the semiconductor fingerprint module, contact IC card reader and contactless IC card reader.

3) Easy to use: the device can be integrated easily with fingerprint module, plus contact IC card reader or contactless IC card reader. The drive can be adapt itself and used as plug-in machine.

4) Easy to maintenance: it is possible to be maintained remotely with few instructions.

2. Fingerprint module description

2.1 Functional description

1. The fingerprint module obtains the certification from China Financial Certification Authority and the Ministry of public security.
2. The sensor of fingerprint module is made from capacitor fingerprint reader. It has the functionality to identify living finger.
3. The main parts of fingerprint module follow the industrial standard.
4. The fingerprint module has the function of fingerprint image acquisition, image processing, feature extraction, feature storage and fingerprint matching.
5. The fingerprint module works very stable and consistence with different devices.
6. The fingerprint module deals good with dry finger, we finger, broken finger or dirty finger. The fingerprint matches smoothly in each case.
7. The fingerprint module SDK can be based on Unix, Linux or Windows platforms.
8. The demo software SDK has the details with detailed notes and supplementary explanation.

2.2 Technical specifications

3.The descriptions of contactless IC card reading and writing module

1. Fit the standard of Chinese financial industrial.
2. Fit the standard of PBOC2.0 from Bank of China.
3. The communication distance of contactless IC card: 0 to 10cm.
4. Read and write time <=0.1s.
5. Fit the standard of contactless IC card ISO14443 standard and PBOC2.O from Bank of China.
6. Working temperature: -10 degree to 50 degree
   1. Integrate two types of contact IC card: IC card and SAM card.
   2. Interface: support serial interface and USB interface
   3. Accord with ISO7816 standard.
   4. Accord with EMV standard and PBOC2.0 from Bank of China.
   5. IC card base: 2 of press down type card bases. Easy to use.
   6. Lifetime of IC card base: >=200k times plug in and out.
   7. Magnetic card standard: compatible with IBM, ISO, ANSI standard.
   8. Accord with bank card of Magnetic stripe data format and the use standard
   9. Support high and low density magnetic stripe card and read / write passbook.
   10. Life time of magnetic head >=500k times.
   11. Accord with standard of Auxiliary port expansion box (BP Box)
       1. Support functions of serial strobe instructions, download and customization
       2. Support baud rate: 1200 to 115200.
       3. Support power with serial interface.

4.The description of contact IC card reading and writing module

5.Descriptions of Magnetic Strip Card reader and writer module

6.Specification of serial port expansion module
