Specifications
1.independent IPRpatible interface fined appearance
3.extensive low power consumption and price
4.integrated
Introduciton

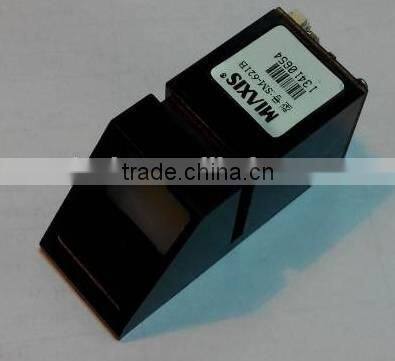

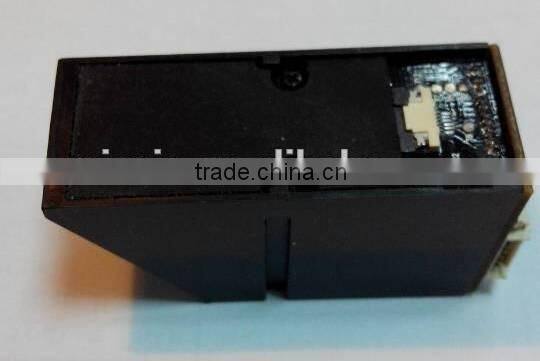

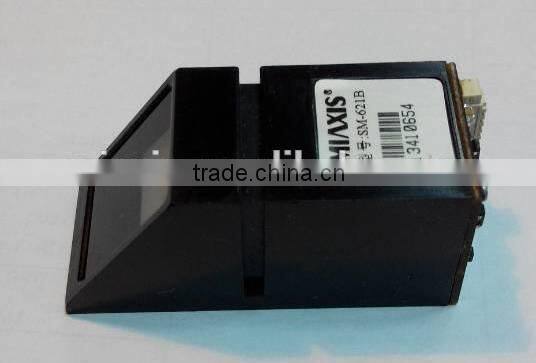

SM-628B, a kind of optical fingerprint identification module with both bright and dark backgrounds is released in 2014 by Zhejiang Miaxis Biometrics Co., Ltd.

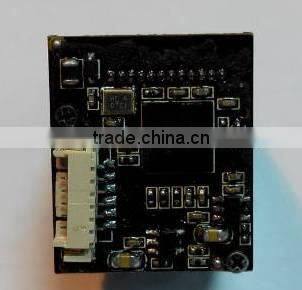

SM-628B has various functions including fingerprint image processing, template extraction, template matching, fingerprint searching, template storage, etc. It adopts optical fingerprint sensor and its hardware consists of low power ARM9 microprocessor, FLASH and other chips. And Compared with the similar fingerprint products, SM-628B owns the following two main features:
Features
- Low power consumption
- Low Price
- The UART interface
- High security, strong extendibility
- Live scan
Parameters
| Item | SM-628B |
| Fingerprint Capacity | 1024/1776 |
| Image Size | 256 Bytes |
| Image Enrollment Time | <0.2s(USB), <1.0s(WiFi) |
| Sensor | Optical Sensor |
| Interface | UART |
| Power Supply | DC 4.5V ~ 7V |
| Search Time(1:256) | <2s |
| FRR | <1.5% |
| FAR | <0.001% |
| Working Current | <80mA |
| Peak Current | <100mA |
| Operating Temperature | -20~60°c |
| Operating Humidity | 20%~90%(RH) |
| Product Size (mm) | 53.0 (W)*20.5 (H) *24.5 (D) |
| Package Size (mm) | 260 (W)*197 (H) *55 (D) |
| Box Size (mm) | 530 (W)*410 (H) *290 (D) / 410(W)*270(H)*290(D) |
| Language | Multi-language |
|
Service We will keep in touch with our custormers' business and offer good suggestions. Any questions and problems can be transfered to us, and the solutions should be offered within 24 hours. Products operations training and new product news are also available to our customers. |
|
Payment We accept the following method for the payment: T/T, L/C. The trade term can be EXW and CIF, while the payment term is 50% of total payment in advance, 50% balance must be paid before shipment.
|
|
Shipment
Sample shipment we usually recommend to send by express. Goods can be sent by sea and air. Neutral package is also available.
|
|
Warranty
All the products we sell have 1 year warranty for FREE. If it has some faulty in manufacturing process, we will exchange it or fix it for FREE. If customers make a mistake on the product and it has some fault, we will try to fix it at the lowest price.
|
