1.1 Specification of tablet PC
The tablet PC can be customized regarding the functional parameters and the physical dimension, etc. here is tablet with 3G.
Descriptions | |
LCD |
7" Capacitive Touch Screen LCD 16:9, 1024*600 pix |
CPU |
dual core MTK8312 1.2GHz Cortex-A7 |
OP System |
ANDROID GOOGLE SYSTEM 4.2.2 |
Memory |
512MB DDR3 Support 5 points touch |
Hard Disk |
4GB FLASH(SUPPORT:8GB16GB optiaonal) |
PHONE CALL |
support 2G &3G network phone call |
Card Reader |
Support TF Card (MAX 32GB) |
3G |
Support 3G call WCDMA |
frequency |
Support GSM 850/900/1800/1900/3G:2100 Optional:850 1900GHZ network |
Dual Camera |
0.3M pixel front,2.0 pixel back |
I/O |
Micro USB OTG,Earphone Jack,TF Card Slot,dual simcard slot |
Internet |
WIFI /3G (GPRS &3G network) |
Adaptor |
DC 2.5 5V/2A |
Battery Volume |
3.7V/3000mAh |
Color |
COLORFUL |
Weight |
0.35 KG |
Size |
188*108*9.2mm |
Package |
Color Box |
bluetooth |
bluetooth 2.0 |
FM |
yes |
GPS |
yes |
Color |
White,Black |
Package |
Color Box |
MIC |
built-in |
Image Format |
JPEG/BMP/GIF/PNG/TIFF |
Music Format |
MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
Video Play Time |
3Hours,can be updated according to your demands |
Office Software |
Support |
Video Format |
AVI(H.264,DIVX,DIVX,XVID), rm,rmvb, MKV(H.264,DIVX,DIVX,XVID),WMV,MOV, MP4(.H.264,MPEG,DIVX,XVID),DAT(VCD), VOB(DVD),PMP,MPEG,.MPG,, FLV(H.263,H.264), ASF ,TS, TP,3GP,MPG |
Languages |
Support Various Languages :Chinese,English ,Spanish ,Italian ,French, Portuguese,Rusian,Germany ,Turkey, Japanese, Korean. |

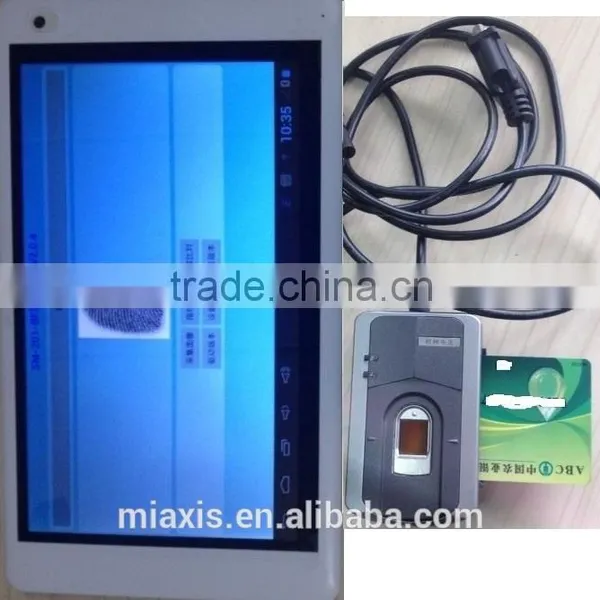

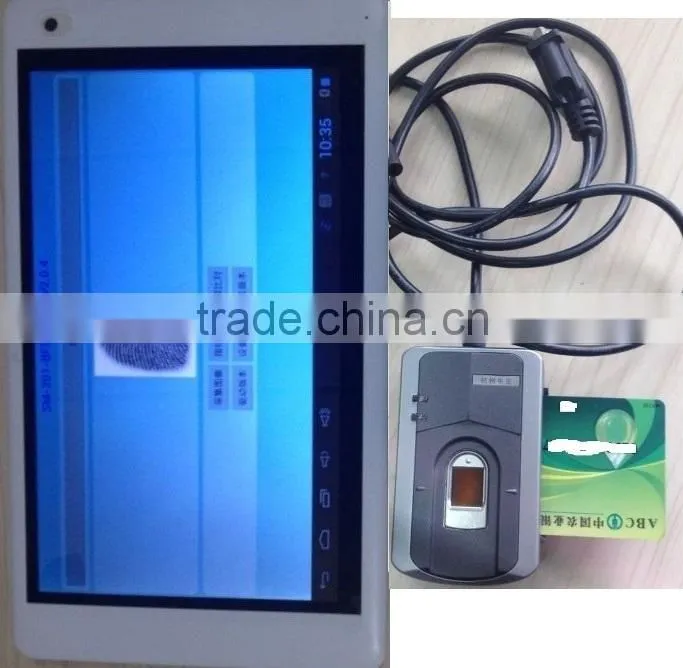

1.2 Fingerprint Reader with contacting IC card for bank teller
The fingerprint reader with contacting IC card for bank teller is developed by Miaxis biometrics based on the requirement from different Chinese banks. This device connects with the computer terminals inside the bank via series interface or USB interface. It replaces the traditional login method (IC card plus password) with the fingerprint plus IC card. The device is safe, reliable and convenient, and enhances the security of the bank system. The device is widely applied inside most Chinese banks. Based on the different requirement, Miaxis Biometrics Co. Ltd can provide different types of solution. The device is also customized under the requirement of the clients. Here are the functions of the fingerprint reader with contacting IC card for bank teller: 1 fingerprint acquisition 2 fingerprint authorization 3 fingerprint registration 4 fingerprint device distribution 5 fingerprint device update 6 high security 7 Extensibility 8 Compatible with original system 9 easy, fast, convenient to operate 10 information recordable and traceable
Product performance
Fingerprint image recording time |
<1.0s |
Fingerprint search time |
<0.3s |
Security level |
5 different levels |
False accept rate |
<0.0001% |
FRR |
<0.1% |
Fingerprint template size |
256bytes |
Power supplier |
5V+-5% |
Interface |
RS 232 (USB under requirement) |
Communication rate |
9600Bps(default), 14400Bps, 19200Bps, 38400Bps, 57600Bps |
Data format |
Data bit: 8Bits.Stop bit: 1 Bit. Parity bit: none |
Working temperature |
-10 degree to 50 degree |
Working humidity |
45%RH 85%RH (no condensation) |
Sensor supported |
Capacity sensor |
Inductance sensor | |
Service life |
1 million times |
