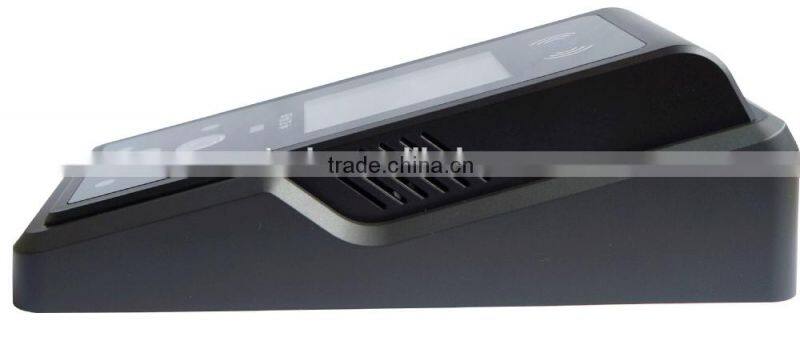

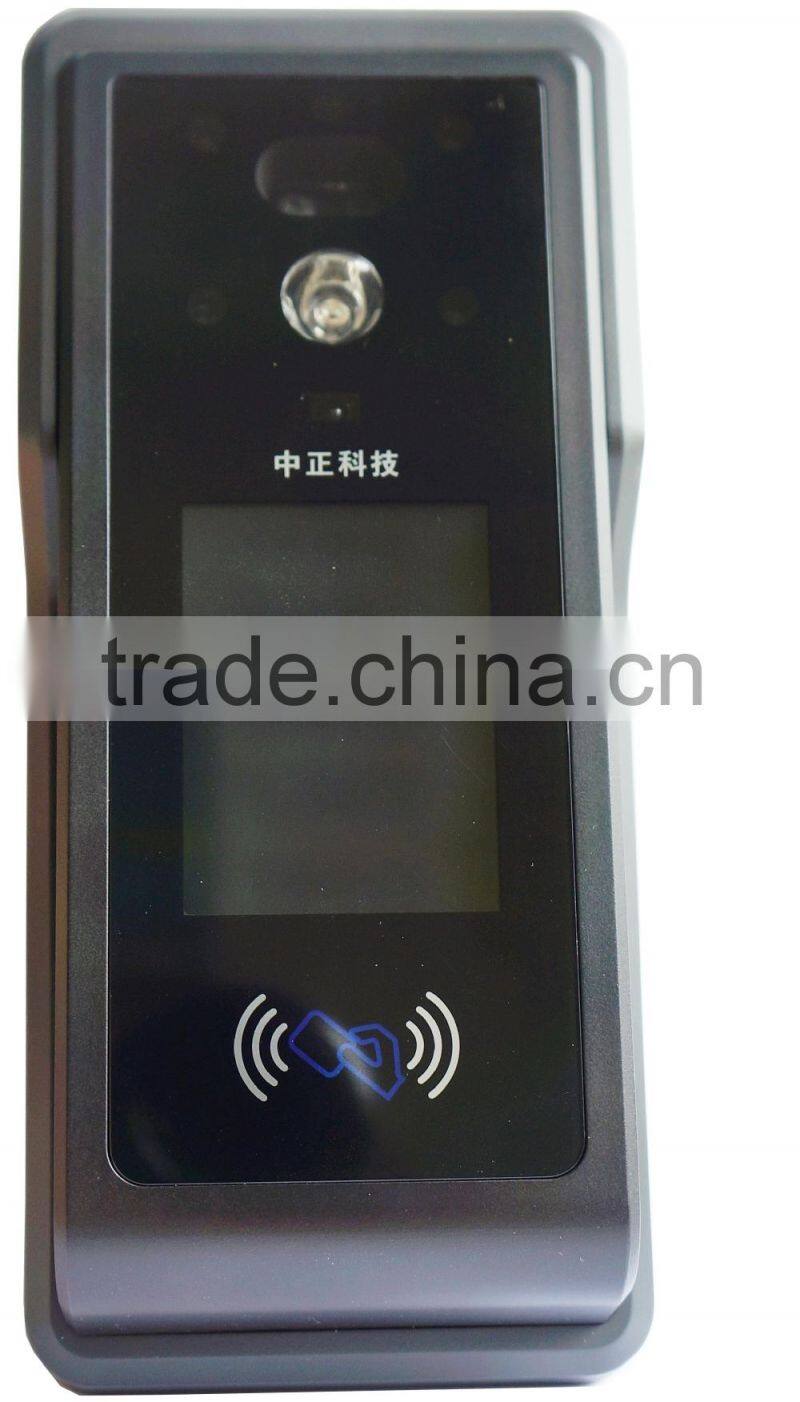

Help CenterMiaxis 2014 New Product Facial Recognition Access Control With USB LAN Interface MX-F300AC Replaces Fingerprint Access Control
Related Products
-
Price of Fingerprint Machines With Fingerprint Reader Module SM628NegotiableMOQ: 50 Units -
SM628B Fingerprint Module for Fingerprint Attendance Hand Attendence Smart Card Door Access ControlUS$ 8 - 188MOQ: 100 Sets
-
FT2BU Biometrics Fingerprint Scanner With Capacitive Semiconductor SensorNegotiableMOQ: 50 Sets
-
SM628B Embedded Fingerprint Reader for Fingerprint /biometric Access Control TCP/IP With Optical Fingerprint Scanner ReaderUS$ 8 - 188MOQ: 60 Sets
-
Fingerprint Time Attendance Machine With FTP602 Android Tablet PC With Bluetooth Fingerprint Reader Sm201US$ 8 - 199MOQ: 50 Sets
Introduciton
MX-F300AC is a new generation multiple biometric identificaiton product for access control and time attendance, newly released by Miaxis Biometrics Co., Ltd.
MX-F300AC is standardly integrated with facial recognition and card reader. Face is captured with high definition cameras(VR or IR) and 1500 faces can be held; Card reader accepts Type A, Type B IC cards that fit the standard of ISO/IEC14443-2 and ID card.
Features
- Latest SmackFace 2.0 face recognition algorithm with high performance
- Provides reader and controller features in one device
- Compatible with multiple communication protocol: TCP/IP,Wi-Fi,RS485
- Multiple recognition modes supported: Face , Face+ID/IC
- Self-studying intelligence as people face changes,Support multiple display and software language
- Huge storage IC/ID Card capacity, USB backup
- No touch identification, Healthy, pro-environment and available for all people
- Fast facial identification in less than 1.1 second -voice prompt,Touch keypad available to operation
- Wiegand output makes system compatible with different access control panel
- Relay output for easy integration with bell ring or electric/magnetic lock system
Parameters
>>Hardware
| Camera | Support two type: VR(Video Recording) or IR(Infrared Recording) |
IC Card (meet the standard of ISO/IEC14443-2) |
Support 13.65MHZ card of Type A (Mifare1) and Type B protocol (2nd Generation Resident ID Card) |
| ID Card | 125KHZ |
| Screen | 2.8'' TFT Color |
| Keypad | Touch Screen |
| LED | Red-Green |
| Wiegand Input | 26/34 bit |
| Wiegand Output | 26/34 bit |
| Exit Button | Yes |
| Door Sensor | Yes |
| Alarm | Yes |
| Lock Drive | Yes |
| Tamper | Yes |
| Communication | TCP/IP, Wi-Fi(optional), RS485 |
| U Disk | Support |
| USB Communication | Optional |
| RTC | Support |
| Working Voltage | DC7.5~13V |
| Working Current | Peak 1.5A |
| Working Humidity | 20%~80% |
| Working Temperature | -10~+60°c |
>>Software
| Users | 10000 |
| Face Capacity | 1500 |
| Record Capacity | 100,000 |
| Language | English |
| Simplified Chinese | |
| Traditional Chinese | |
| Features | Access Control all-in-one machine |
| Auto-switch attendance status | |
| Alarm | |
| Timing bell | |
| T9 input method | |
| Self-service inquiry | |
| SMS | |
| Power Supply | Sleep |
>>Facial Recognition Algorithm
| Version | SmackFace2.0 |
| FAR/FRR | Backend Storage(PC or other terminals) |
| Image Resolution | 0.01%/1% |
| Verification Time | ≤1.1s |
| Intelligent Learning | support |
|
Service We will keep in touch with our custormers' business and offer good suggestions. Any questions and problems can be transfered to us, and the solutions should be offered within 24 hours. Products operations training and new product news are also available to our customers.
|
|
Payment We accept the following method for the payment: T/T, L/C. The trade term can be EXW and CIF, while the payment term is 50% of total payment in advance, 50% balance must be paid before shipment.
|
|
Shipment
Sample shipment we usually recommend to send by express. Goods can be sent by sea and air. Neutral package is also available.
|
|
Warranty
All the products we sell have 1 year warranty for FREE. If it has some faulty in manufacturing process, we will exchange it or fix it for FREE. If customers make a mistake on the product and it has some fault, we will try to fix it at the lowest price.
|
