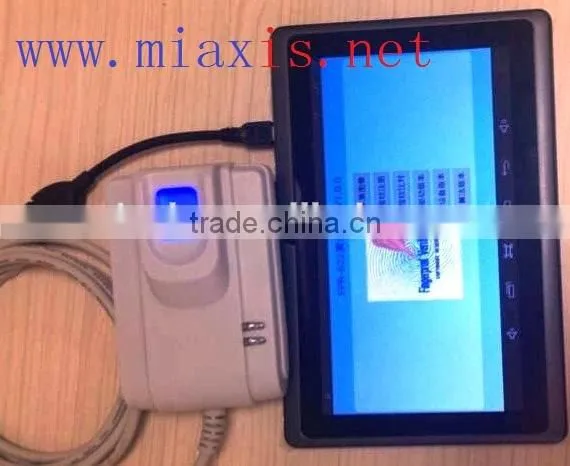

Help CenterPunch Time Card Machine With FTP601 Tablet PC With Optical Fingerprint Reader FPR622
Related Products
-
SM628B Biometric Reader Module for Biometric Fingerprint Attendance System With Fingerprint Module Biometics ScannerUS$ 10 - 160MOQ: 100 Pieces -
Biometric Time Clock of FTP603 Android Tablet PC Time Clock With WIFI Fingerprint Reader Sm201NegotiableMOQ: 50 Sets
-
FTP602 Android 4.0 Super Smart Tablet pc With Bluetooth Fingerprint Scanner Sm201US$ 10 - 200MOQ: 50 Sets
-
Access Control Systems of FTP602 Android Tablet PC With Bluetooth Fingerprint Scanner Sm201NegotiableMOQ: 50 Sets
-
Biometrics Time Attendance With FTP601 Tablet PC With Optical Fingerprint Reader FPR622NegotiableMOQ: 50 Sets
Specifications
android fingerprint time attendance with Tablet PC optical fingerprint reader: bluetooth WIFI 3G camera. Multi-language supports
1.1 Specification of optical fingerprint reader
2 ·Features
3 1. Biometrics identification, real security.
4 2. Compact, lightweight and portable
5 3. High-performance, maintenance-free optical fingerprint sensor
6 4. Resistance to scratches, impact, vibration and electrostatic shock
7 5. Fast and accurate verification
8 6. SDK with examples of Multi-language for development, such as: VB, VB.NET, DELPHI, VC, C#.NET.
9 7. Realize windows secure logon, screen-lock, file encryption and decryption.
10 ·Specifications
Items |
Description |
Resolution |
500DPI |
Fingerprint image enrollment time |
<0.5s |
Fingerprint match time |
<0.01s |
Security level |
5, adjustable |
FAR |
<0.0001% |
FRR |
<0.01% |
Sensor |
Optical fingerprint sensor |
Fingerprint verification technology |
Miaxis fingerprint verification algorithm(independent intellectual property) |
Allowable rotation |
±180° |
Power supply |
5V±5% |
Communication interface |
USB2.0 |
Working temperature |
-15°C~+40°C |
Working humidity |
45%RH~85%RH (no dew) |
Operation system |
Windows2000/XP/Vista,DirectX 8.0 or above |
Dimension |
100x66x51mm (Can be customized ) |
Descriptions | |
LCD |
7" Capacitive Touch Screen LCD 16:9, 1024*600 pix |
CPU |
dual core MTK8312 1.2GHz Cortex-A7 |
OP System |
ANDROID GOOGLE SYSTEM 4.2.2 |
Memory |
512MB DDR3 Support 5 points touch |
Hard Disk |
4GB FLASH(SUPPORT:8GB16GB optiaonal) |
PHONE CALL |
support 2G &3G network phone call |
Card Reader |
Support TF Card (MAX 32GB) |
3G |
Support 3G call WCDMA |
frequency |
Support GSM 850/900/1800/1900/3G:2100 Optional:850 1900GHZ network |
Dual Camera |
0.3M pixel front,2.0 pixel back |
I/O |
Micro USB OTG,Earphone Jack,TF Card Slot,dual simcard slot |
Internet |
WIFI /3G (GPRS &3G network) |
Adaptor |
DC 2.5 5V/2A |
Battery Volume |
3.7V/3000mAh |
Color |
COLORFUL |
Weight |
0.35 KG |
Size |
188*108*9.2mm |
Package |
Color Box |
bluetooth |
bluetooth 2.0 |
FM |
yes |
GPS |
yes |
Color |
White,Black |
Package |
Color Box |
MIC |
built-in |
Image Format |
JPEG/BMP/GIF/PNG/TIFF |
Music Format |
MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
Video Play Time |
3Hours,can be updated according to your demands |
Office Software |
Support |
Video Format |
AVI(H.264,DIVX,DIVX,XVID), rm,rmvb, MKV(H.264,DIVX,DIVX,XVID),WMV,MOV, MP4(.H.264,MPEG,DIVX,XVID),DAT(VCD), VOB(DVD),PMP,MPEG,.MPG,, FLV(H.263,H.264), ASF ,TS, TP,3GP,MPG |
Languages |
Support Various Languages :Chinese,English ,Spanish ,Italian ,French, Portuguese,Rusian,Germany ,Turkey, Japanese, Korean. |
