Waste Heat Steam Boiler Used for Industry

Name: Waste Heat Steam Boiler Used for Industry
Brand: Xingfu
SKU: 116256897
Availability: InStock

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Natural Circulation

Usage:

Industrial

Qingdao Xingfu Boiler Thermoelectric Devices Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Natural Circulation

Usage Industrial

Structure Other, Waste heat Boiler

Pressure Low Pressure

Style Horizontal

Fuel Waste Heat

Place of Origin Shandong, China

Brand Name Xingfu

Model Number Xingfu boiler series

Output Steam

Dimension(L*W*H) Cylinder

Weight Depend on Boiler Type

Certification CE, ISO14001,SGS,ASME

After-sales Service Provided Engineers available to service machinery overseas

Product Description

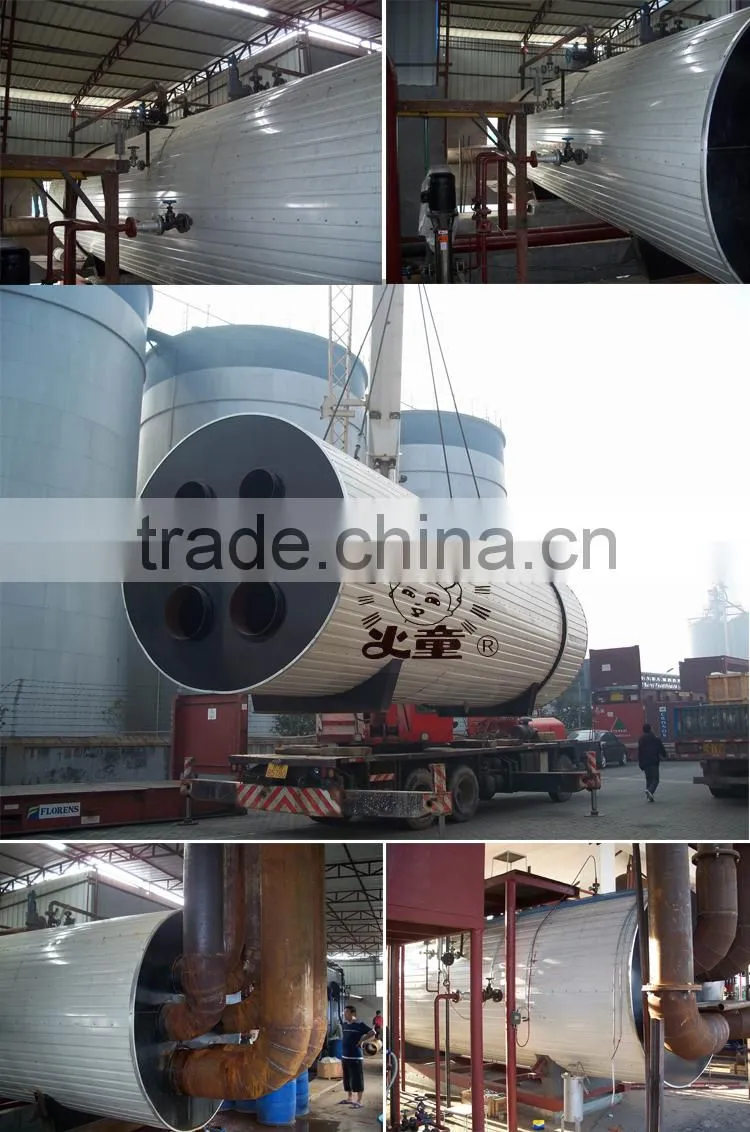

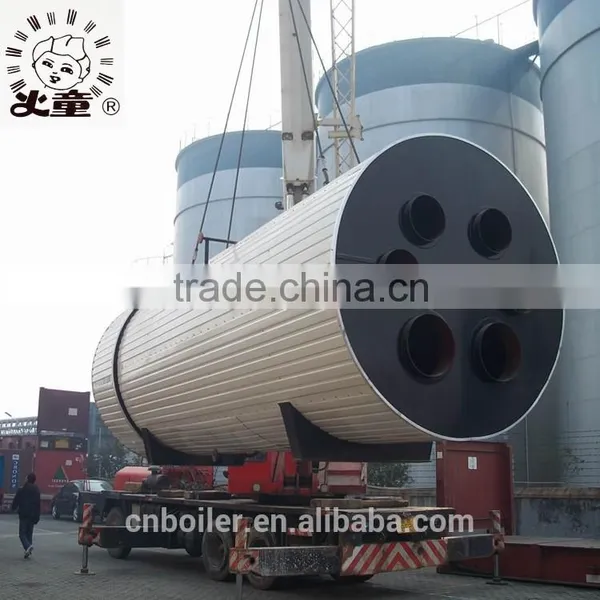

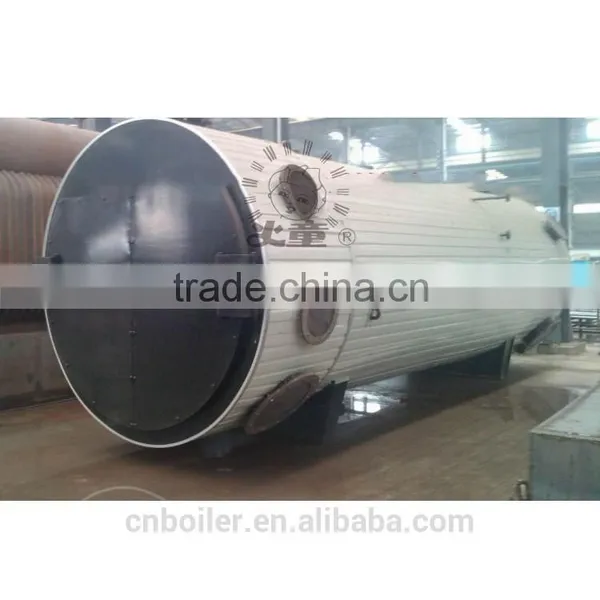

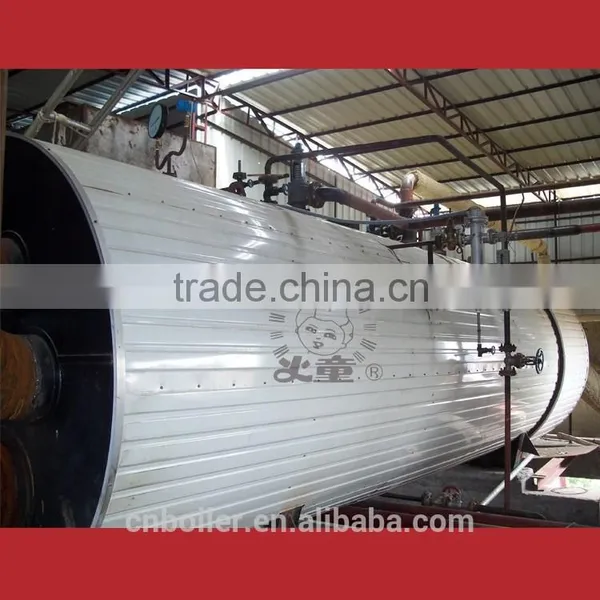

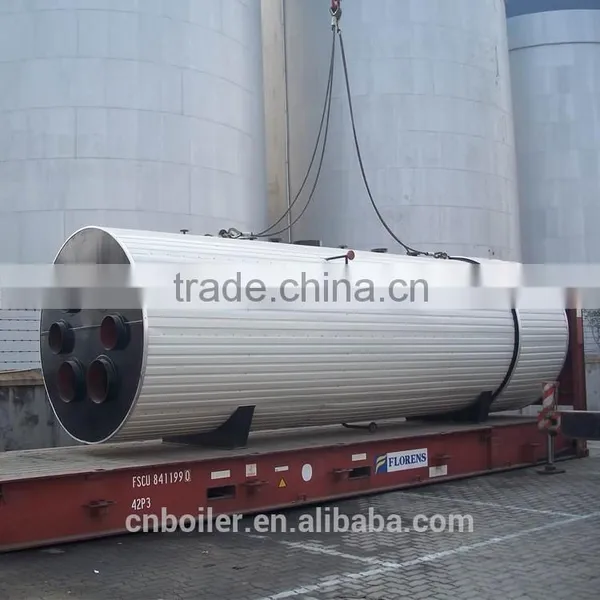

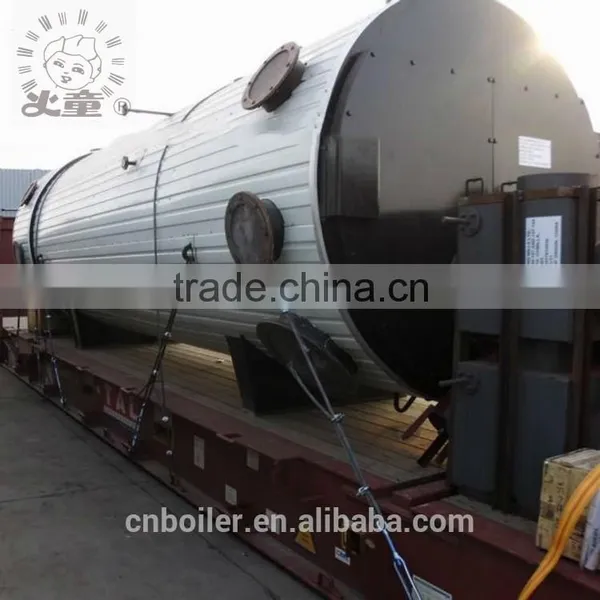

Waste Heat Boiler

1. The steam shall be produced by waste heat of production process, resulting in energy saving and

increasing benefit.

2. The waste heat boiler shall feature the following advantages: compact structure, no pollution, small

system resistance, simple operation, safty and reliability, and full waste heat recovery.

3. The design of waste heat boilers shall be in accordance with users' process parameter.

Item/Boiler type	Q16-480 -2-1.0	Q33-490 -4-1.0	Q48-490 -6-1.0	Q50-500 -6-2.5/350	Q85-500- 10-2.5/350
Rated output (t/h)	2	4	6	6	10
Rated working pressure (Mpa)	1	1	1	2.5	2.5
Flue gas flow(peak) Nm3/h	16000	33000	48000	50000	85000
Inlet flue gas temperature°C	480	490	490	500	500
Heated surface of boiler proper (m²)	188	345	572	332	532
Heated surface of Superheater (m²)	——	——	——	18	26
Heated surface of Economizer (m²)	——	——	——	45	75
Maximum weight of transportation cargo (t)	8.9	15.2	23.5	Assembly	Assembly
System resistance (Pa)	< 1500	< 1500	< 1500	< 1000	< 1000
Scope of application	Power industry	Power industry	Power industry	Chemical industry	Chemical industry
