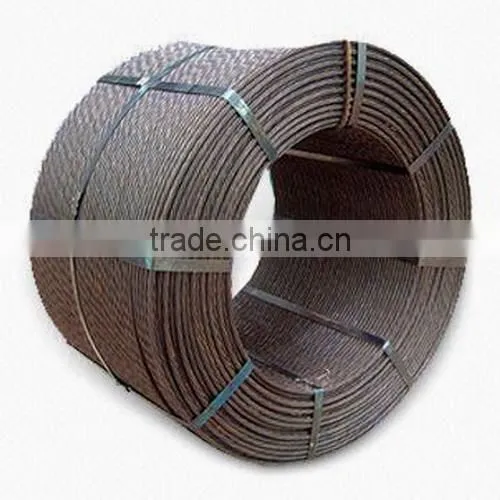

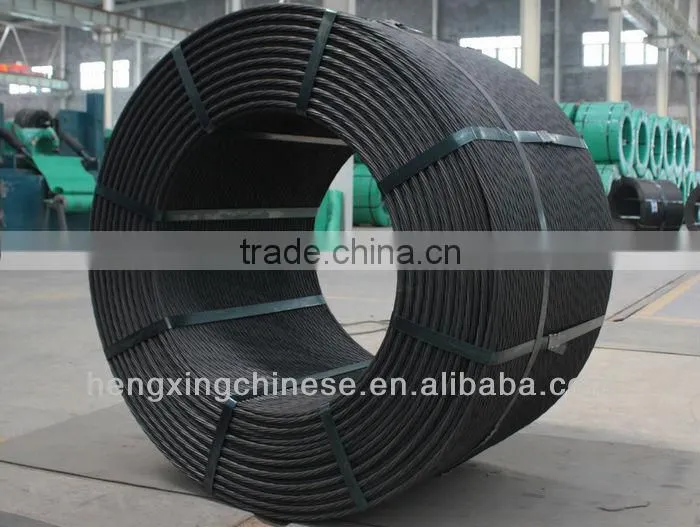

Ultra High Tensile PC Steel Strand Cable
US$ 700 - 1,000
MOQ: 20 Tons
Key Specifications
Get Latest Price
Steel Grade:
high carbon steel, 77B/82B
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:
9.0-18mm
Payment & Shipping
Payment Methods:
Port of Shipment:
chinese main tons
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PC Steel Cable in ViaductUS$ 700 - 1,000MOQ: 20 Tons -
PC Steel Cable Used for Concrete ConstructionUS$ 700 - 1,000MOQ: 20 Tons
-
High Tension Low Relaxation Prestressed Concrete Steel Strand ASTM A416 Grade 270US$ 580 - 620MOQ: 25 Tons
-
Low Relaxation Prestressed Steel Strand for Concrete/ PC StrandNegotiableMOQ: 1 Ton
-
Prestressed Concrete Steel StrandsUS$ 550 - 650MOQ: 50 Metric Tons
Steel Grade
high carbon steel, 77B/82B
Standard
AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge
9.0-18mm
Place of Origin
Henan, China
Type
Drawn Wire
Application
Construction
Alloy Or Not
Non-alloy
Special Use
Cold Heading Steel
Model Number
PC steel cable
Brand Name
Hengxing
PC steel cable with high tensils used for concrete construction
BS 5896
Grade |
Nominal Dia. (mm) |
Tolerance (mm) |
Cross Section Area (Sn/mm2) |
Re. Mass per 1m (g/m) |
Tensile Strength not less than (Rm/MPa) |
Minimum Breaking Load (Fm/KN) |
Min. Load at 1% Extension (Fp0.2/KN) |
(L0≥500mm) AgtElongation Max Load not less than (%) |
The Relaxation at 1000 Hours (r/%) |
Standard 7wire |
9.3 |
0.3 -0.15 |
52 |
408 |
1770 |
92 |
81 |
3.5 |
2.5 |
11.0 |
71 |
557 |
1770 |
125 |
110 |
||||
12.5 |
0.4 -0.2 |
93 |
730 |
1770 |
164 |
114 |
|||
15.2 |
139 |
1090 |
1670 |
232 |
204 |
||||
Super 7Wire |
9.6 |
0.3 -0.15 |
55 |
432 |
1860 |
102 |
90 |
||
11.3 |
75 |
590 |
1860 |
139 |
122 |
||||
12.9 |
0.4 -0.2 |
100 |
785 |
1860 |
186 |
163 |
|||
15.7 |
150 |
1180 |
1770 |
265 |
233 |

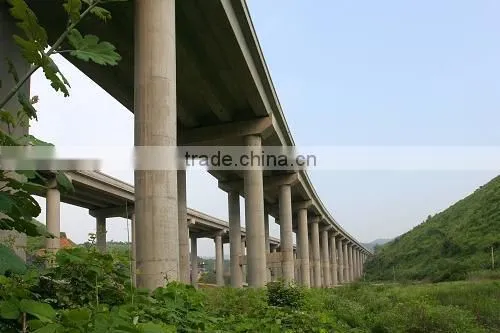

Application

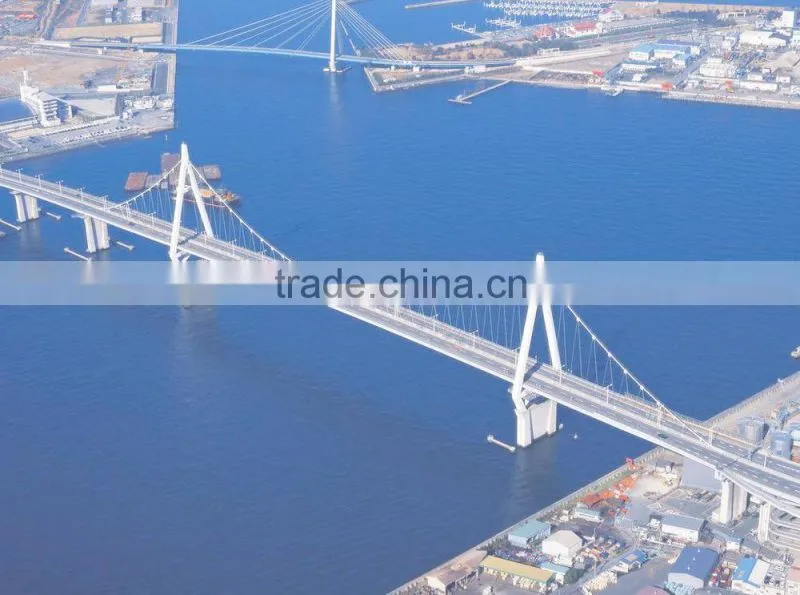

bridge

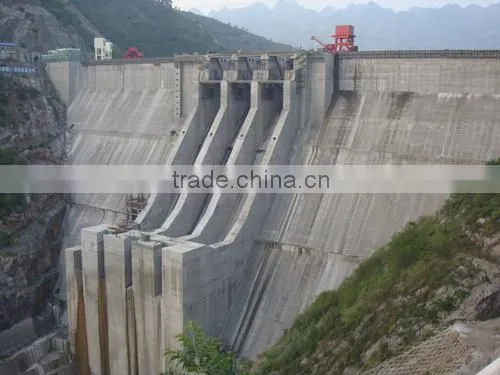

Dam
