Specifications
high tensile hydraulic hose wire 0.30mm:1.high quality;
2.factory price;

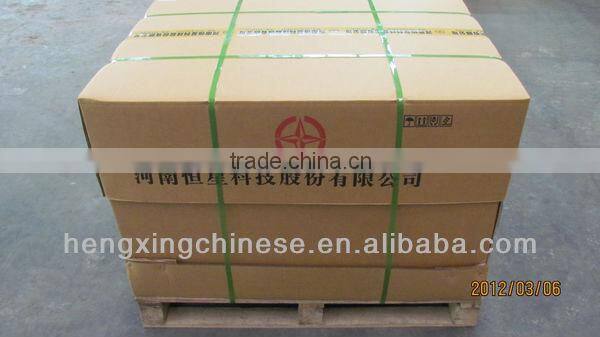

3.export standard packing;
4.brass coated.
High tensile strength hydraulic hose wire 0.30mm
Description:
The high-pressure hose wire is a kind of steel wire products of high strength, whose surface is plated with a uniform layer of brass alloy. It is used for the reinforcement of the rubber tube by the way of weaving or winding, and is mainly applied in the hydraulic oil tube. The high-pressure rubber tubes can resist high temperature, high pressure, high impact according to different applications, and can be applied in specific occasions such as machinery, aviation, automotive, marine, oil drilling and so on.
Raw materials:
The high-quality wire rod especially for steel cords produced by Japan KOBE, NIPPON and Germany SAARSTAHL is chosen.
Advantages:
Hengxing is specialized in developing and producing high-pressure hose wires, which have various specifications and long service life, and resist high temperature, high pressure and high impact. It has an excellent performance is all aspects.
Nominal diameter |
Tolerance |
Tensile strength |
Torsions (L=100xø) |
Reverse bends (r=2.5mm) |
mm |
mm |
(Mpa,N/mm2) |
Min |
Min |
|
0.2
|
±0.010 |
2150~2450 |
70 |
125 |
2450~2750 |
70 |
|||
2750~3050 |
65 |
|||
3050~3350 |
60 |
|||
|
0.25
|
±0.010
|
2150~2450 |
70 |
125 |
2450~2750 |
70 |
125 |
||
2750~3050 |
65 |
105 |
||
3050~3350 |
60 |
75 |
||
|
0.3
|
±0.010 |
2150~2450 |
65 |
105 |
2450~2750 |
60 |
95 |
||
2750~3050 |
60 |
85 |
||
3050~3350 |
50 |
60 |
||
|
0.35
|
±0.015 |
2150~2450 |
65 |
60 |
2450~2750 |
60 |
60 |
||
2750~3050 |
60 |
55 |
||
3050~3350 |
50 |
50 |
||
|
0.4
|
±0.015 |
2150~2750 |
60 |
55 |
2450~2750 |
60 |
55 |
||
2750~3050 |
60 |
50 |
||
3050~3350 |
50 |
45 |
||
|
0.42
|
±0.015 |
2150 ~2450 |
60 |
50 |
2450 ~ 2750 |
60 |
50 |
||
2750 ~3050 |
50 |
45 |
||
|
0.46
|
±0.015 |
2150~2450 |
60 |
45 |
2450~2750 |
60 |
45 |
||
2750~3050 |
50 |
40 |
||
|
0.5
|
±0.015 |
2150~2450 |
60 |
40 |
2450~2750 |
60 |
35 |
||
2750~3050 |
50 |
30 |

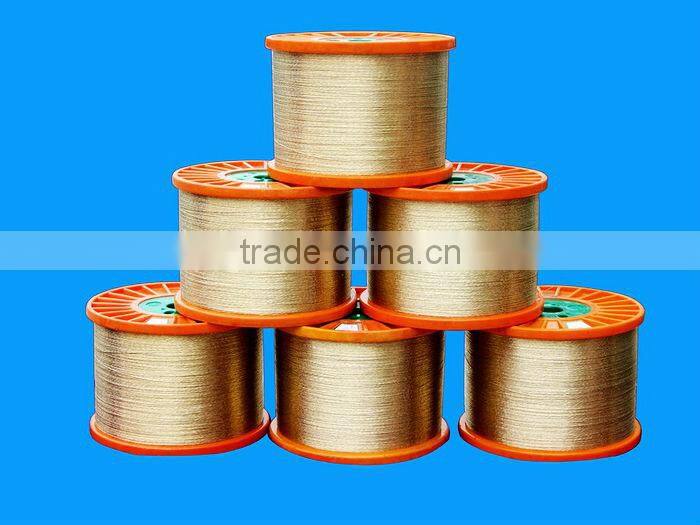

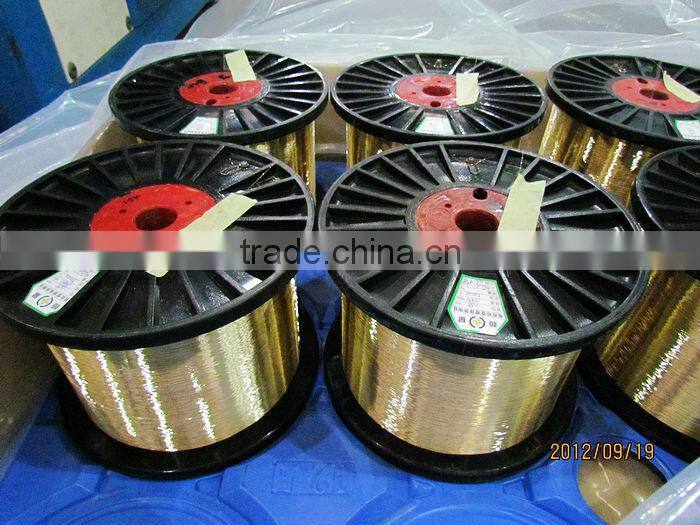

Pictures:

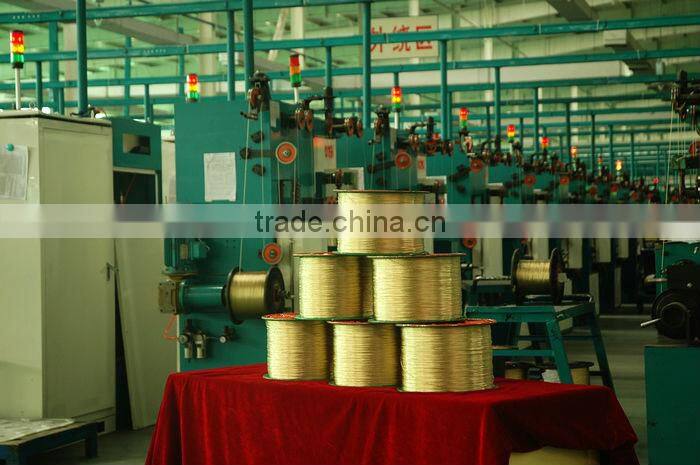

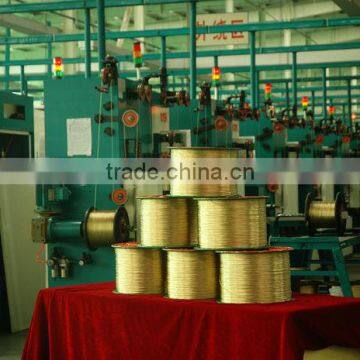

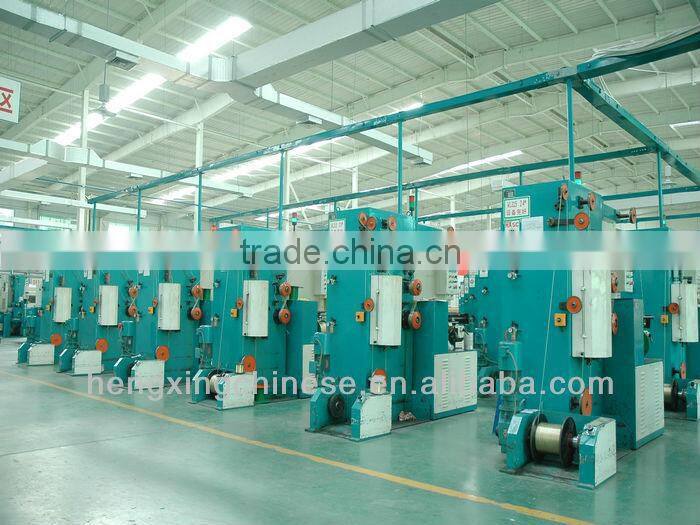

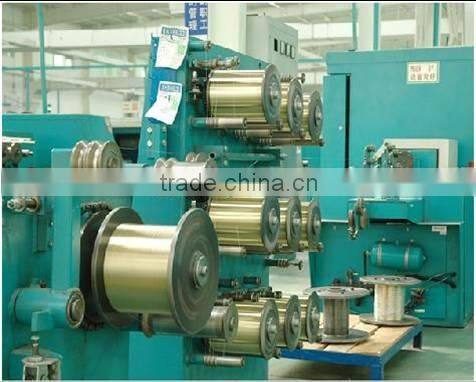

Factory:
