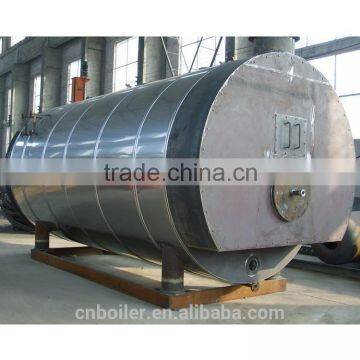

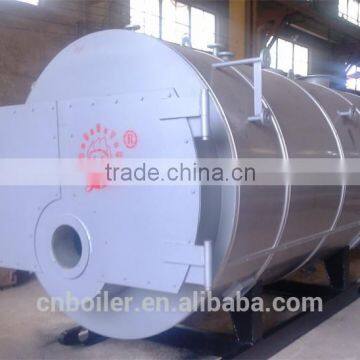

8 Ton Fully Automatic Diesel and Natural Gas Fired Steam Boiler
WNS Series Industrial Diesel and Natural Gas fired steam boiler
1. Automatic operation, safety, and reliability shall characterize the boiler provided with various
control,protection device, and automatic control of steam pressure, water level and combustion
system. The hot water boiler shall use programe control, and temperature and time control featuring
the following advantages: easy to use, simple to maintain, as well as saving the manpower and
material resources.
2. abundantly, obvious effect of energy-saving, and meeting the environmental requirements.
3. The application of totally enclosed combustion shall make the boiler room to be tasteless
,noiseless,unpolluted, beautifull, and clean.
4. Compact structure, small floor area, and simple installation shall characterize the boiler.
WNS Diesel Fired Steam Generator | |||||||||||||||
|
Model Item |
WNS0.5-1.0 |
WN1 -1.0 |
WN2 -1.25 |
WN3 -1.25 |
WN4 -1.25 |
WN6 -1.25 |
WN8 -1.25 |
WN10-1.25 |
WN15-1.25 |
WNS20-1.25 |
|||||
|
Rated evaporation capacity |
T/h |
0.5 |
1 |
2 |
3 |
4 |
6 |
8 |
10 |
15 |
20 |
||||
|
Rated steam pressure |
Mpa |
1 |
1 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
||||
|
Rated steam temperature |
℃ |
184 |
184 |
194 |
194 |
194 |
194 |
194 |
194 |
194 |
194 |
||||
|
Feed water temperature |
℃ |
20 |
|||||||||||||
|
Designed heat efficiency |
% |
90 |
90 |
90 |
90 | 90 |
90 |
90 |
90 |
90 |
90 |
||||
|
Primary steam valve seat |
Mm |
DN40 |
DN65 |
DN65 |
DN80 |
DN100 |
DN150 |
DN150 |
DN150 |
DN200 |
DN200 |
||||
|
Diameter of feed water pipe |
Mm |
DN25 |
DN25 |
DN40 |
DN40 |
DN40 |
DN50 |
DN50 |
DN50 |
DN65 |
DN80 |
||||
Power distribution |
KW |
0.55 |
1.11 |
2.2 |
7.5 |
7.5 |
12 |
37 |
37 |
45 |
55 |
||||
Fuel |
Diesel |
Kg/h |
37 |
73 |
145 |
198 |
270 |
392 |
535 |
700 |
989 |
1318 |
|||
Heavy oil |
Kg/h |
40 |
76 |
157 |
220 |
304 |
425 |
570 |
744 |
1002 |
1336 |
||||
Town gas |
Nm³/h |
88 |
170 |
350 |
496 |
675 |
1006 |
1266 |
1654 |
2288 |
3050 |
||||
Natural gas |
Nm³/h |
43 |
85 |
169 |
251 |
334 |
385 |
633 |
827 |
1043 |
1390 |
||||
Dimensions |
L |
Mm |
2600 |
3500 |
4000 |
4800 |
4900 |
7150 |
7950 |
8900 |
9300 |
9600 |
|||
W |
Mm |
1600 |
1900 |
2450 |
2500 |
2500 |
3300 |
3300 |
3370 |
3300 |
3800 |
||||
H |
Mm |
1500 |
1900 |
2500 |
2600 |
2700 |
4000 |
4100 |
4300 |
4500 |
4800 |
||||
|
Maximum weight for shipment |
T |
2.6 |
3.9 |
6.7 |
8.5 |
10 |
15 |
21 |
22.3 |
32.6 |
37.8 |
||||
Q1 Are you manufaturer, We want the low price and professional service.
A: Surely Xingfu Boiler is the manufacturer.
Factory : Xingfu Boiler Thermoelectric Devices Co., Ltd. Add: No.5, Gaoping Road, Pingdu Liaolan Industrial Park, Qingdao, China.
Export department: Qingdao Honest International Trading Co., Ltd Add: Rm2714, Wanda Building, No.33 Lianyungang Road, Qingdao, China.
Here you can get what you want.
Q2 How do you control the product quality?
A: Xingfu Boiler started as a state owned enterprise in 1981. This gave us the chance to grow fast. With the 30 years' experience, technology and innovation, Xingfu Boiler has been the leading company in Chinese boiler market. Certificate of ISO9001, ISO
14001, SGS, CE and ASME are passed.
Q3 What's the delivery time.
A:15 days for 0.2T--6T steam boiler and 0.35Mw--5.6Mw hot water boiler. 8T-20T steam boiler, 7.0Mw--29Mw hot water boiler and thermal oil boiler. 60 days for 8,10
and 15T waste tyre/plastic pyrolysis plant.
Remark: Unconventional product based on the design time.
Q4 What kind of payment terms do you accept.
A: 30% T/T in advance, 70% T/T before shipment. Need other payment terms, we can communicte.
Q5 Is factory visit available?
A: Welcome to visit our factory at any time. inform us your schedule. We arrange all bus
iness for you.
Q6 Which countries have your boiler/ pyrolysis been exported to?
A:Till now. Our products have been exported to Europen including Spain, Netherlands, Greece, Bulgaria, Turkey, Denmark, Russia and Yugoslavia; Asian including India, Pakistan, Sri Lanka, Malaysia, the Philippines and Mongolia; South America including Chile and Brazil; Africa including South Africa, Egypt and Saudi Arabia.
