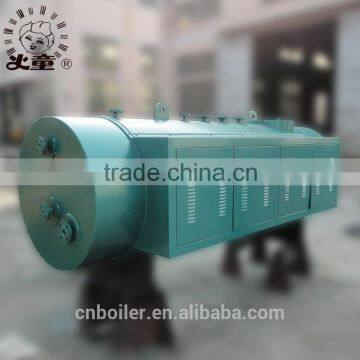

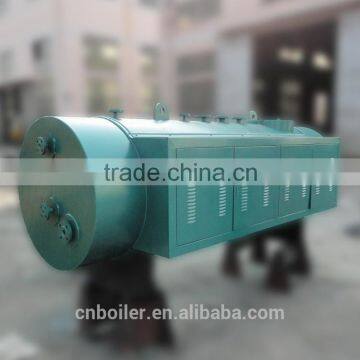

Fully Automatic Industrial Electric Boiler, Electric Water Boiler

FOB Price

US$ 10,000 - 20,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Natural Circulation, Industrial Electric Boiler
Usage	Industrial	Structure	Other, Vertical
Pressure	Low Pressure	Style	Vertical
Fuel	Other, Electric	Place of Origin	Shandong, China
Brand Name	Xingfu	Model Number	ZDR Series Electric Boiler
Output	Hot Water	Dimension(LWH)	Depend on the Boiler Type
Weight	1-3T	Certification	ISO14001,CE,SGS and ASME
After-sales Service Provided	Engineers available to service machinery overseas

Specification of Electric Boiler

Electric Steam Generator
	Rated Evaporation T/H	Rated Steam Pressure Mpa	Rated Steam Temp. ℃	Feed Water Temp ℃	Power of Single Electric Heater Tube Kw	Rated Incoming Current A	Thermal Efficiency %	Test Hydraulic Pressure Mpa	Max Transportation Weight T	Max Transportation Dimension (LWH)Mm
ZDRQ0.5	0.5	0.7	170	20	12	548	95	1.05	1.5	3170×1200 ×1312
ZDRQ1.0	1.0	0.7	170	20	12	1095	95	1.05	2.6	3620×1550 ×2072
ZDRQ2.0	2.0	0.7	170	20	12	1642	95	1.05	3.6	4850×1730 ×1662
Pressure-Bearing Electric Hot Water Boiler
	Rated Thermal Power Kw	Rated outlet Water Pressure Mpa	Rated Outlet Water Temp ℃	Rated returned Water Temp ℃	Power of Single Electric Heater Tube Kw	Rated Incoming Current A	Thermal Efficiency %	Test Hydraulic Pressure Mpa	Max Transportation Weight T	Max Transportation Dimension (LWH)Mm
ZDR0.36	360	0.7	95	70	12	547	95	1.05	0.997	2090×1150 ×1222
ZDR0.45	450	0.7	95	70	12	683	95	1.05	1.2	2090×1150 ×1222
ZDR0.72	720	0.7	95	70	12	1095	95	1.05	2.6	3620×1550 ×1472
ZDR1.44	1440	0.7	95	70	12	1642	95	1.05	2.771	4850×1730 ×1662
