Horizontal Gas Fired Conducting Oil Boiler

FOB Price

US$ 77000.00 - 80000.00 / Set

1 Set(Min. Order)

Port Qingdao China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Condition	New		Type	Other, Natural circulation
Usage	Industrial		Structure	Other, Thermal oil tube
Pressure	Other, Low pressure		Style	Horizontal
Fuel	Gas-fired		Place of Origin	Shandong, China
Brand Name	Huotong		Model Number	YY(Q)L,YY(Q)W
Output	Other, Thermal heating		Dimension(LWH)	YY(Q)2100: 1978mm(D)x4580mm(H)
Weight	12T		Certification	SGS,ASME
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

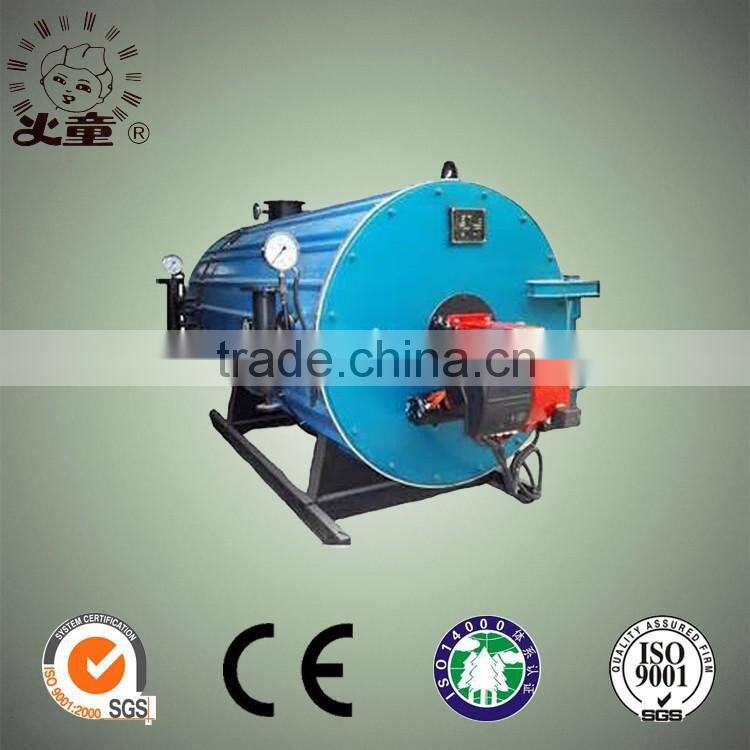

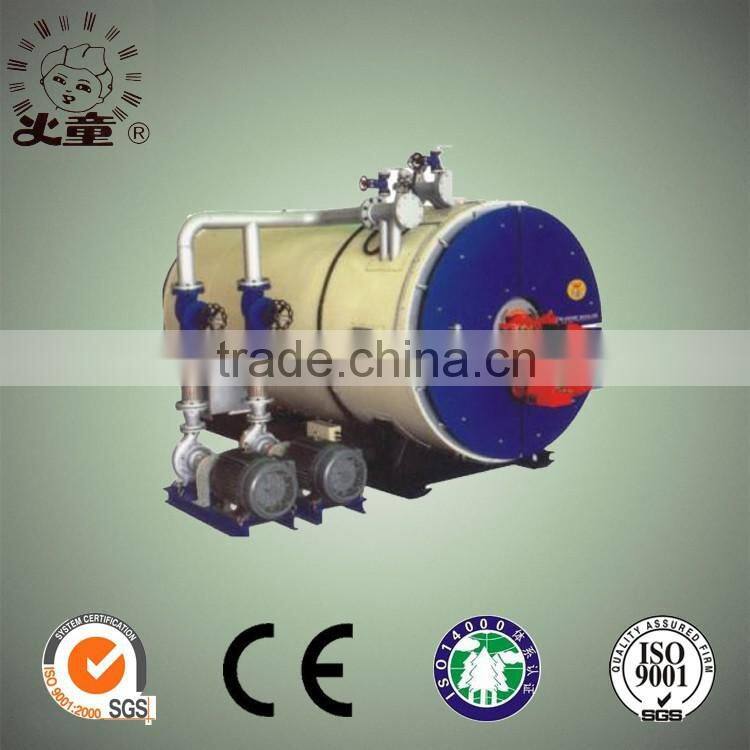

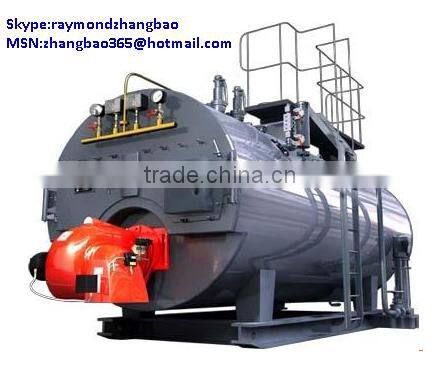

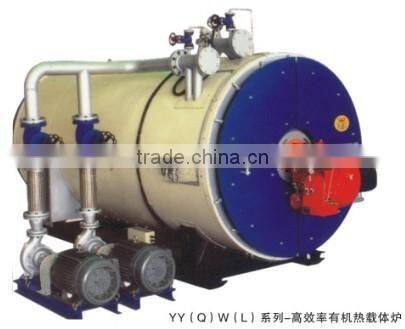

Horizontal gas fired conducting oil boiler

Product features:

1. Higher working temperature shall be obtained under lower operating pressure.

2. Steady heating and accurate temperature adjustment shall be performed.

3. Under each grade loading, the thermal efficiency shall remain in a high level.

4. The boiler shall save power, water, as well as investment.

Item/Model			YY(Q)0.21	YY(Q)0.35	YY(Q)0.70	YY(Q)1.05	YY(Q)1.4	YY(Q)1.6	YY(Q)2.1	YY(Q)2.8	YY(Q)4.2
Thermal Power		MW	0.21	0.35	0.70	1.05	1.4	1.6	2.1	2.8	4.2
Pressure		Mpa	0.7	0.7	0.7	0.7	1.0	1.0	1.0	1.0	1.0
Feed oil Temp.		C	300
Back oil Temp.		C	270
Efficiency		%	79	79	79	80	80	80	81	81	81
Oil flow		m3/h	10	16	31	46	62	71	92	124	184
Fuel consumption	Light oil	Kg/h	20	33	65	96	130	148	190	256	378
	Heavy oil	Kg/h	22	35	70	105	140	160	210	280	410
	Town gas	Nm3/h	50	83	166	248	330	377	496	660	980
	Natural gas	Nm3/h	25	42	83	124	165	189	248	330	490
Power		Kw	0.25	0.55	1.1	1.1	2.2	2.2	7.5	7.5	11
Oil Inlet diameter		Mm	DN40	DN80	DN80	DN100	DN125	DN125	DN150	DN150	DN200
Oil Outlet diameter		Mm	DN40	DN80	DN80	DN100	DN125	DN125	DN150	DN150	DN200
Chimney		mm	Ø200	Ø250	Ø300	Ø350	Ø350	Ø350	Ø400	Ø500	Ø600
Dimension	L	mm	1032	1062	1240	1510	2860	3220	3460	3950	4660
	W	mm	Vertical	Vertical	Vertical	Vertical	1660	1620	1830	2000	2380
	H	mm	1844	1960	2405	2720	2244	2262	2390	2560	2850
Max Weight		kg	798	1050	2200	2820	3350	3672	4904	6108	8309

Item/Model			YY(Q) w-350	YY(Q) w-460	YY(Q) w-580	YY(Q) w-700	YY(Q) w-930	YY(Q) w-1200	YY(Q) w-1400	YY(Q) w-1750	YY(Q) w-2100	YY(Q) w-2350	YY(Q) w-2950	YY(Q) w-3500	YY(Q) w-4100	YY(Q) w-4650
Thermal Power		MW	350	460	580	700	1000	1200	1400	1750	2100	2350	2950	3500	4100	4650
Thermal power(Kcal/h)		10⁴	30	40	50	60	86	100	120	150	180	200	250	300	350	400
Efficiency		%	85
Fuel consumption	Light oil	Kg/h	35	46	58	70	95	121	131	176	212	236	297	352	412	468
	Natural gas	Nm3/h	42	56	70	85	114	147	159	213	257	286	360	427	500	567
	Town gas	Nm3/h	90	119	149	181	242	312	338	453	546	608	765	907	1062	1205
Circulating Water pump	Flow	M3/h	20	28	34	40	43	50	75	100	110	120	160	200	240	260
	Lift	M	40	45	45	50	50	50	55	53	54	55	60	60	60	65
	power	Kw	4	4	7.5	7.5	15	15	22	30	30	37	45	55	75	75
Oil Outlet diameter		Mm	DN38	DN38	DN51	DN51	DN89	DN100	DN125	DN125	DN150	DN150	DN150	DN200	DN200	DN200
Chimney	Ø	mm	Ø270	Ø250	Ø300	Ø300	Ø450	Ø500	Ø550	Ø600	Ø650	Ø700	Ø750	Ø800	Ø850	Ø900
Chimney	H	mm	8	8	8	8	10	10	10	12	12	12	15	15	15	15
Dimension	Ø	mm	1250	1250	1350	1350	1548	1795	1770	1890	1978	2042	2000	2090	2210	2290
Dimension	H	mm	2300	2400	2500	2600	3090	3260	3750	3850	4580	4705	2000	2090	2210	2290
Max Weight		kg	3300	3400	3700	4000	5500	6300	8500	10600	12000	12800	16800	20000	24800	29100
