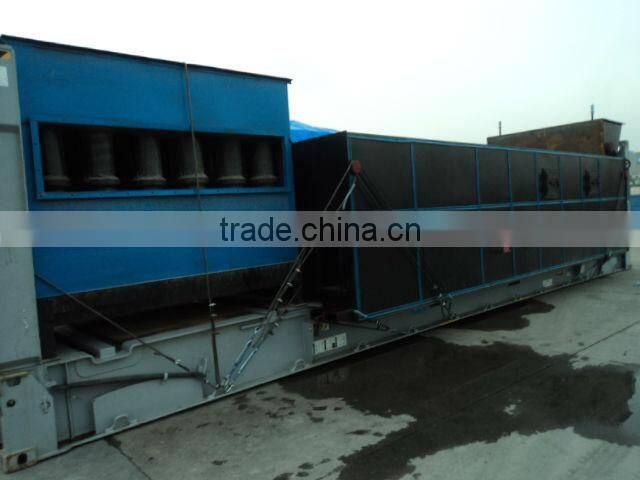

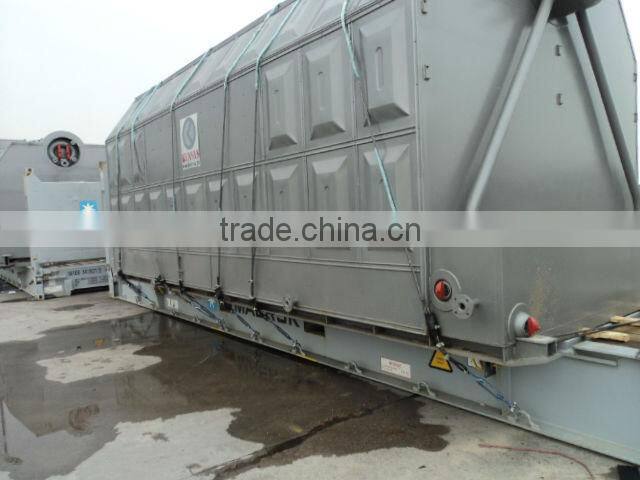

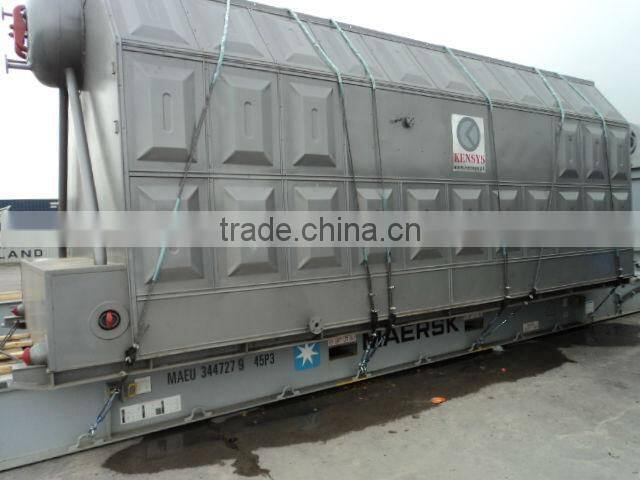

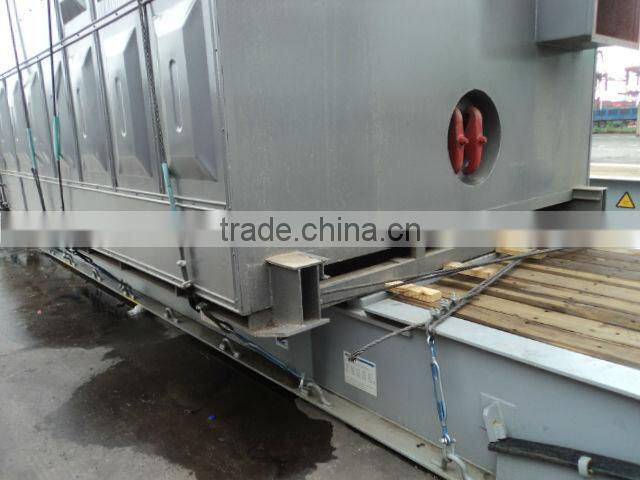

Chain grate double drums coal fired steam boiler
1.The boiler shall adopt double drum,monolayer arrangement,compact structure,as well as large heating surfaces which are more 10% than those of same kinds of products,featuring the following advantages such as sufficient output,safe and reliable operation,short construction period,low installation cost ect.
2.The design of cyclone reburning chamber in furnace resulted in the decrease of dust contained in the flue gas.At the same time,incandescent carbon black particles shall burn further,enhancing the boiler thermal efficiency,decreasing gas blackness,as a result,the gas emission concentration shall meet the requirements of grade A environmental protection area. 3.The grate shall employ the technology patent of small roller structure,boundary grate and so on,improving the operation reliability of the boiler.
4.Since the adoption of technology patent for the sealed wind chamber and bilateral grate air register,and the application of machining cone seal structure to grate adjusting air eauipment,the sensitivity of the grate shall be improved.
Model/Parameter/Item |
SZL 6-1.25-AII |
SZL 8-1.25-AII |
SZL 10-1.25-AII |
SZL 10-1.6-AII |
SZL 15-1.25-AII |
SZL 20-1.25-AII |
||
Rated capacity |
t/h |
6 |
8 |
10 |
10 |
15 |
20 |
|
Operation pressure |
Mpa |
1.25 |
1.25 |
1.25 |
1.6 |
1.25 |
1.25 |
|
Steam temperature |
C |
194 |
194 |
194 |
203 |
194 |
194 |
|
Water-inlet temperature |
C |
20 |
20 |
105 |
105 |
105 |
105 |
|
Heating efficiency |
% |
80.6 |
81.86 |
81.17 |
82 |
82.34 |
82.95 |
|
|
Arear of boiler heating surface |
m2 |
137.6 |
175 |
210 |
210 |
435 |
578 |
|
Area of stoker |
m2 |
7.23 |
8.6 |
11.72 |
11.72 |
16.4 |
18.87 |
|
Steam valve diameter |
mm |
PN1.6 DN125 |
PN1.6 DN15 |
PN1.6 DN150 |
PN2.5 DN150 |
PN1.6 DN200 |
PN1.6 DN200 |
|
|
Water inflow valve diameter |
mm |
PN1.6 DN50 |
PN1.6 DN50 |
PN1.6 DN50 |
PN2.5 DN50 |
PN1.6 DN65 |
PN1.6 DN65 |
|
Fuel |
Coal available |
|
II type bitumite,lcv:17700-21000KJ/kg |
|||||
Consumption |
kg/h |
900 |
1280 |
1450 |
1450 |
2340 |
3180 |
|
|
Dimension of biggest parts for shipment (LxWxH) |
m |
7.83*3.34*3.46 |
8.82*3.34*3.46 |
7.1*3.4*3.5 8*3.5*2.7 |
7.1*3.4*3.5 8*3.5*2.7 |
9.05*3.35*3.69 |
10.6*3.35*3.69 |
|
Total boiler weight |
|
48 |
56 |
96.1 |
97.1 |
108 |
116 |
|
|
Weight of biggest parts for shipment |
t |
36 |
45 |
28/27 |
29/27 |
24 |
27 |
|
|
Overall dimension of Assembled boiler (LxWxH) |
m |
10*5.3*3.9 |
11.6*5.4*3.9 |
8*4.5*6 |
8*4.5*6 |
12.3*5.3*7.2 |
14.2*5.3*8.04 |
|
Water supply |
Model |
|
DG12-25*7 |
DG12-25*7 |
DG12-25*7 |
DG12-25*7 |
DG12-35*5 |
DG12-35*5 |
Motor power |
kw |
15 |
15 |
15 |
15 |
22 |
22 |
|
|
Blast fan |
Model |
|
G6-41-13No 7.1A |
G6-41-13No 8.5A |
G6-41-13No 8.5A |
G6-41-13No 8.5A |
TG15-1 |
TG20-1 |
Flow |
m3/h |
5349-10354 |
9369-18137 |
9369-18137 |
9369-18137 |
23000 |
32079 |
|
Pressure |
Pa |
2270-1697 |
2535-3391 |
2535-3391 |
2535-3391 |
1960 |
2559 |
|
Motor power |
kw |
7.5 |
18.5 |
18.5 |
18.5 |
18.5 |
30 |
|
ID fan |
Model |
|
Y6-41-13No 10C |
Y6-41-13No 11.2D |
Y6-41-13No 11.2D |
Y6-41-13No 11.2D |
TY15-2 |
TY20-2 |
Flow |
m3/h |
32144-16604 |
41773-21578 |
41773-21578 |
41773-21578 |
40000 |
54250 |
|
Pressure |
Pa |
2575-3444 |
2764-3697 |
2764-3697 |
2764-3697 |
3038 |
3236 |
|
Motor power |
kw |
37 |
45 |
45 |
45 |
55 |
75 |
|
