Coal Fired Boiler

Name: Coal Fired Boiler
Brand: Huotong
SKU: 116243897
Availability: InStock

US$ 10,000 - 500,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Natural circulation

Usage:

Industrial

Qingdao Xingfu Boiler Thermoelectric Devices Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Natural circulation

Usage Industrial

Structure Other, Fire tube & Water tube

Pressure Other, Low pressure

Style Other, Horizontal & Vertical

Fuel Other, Coal fired

Place of Origin Shandong, China

Brand Name Huotong

Model Number DZL,SZL,DZG,LSG,SHL

Output Other, Steam or Hot water

Dimension(L*W*H) SZL6-1.25-AII:7.83x3.34x3.46m

Weight 36t

Certification ISO9001:2008,GB/T19001:2008,SGS

After-sales Service Provided Engineers available to service machinery overseas

Coal fired boiler

Boiler

Coal fired boiler for sale

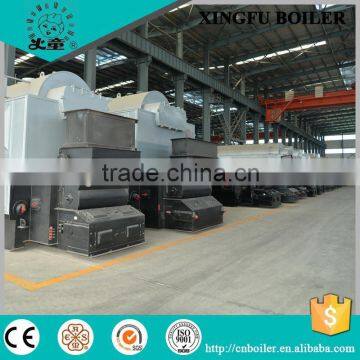

DZL single drum chain grate fire tube coal fired boiler

DZL coal fired steam boiler

Model/Parameter/Item			DZL 2-0.7-AII	DZL 2-1.25-AII	DZL 4-1.25-AII	DZL 4-1.6-AII	DZL 6-1.25-AII
Rated capacity		t/h	2	2	4	4	6
Operation pressure		Mpa	0.7	1.25	1.25	1.6	1.25
Steam temperature		C	169.6	194	194	203	194
Water-inlet temperature		C	20	20	20	60	20
Heating efficiency		%	77.4	77.4	81	81	77.4
Area of stoker		m2	3.04	3.2	5.4	5.4	7.48
Steam valve diameter		mm	PN1.6 DN80	PN1.6 DN80	PN1.6 DN100	PN2.5 DN100	PN1.6 DN125
Water inflow valve diameter		mm	PN1.6 DN40	PN1.6 DN40	PN1.6 DN50	PN2.5 DN50	PN1.6 DN50
Fuel	Coal available		II type bitumite,lcv:17700-21000KJ/kg
Fuel	Consumption	kg/h	290	290	580	580	960
Dimension of biggest parts for shipment (LxWxH)		m	5.822.13.22	5.822.13.22	6.52.663.52	6.52.663.52	7.133.65
Weight of biggest parts for shipment		t	18	19	27	29	32
Overall dimension of Assembled boiler (LxWxH)		m	6.54.03.7	6.54.03.7	7.24.54.0	7.24.54.0	7.94.54.1
Water supply	Model		11/2GC-5*4	1 1/2GC-5*4	11/2GC-5*7	1 1/2GC-5*7	2GC-5*6
Water supply	Motor power	kw	3	7.5	7.5	11	15
Blast fan	Model		G6-41-13No 5.4A	G6-41-13No 5.4A	G6-41-13No 6.4A	G6-41-13No 6.4A	G6-41-13No 7.1A
	Flow	m3/h	4358-2310	4358-2310	7358-3596	7358-3596	10354-5349
	Pressure	Pa	994-1254	994-1254	1436-1181	1436-1181	2270-1697
	Motor power	kw	3	3	5.5	5.5	7.5
ID fan	Model		Y6-41-13No 5.4C	Y6-41-13No 5.4C	Y6-41-13No 7.1C	Y6-41-13No 7.1C	Y6-41-13No 10C
	Flow	m3/h	8901-4350	8901-4350	15219-8171	15219-8171	32144-16607
	Pressure	Pa	2568-3240	2568-3240	2454-3283	2454-3283	2574-3444
	Motor power	kw	11	11	22	22	37

DZL coal fired hot water boiler

Model/Parameter/Item			DZL1.4- 0.7-95/70-AII	DZL2.8- 0.7-95/70-AII	DZL4.2- 1.0-115/70-AII
Rated capacity		MW	1.4	2.8	4.2
Operation pressure		Mpa	0.7	0.7	1
Hot water temp.		C	95	95	115
Water-inlet temperature		C	70	70	70
Heating efficiency		%	76	76	78
Area of stoker		m2	3.04	5.14	7.4
Heating area		m2	12000	24000	36000
Water inlet & outlet Diameter		mm	PN1.6 DN100	PN1.6 DN125	PN1.6 DN150
Fuel	Coal available		II type bitumite,lcv:17700-21000KJ/kg
Fuel	Consumption	kg/h	290	580	960
Dimension of biggest parts for shipment (LxWxH)		m	5.822.263.22	6.512.63.52	7.52.93.5
Weight of biggest parts for shipment		t	19.1	26.5	31
Overall dimension of Assembled boiler (LxWxH)		m	6.52.554.53	7.54.05	7.94.54.4
Water pump	Model		IS80-65-160	IS100-80-160	IS125-100-200B
	Flow	m3/h	50	100	172
	Lift	m	32	38	37
	Motor power	kw	7.5	15	30
Blast fan	Model		G6-41-13No 5.4A	G6-41-13No 6.4A	G6-41-13No 7.1A
	Flow	m3/h	4358-2310	7358-3596	10354-5349
	Pressure	Pa	994-1254	1436-1181	2270-1697
	Motor power	kw	3	5.5	7.5
ID fan	Model		Y6-41-13No 5.4C	Y6-41-13No 7.1C	Y6-41-13No 10C
	Flow	m3/h	8901-4350	15219-8171	32144-16607
	Pressure	Pa	2568-3240	2454-3283	2574-3444
	Motor power	kw	11	22	37
