Industrial Water Fire Tube Coal Fired Steam Boiler Caldera de Vapor

FOB Price

US$ 19,600 - 222,000 / Set

1 Set(Min. Order)

Port Qingdao China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Natural Circulation
Usage	Other, Industrial, Inustrial( food, textile, packing, chemical industry)	Structure	Other, water fire tube
Pressure	Low Pressure	Style	Horizontal
Fuel	Coal-fired	Place of Origin	Shandong, China
Brand Name	Xingfu	Model Number	DZL
Output	Steam	Dimension(LWH)	Depends
Weight	16.7---50 ton	Certification	CE,ASME,ISO,SGS
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

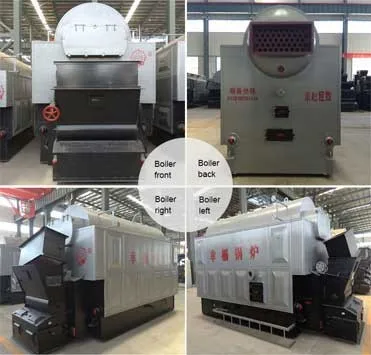

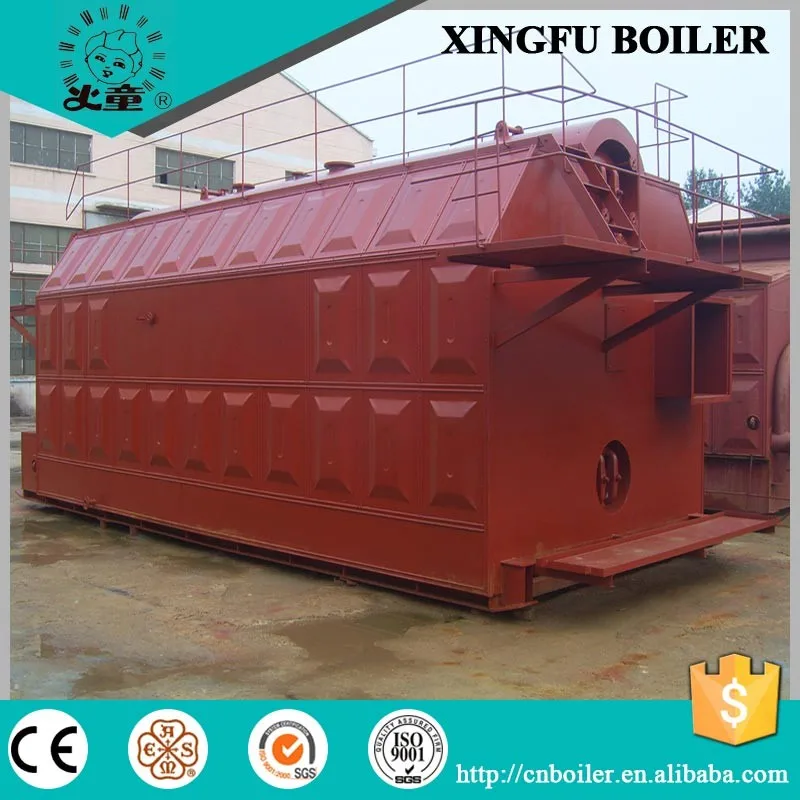

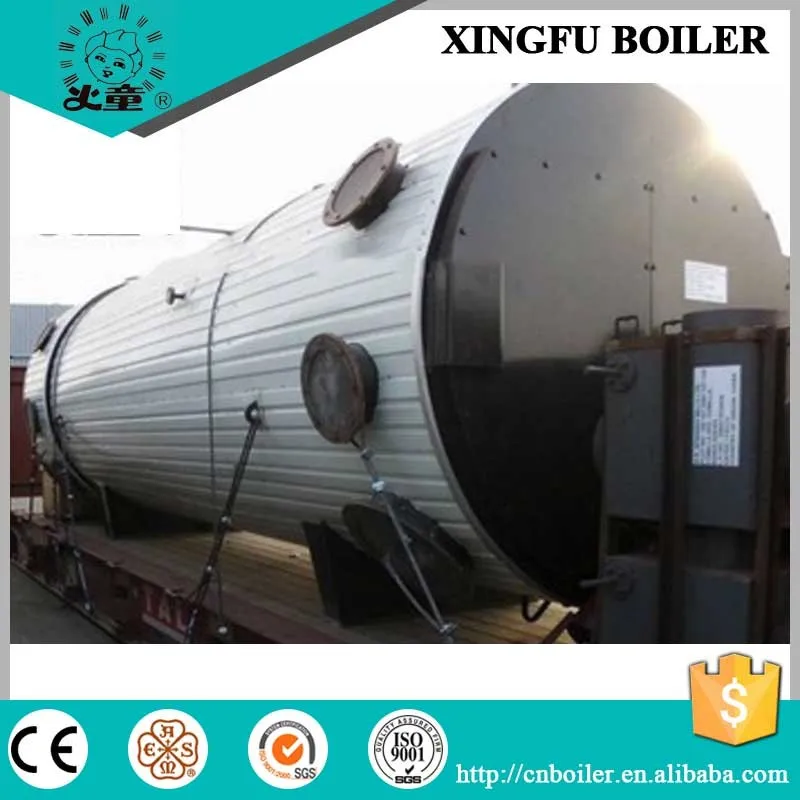

Industrial chain grate coal fired steam boiler

The DZL series quickly installed coal fired steam boiler is the most advanced water-fire tube boiler in Chinese market, This series boiler can be used in textile, food and package factory with high efficiency, small in size and long working life.

The coal fired steam boiler after improvement takes use of structure of wing type smoke duct, one-way screwed smoke tube, arched tube plate, smoke and gas separate room and several other advanced technology, which has increased the water circulation speed and safety factor. This boiler series is well designed, compactly made up, quickly installed, mono layer, so that the civil engineering and investment could be saved. With these improvement, the boiler's working life extend much to be the national energy saving product.

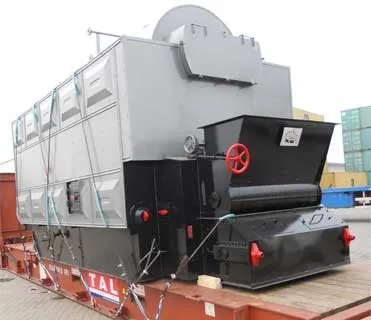

1-6 T steam boiler usally transported as entiraty part, Capacity more than 8t(including 8 t/h)are transported as up body and bottom body (chain grate) .

SPECIFICATIONS FOR DZL COAL FIRED STEAM BOILER
Boiler basic parameter	Steam capacity	T/h	1, 2, 4, 6, 8, 10, 12, 15, 20
	Steam temperature	℃	170, 184, 194, 204, 226
	Fuel		Coal
Boiler performance	Working pressure	Mpa	0.7, 1.0, 1.25, 2.6
	Thermal efficiency	％	78----82
	Feed water temperature	℃	20, 105
Boiler performance	Grate heat area	M²	1.5---23.15
	Fuel consumption	Kg/T(steam)	120
	Boiler transportation weight	T	16---31

Boiler model Item			DZL2-0.7 /1.25/1.6-AII	DZL4-1.25 /1.6/2.5-AII	DZL6-1.25 /1.6/2.5-AII	DZL8-1.25 /1.6/2.5-AII	DZL10-1.25 /1.6/2.5-AII	DZL20-1.25 /1.6/2.5-AII
Steam capacity		T/h	2	4	6	8	10	20
Working pressure		Mpa	0.7/1.25/ 1.6	1.25/1.6/ 2.5	1.25/1.6/ 2.5	1.25/1.6/ 2.5	1.25/1.6/ 2.5	1.25/1.6/ 2.5
Steam temp.		℃	170/194/ 204	194/206/ 226	194/206/ 226	194/206/ 226	194/206/ 226	194/206/ 226
Feed water temp.		℃	20	20	20	105	105	105
Thermal efficiency		％	78	78	80	80	80	82
Grate heat area		M²	3.2	5.14	7.4	9.6	11.4	23.15
Coal available			II type bituminous, low heat capability:17700-21000KJ/kg
Water pump	Model		1½GC5×7	1½GC5×7	2GC-5×6	2½GC6×6	DG12×7	DG25-35×5
Water pump	Motor power	Kw	7.5/11	7.5/11/ 18.5	15/18.5	15/18.5	18.5/22	30/37
Blast fan	Model		G6-41-13 NO5.4A	G6-41-13 NO6.4A	G6-41-13 NO7.1A	G6-41-13 NO8.5A	G6-41-13 NO8.5A	TG20-1
	Ventilation	M³/h	4358-2310	7358-3596	10354-5394	18137-9369	18137-9367	32079
	Wind pressure	Pa	994-1254	1181-1436	1697-2270	2535-3391	2535-3391	2559
	Motor power	Kw	3	5.5	7.5	18.5	18.5	37
Induced draft fan	Model		Y6-41-13 NO5.4C	Y6-41-13 NO7.1C	1Y6-41-13 NO10C	Y6-41-13 NO11.2D	Y6-41-13 NO11.2D	GY20-15
	Ventilation	M³/h	8901-4350	15219-8171	32144-16607	41773-21578	41773-21578	73308
	Wind pressure	Pa	2568-3240	2454-3283	2574-3444	2764-3697	2764-3697	3515
	Motor power	Kw	11	22	37	45	55	110
Maximum size for shipment		M	5.82×2.1×3.2	6.5×2.66×3.52	6.7×3× 3.54	8.0×3.2× 3.58	8.45×3.2×3.58	10×4.8× 3.55
Maximum weight for shipment		T	18/19/20	27/29/31	32/33/34	42/43/44	45/47/49	30/31/32

Certifications

The 1-20T coal fired steam boiler meets the standard of CE, ASM and ISO. All boilers manufacture strictly according to the national boiler manufacturer standard. Water pressure test and X-ray test for boiler.

Our Service

The full boiler supply range includes capacity: 0.5--30 Ton; Fuel: coal, biomass, oil and gas; Output: steam, hot water and hot oil; Working pressure: 0.7-2.5 Mpa.

Exibition show

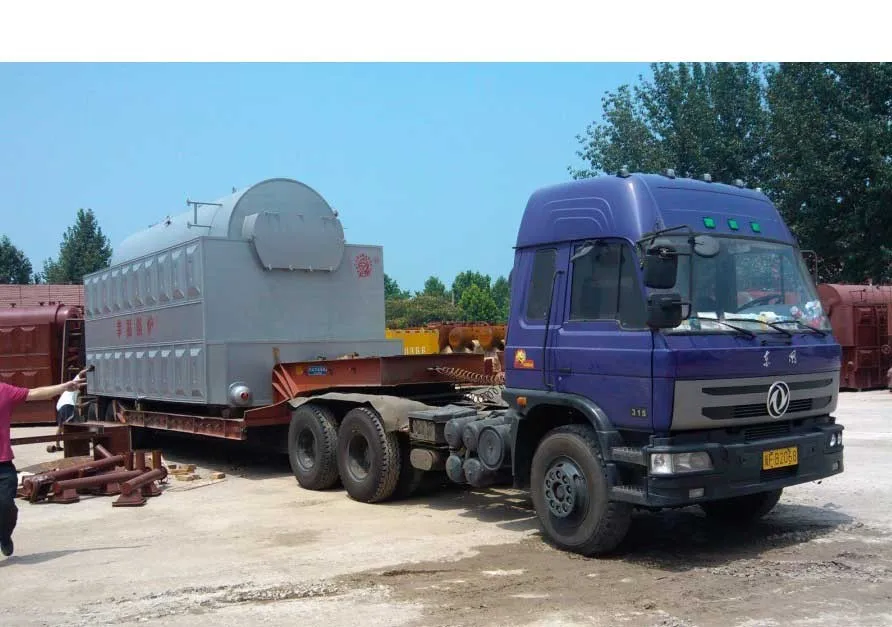

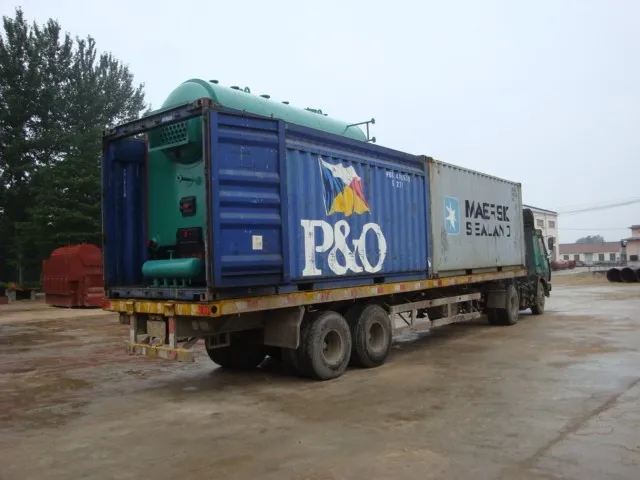

Packing & Delivery

Packaging
Size	5.82-10 (L) * 2.1-4.8 (W) * 3.2-3.55 (H)
Weight	18-32T

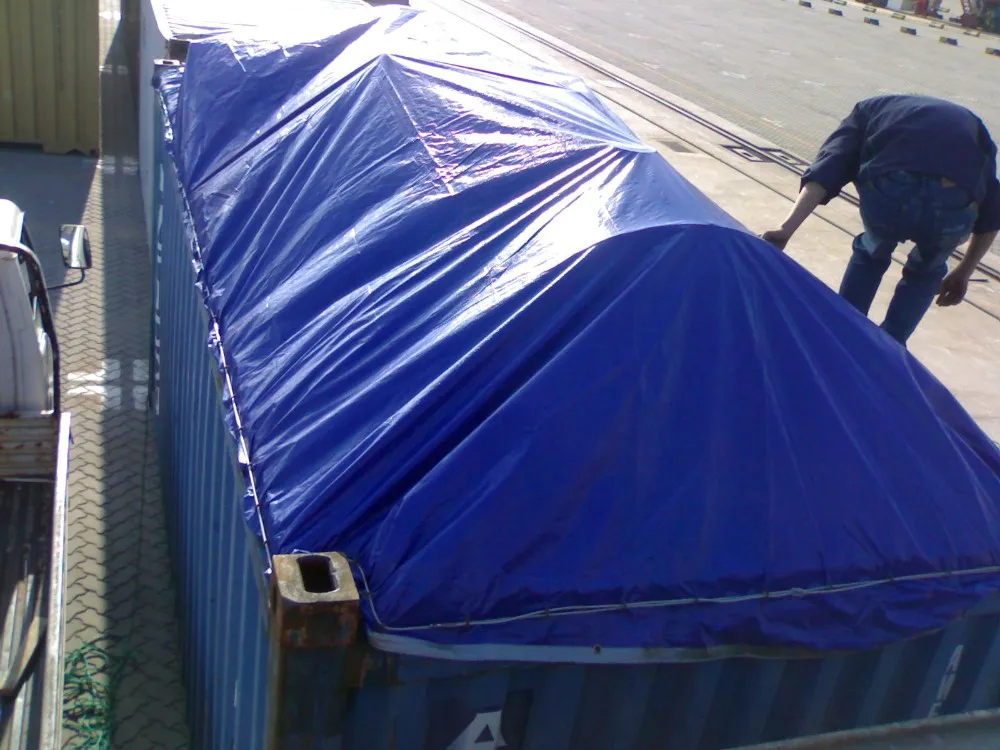

Packaging Details	The boiler body and some accesories covered with plastic cloth. Water pump, instrument&valve and electric cabinet packed in wood frame.

SZL industrial biomass fired steam boiler

91.8% Response Rate

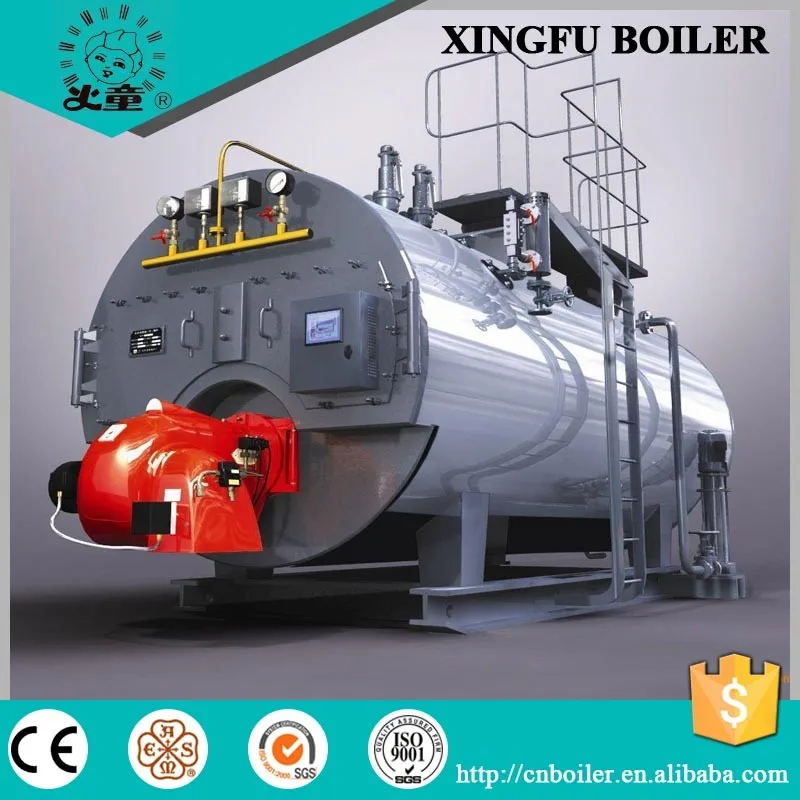

Industrial fully automatic oil&gas fired steam boiler
