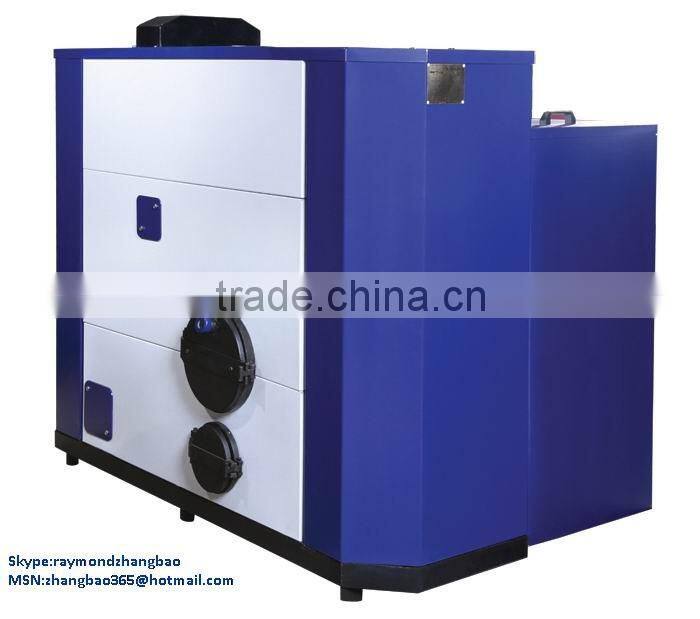

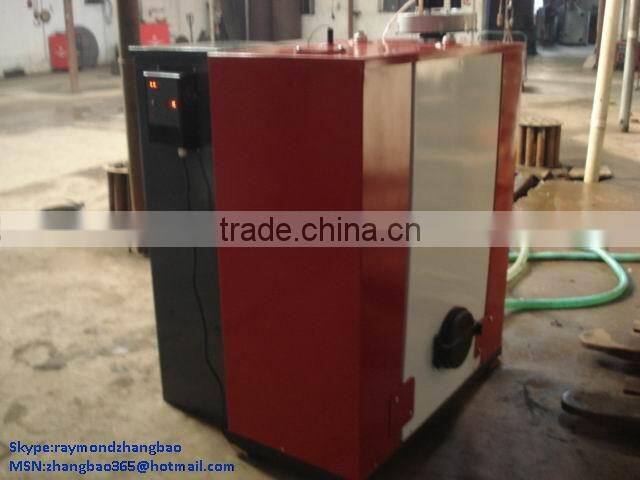

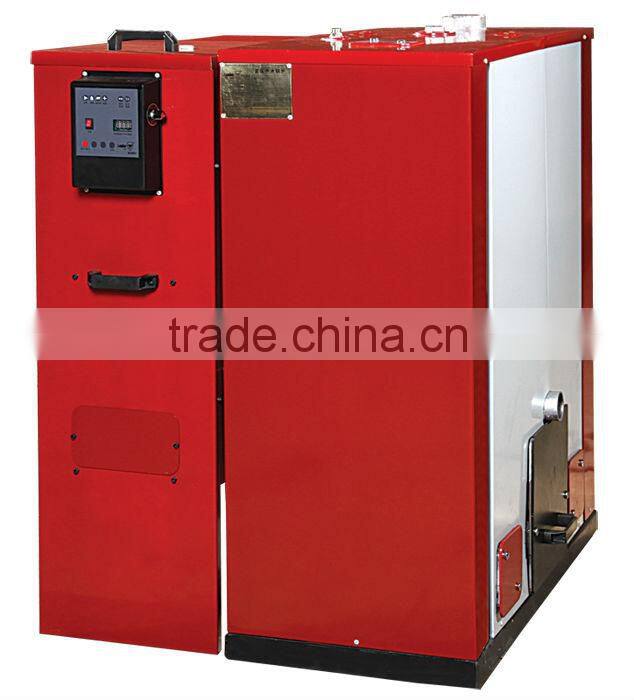

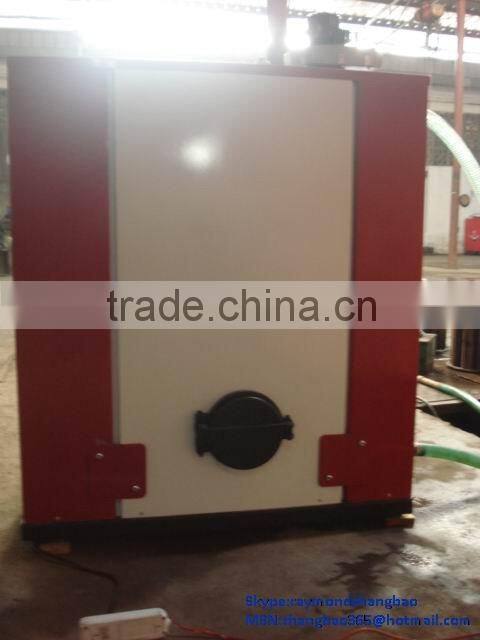

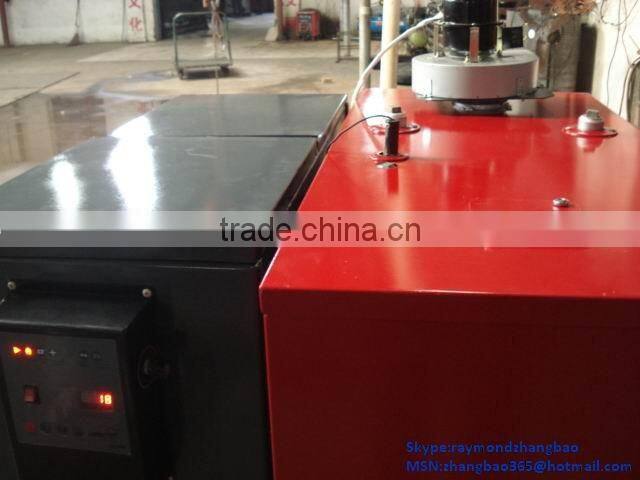

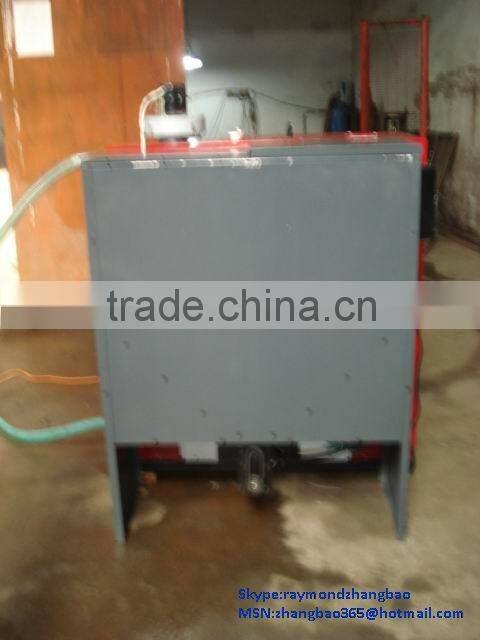

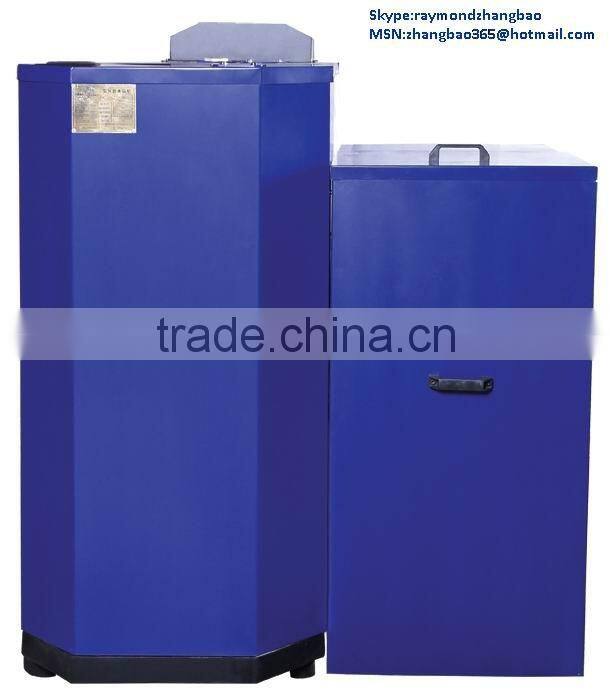

Biomass sawdust pellet boiler
Technical advantage:

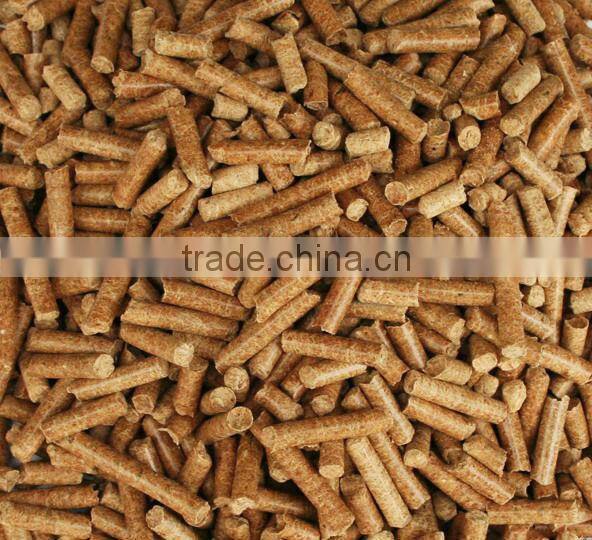

- It can burn wood pellet.
- Fully automatic,no human needed.
- Inside dust collector,no outside chimney needed,no smoke and dust.
- High temperature burning(800-900 Deg C),low outflow temperature(110-120 Deg C).
- Feeding one hopper for 1-2 days(according to boiler model).
- Fine appearance,beautiful,bright colours.
- Two years’ trouble-free operation.
- Easy to use,simple maintenance.

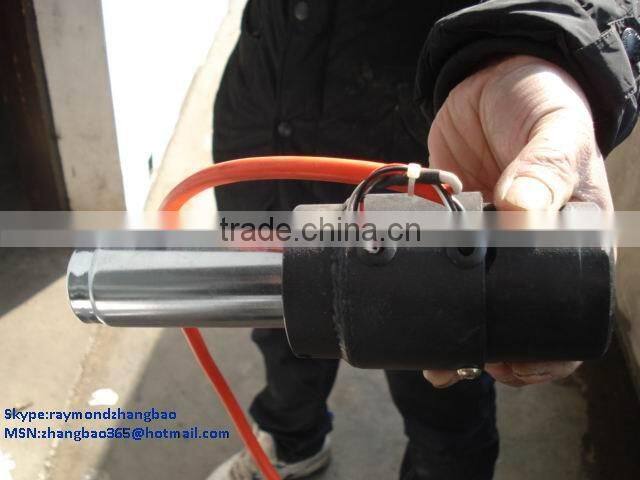

- Automatic device for saving the little fire,don’t need to ignite once again.
Biomass features:
Biomass is three high products,high-alkali,hig-calorific value,high-volatile matter,especially,
High-alkali is difficult to full combustion in low temperature which easy to corrode the furnace wall and easy to occur tar below 400 Deg C.
Professional design programme:
A,60% combustion,40% gasification,ensure furnace combustion temperature(above 800 Deg C).
B,The density is above 1.1,and add acid matter into biomass fuel, neutralize acid and alkali,better protection of environment,improve the burning calorific value up to 4600-6000kcal/kg.
Technical parameters:
Item |
CLHS-0.015 |
CLHS-0.028 |
CLHS-0.042 |
CLHS-0.054 |
||||
Rated thermal power |
kcal |
15000 |
25000 |
35000 |
45000 |
|||
Working pressure |
Mpa |
Normal pressure |
||||||
Heating Efficiency |
% |
91.15% |
||||||
Power |
Air system |
kw |
0.25 |
0.25 |
0.35 |
0.55 |
||
Ignite system |
kw |
1.8 |
1.8 |
1.8 |
1.8 |
|||
Diamter of flue tube |
mm |
114 |
114 |
114 |
114 |
|||
Biomass consumption |
kg/h |
2.65 |
4.57 |
6.4 |
8.25 |
|||
Hopper capacity |
kg |
120 |
120 |
120 |
120 |
|||
Heating area for room |
m2 |
80-120 |
120-200 |
200-280 |
280-400 |
|||
Heating area of boiler |
m2 |
1.76 |
1.98 |
2.33 |
2.66 |
|||
Hot water capacity |
t/h |
0.3 |
0.5 |
0.7 |
0.9 |
|||
Boiler water volume |
m3 |
0.15 |
0.2 |
0.3 |
0.33 |
|||
Continuous operation time |
h |
45 |
26 |
18 |
15 |
|||
Boiler body weight |
kg |
184 |
241 |
261 |
285 |
|||
Hopper weight |
kg |
30 |
30 |
30 |
30 |
|||
Carriage weight |
kg |
214 |
271 |
291 |
315 |
|||
Packing size |
LxWxH |
mm |
900*460 *1040 |
900*480 *1160 |
900*510 *1220 |
900*530 *1180 |
||
Installation |
LxWxH |
mm |
1900*1460 *1040 |
1900*1880 *1160 |
1900*1910 *1220 |
1900*1930 *1180 |
||
Hopper size |
LxWxH |
mm |
600*400 *750 |
600*400 *750 |
600*400 *750 |
600*400 *750 |
||
