LED high bay light,LED industrial light, High bay lamp.LED factory lamp,Industrial lamp,
-High power ceramic multi-chip LED,
-High quality aluminum body, patented cooling body design, anodizing tensile reflector, acrylic light source enclosure.
LED High bay light 100W
A. Advantage
a. Quite a long lifespan
It lasts around ten times longer than compact fluorescent light. It takes you away from your constant light changes from time to time. With LED, you need not buy replacement lights and change them like the way you did. You just have to use it, and don't mind them for a long time.
b. It won't have to be reached
LED lets them lessen the number of the times that they need to be changed. This is very good news to your maintenance team, as well as for the maintenance costs.
c. Energy efficient and economical
They are very popular in households and industrial places. LED just uses around two to ten watts - about 66% less than your typical incandescent bulb. Most of the times, LED usage in terms of electricity even goes lower. And since it uses less energy, you can also save more money.
d. More durable and resistant to accidents
They do not have filaments and they get to be even more ideal as high bay lighting. You may spend more in the first place, but you get so much in return.
B. ENGK-415-100W led High bay light Main Technical Parameters
| Input Voltage | AC 85V~265V | |
| Freqency Range | 50Hz~60Hz | |
| Total Harmonic Distortion | ≤ 9 % | |
| Power Factor | > 0.98 | |
| Power Efficiency | > 85 % | |
| Working Voltage | DC 30~36V | |
| Led | 1 pc | |
| Led Consumption | 920 W | |
| System Consumption | 106 W | |
| Led Luminous Efficiency | 60-100 LM/W | |
| Led Initial Flux | WW | 7000 Lm |
| PW | 7400 Lm | |
| CW | 7100 Lm | |
| lamp's Efficiency | > 80 % | |
| Average Illuminance | Height:6 M | 26.5 Lux |
| Height:8 M | 11.8 Lux | |
| Height:10 M | 6.6 Lux | |
| Illuminance Area | Height:6 M | Φ10 M |
| Height:8 M | Φ16 M | |
| Height:10 M | Φ21 M | |
| Illuminance Uniformity | >0.4 | |
| Color Temperature | WW | 2700K~3900K |
| PW | 3900K~6000K | |
| CW | 6000K~7000K | |
| Color Rendering Index | WW | Ra>68 |
| PW,CW | Ra>75 | |
| Light Distribution | Symmetric expression | |
| Light Design | LED+reflector twice luminous intensity distribution | |
| Junction Temperature | ≤80°C | |
| Working Temperature | - 40 °C ~ +55 °C | |
| Storage Temperature | -25 °C ~ +65 °C | |
| IP Grade | IP65 | |
| Working Life-span | 50000 H | |
| Power line | 0.75 mm2 three-core wire | |
| Connect wire | Brown | L |
| Blue | N | |
| Yellow/Green | G | |
| The color of the lamp shell | Black or Silver | |
| Certificate | CE | |
C. Structure dimensions(mm)
D. Distribution curve flux
E. Classification

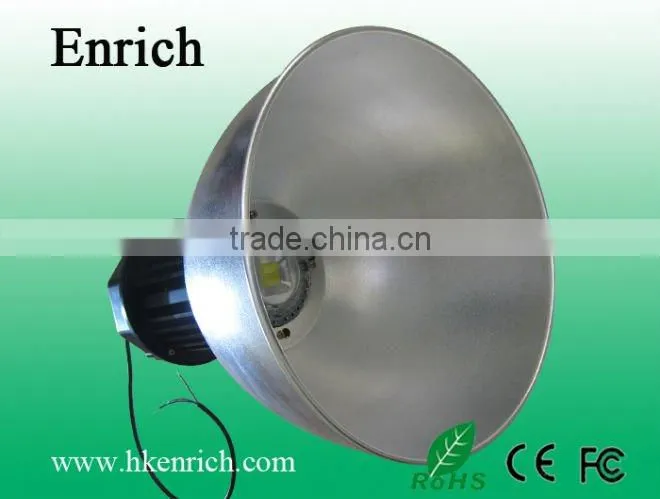

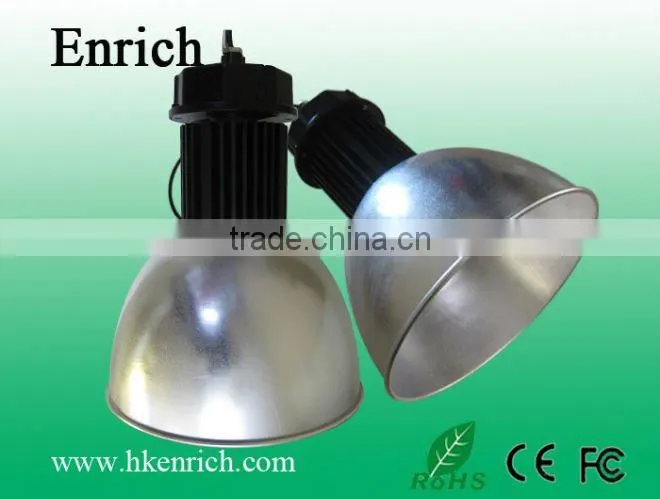

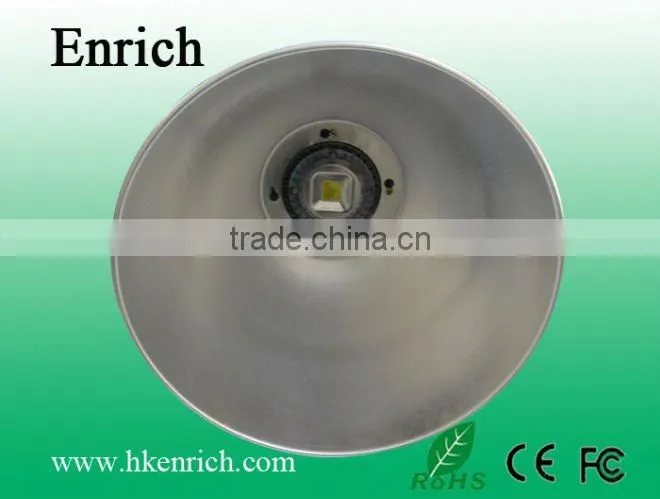

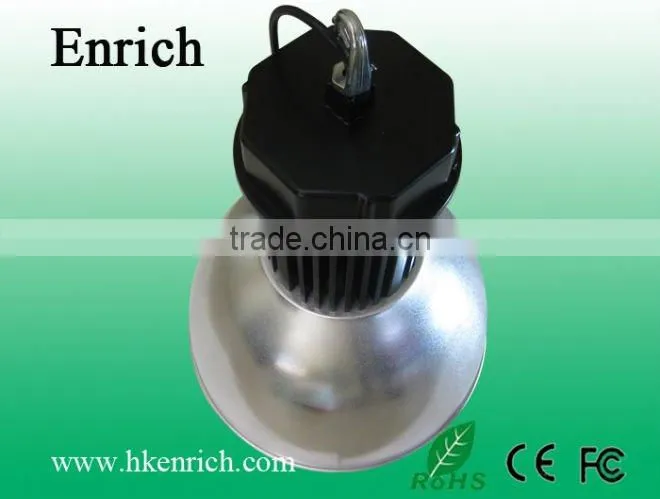

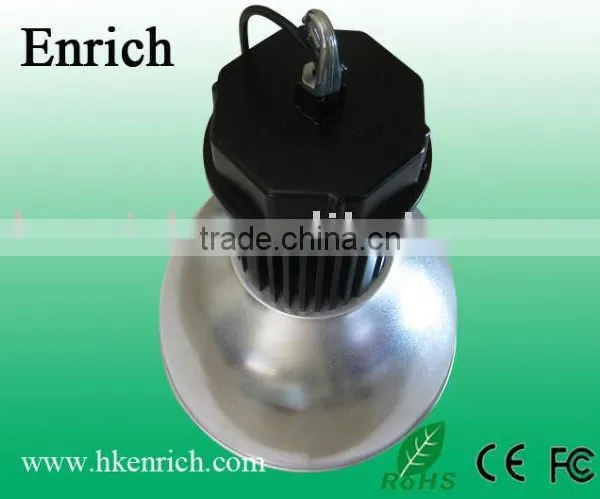

F.picture show
G. Applications
used in indoor places with ceilings of more than 15 feet. They are commonly used in gyms,
hangars and in warehouses - the places where there are very high ceilings.
