Home > Products > LED High Bay Light > High Lumen 100W High Bay LED Light / LED Industrial Lamp

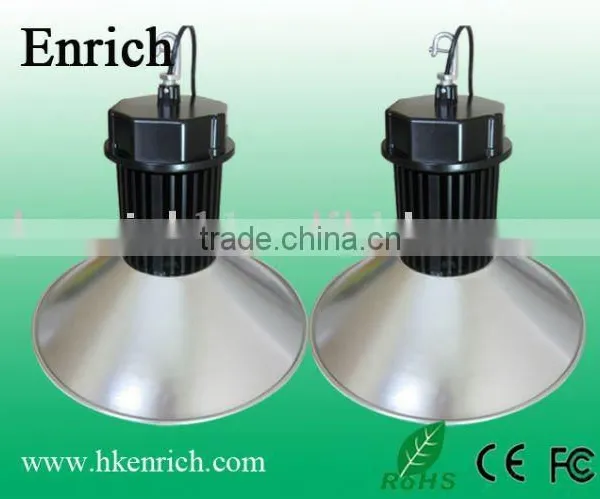

High Lumen 100W High Bay LED Light / LED Industrial Lamp

FOB Price

Negotiable / Set

25 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification	CE		Place of Origin	Guangdong, China
Brand Name	Enrich / ODM / OEM		Model Number	ENGK-515-100W

LED high bay light,LED industrial light, High bay lamp.LED factory lamp,Industrial lamp

LED High bay light 100W

A. Features

-high power ceramic multi-chip LED,

-High quality aluminum body,

-patented cooling body design,

-anodizing tensile reflector,

-acrylic light source enclosure.

-wide-range application in anywhere is high ceiling

B. ENGK-515-100W led High bay light Main Technical Parameters

Input Voltage		AC 85V~265V
Freqency Range		50Hz~60Hz
Total Harmonic Distortion		≤ 9 %
Power Factor		> 0.9
Power Efficiency		> 83 %
Working Voltage		DC 30~36V
Led		1 pc
Led Consumption		92 W
System Consumption		106 W
Led Luminous Efficiency		60-100 LM/W
Led Initial Flux	WW	7000 Lm
	PW	7500 Lm
	CW	7200 Lm
lamp's Efficiency		> 85 %
Average Illuminance	Height:6 M	53.8 Lux
	Height:8 M	24.6 Lux
	Height:10 M	13.6 Lux
Illuminance Area	Height:6 M	Φ10 M
	Height:8 M	Φ16 M
	Height:10 M	Φ21 M
Illuminance Uniformity		>0.4
Color Temperature	WW	2700K~3900K
	PW	3900K~6000K
	CW	6000K~7000K
Color Rendering Index	WW	Ra>68
	PW,CW	Ra>75
Light Distribution		Symmetric expression
Light Design		LED+reflector twice luminous intensity distribution
Junction Temperature		≤80°C
Working Temperature		- 40 °C ~ +55 °C
Storage Temperature		-25 °C ~ +65 °C
IP Grade		IP65
Working Life-span		50000 H
Power line		0.75 mm2 three-core wire
Connect wire	Brown	L
	Blue	N
	Yellow/Green	G
The color of the lamp shell		Black or Silver
Certificate		CE

C.Classification

D.picture

E. Applications

used in indoor places with ceilings of more than 15 feet. They are commonly used in gyms,

hangars and in warehouses - the places where there are very high ceilings.
