10w High Bright High Power Led Floodlight

10w High Bright High Power Led Floodlight thumbnail-1
10w High Bright High Power Led Floodlight photo-1
Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Input Voltage(V):
AC 85V~265V
Lamp Power(W):
10
Lamp Luminous Flux(lm):
650
Contact Supplier Request Quote Chat Now
Shenzhen Enrich Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Input Voltage(V) AC 85V~265V
Lamp Power(W) 10
Lamp Luminous Flux(lm) 650
Lamp Luminous Efficiency(lm/w) 80
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification CE
Place of Origin Guangdong, China
Brand Name Enrich/ ODM / OEM

Specifications

high power led floodlight
1) CE, RoHS
2) Symmetric expression
3) High power ceramic multi-chip LED
4) Eye Protectio

10W LED flood light



1.High quality

 Using high power ceramic multi-chip LED, High quality aluminum body, patented cooling body

 design, anodizing tensile reflector, acrylic light source enclosure.



2.Long lifespan

The unique thermal design and the power supply box is a perfect combination, using movement

of air from all directions, effectively improving heat conduction, thereby reducing the lamp body temperature.



3.Eyes protection

With constant current constant voltage control circuit,applied voltage width (AC85V-265V), overcome the light instability,avoiding bringing stimulus and fatigue to eyes in working.



ENFL-115-10W Flood light Main Technical Parameters

Input Voltage AC 85V~265V
Freqency Range 50Hz~60Hz
Total Harmonic Distortion ≤ 9 %
Power Factor >0.98
Power Efficiency >82 %
Working Voltage DC 30~36V
Led 1 pcs
Led Consumption 8.2 W
System Consumption 10 W
Led Luminous Efficiency 60-100 LM/W
Led Initial Flux  WW 610 Lm
PW 650 Lm
CW 620 Lm
lamp's Efficiency > 85 %
Average  Illuminance  Height:1M 70 Lux
Height:2M 17 Lux
Height:3M 7.7 Lux
Illuminance Area Height:1M 3.3*3.3 M
Height:2M 6.5*6.5 M
Height:3M 9.8*9.8 M
Illuminance Uniformity >0.6
Color Temperature WW 2700K~3900K
PW 3900K~6000K
CW 6000K~7000K
Color Rendering Index WW Ra>68
PW,CW Ra>75
Light Distribution Symmetric expression
Light Design LED+ reflector twice luminous intensity distribution
Junction Temperature ≤80°C
Working Temperature  - 40 °C ~ +55°C
Storage Temperature  -25°C ~ +65°C
IP Grade IP65
Working Life-span 50000 H
Power line 0.75 mm2 three-core wire
Connect wire Brown L
Blue N
Yellow/Green G
The color of the lamp shell Black or Silver
Certificate CE

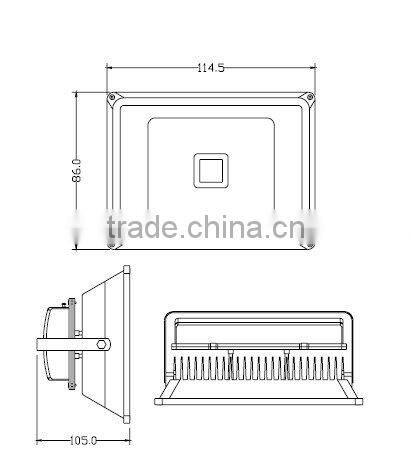

Structure dimensions(mm)



 10w high bright high power led floodlight

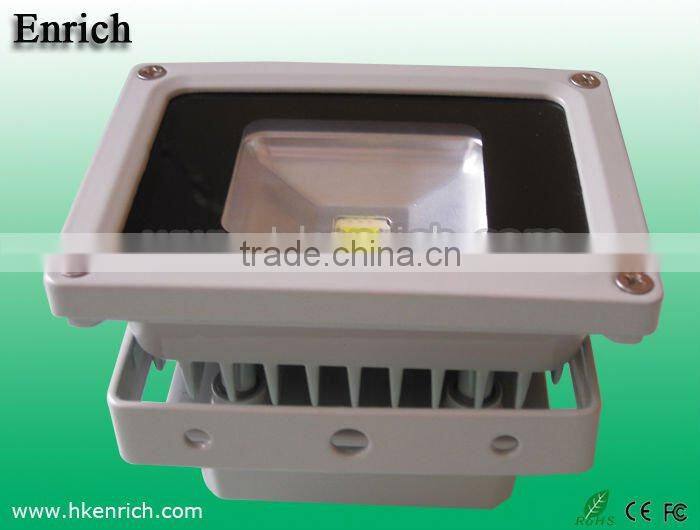

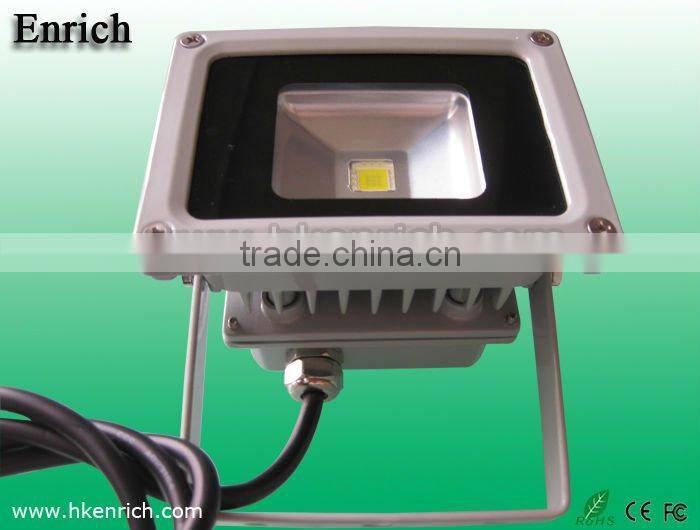

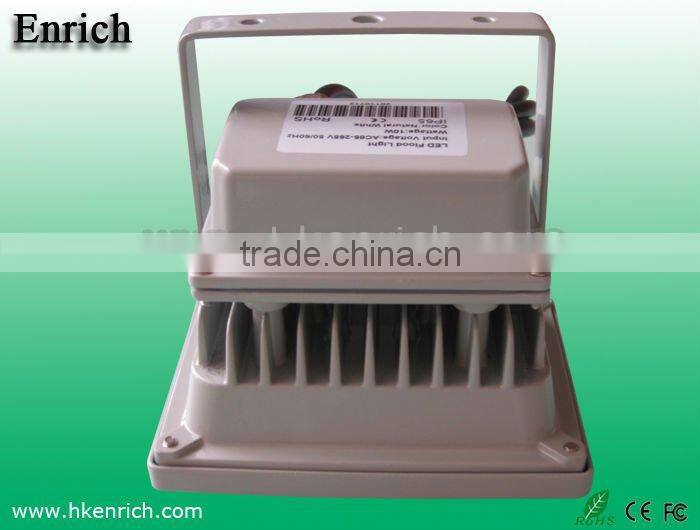

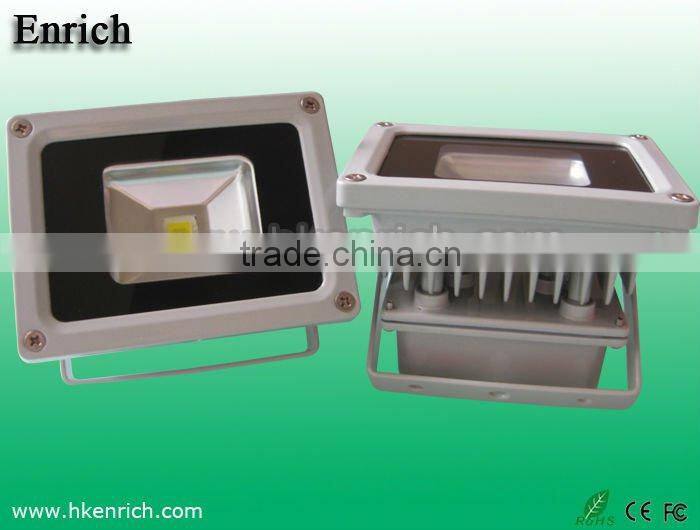

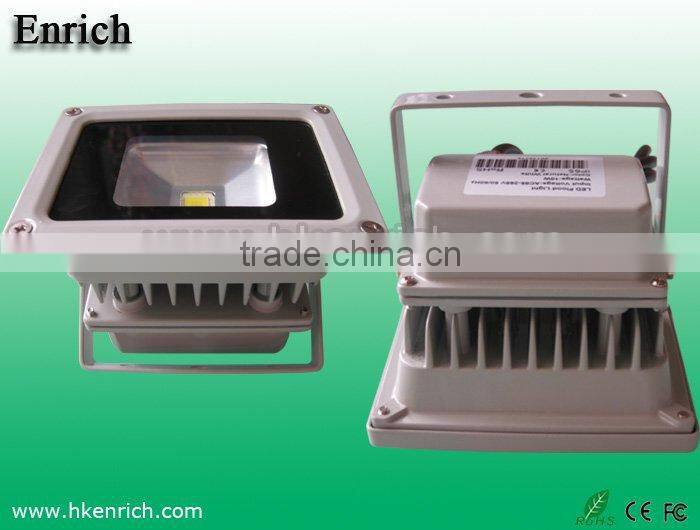

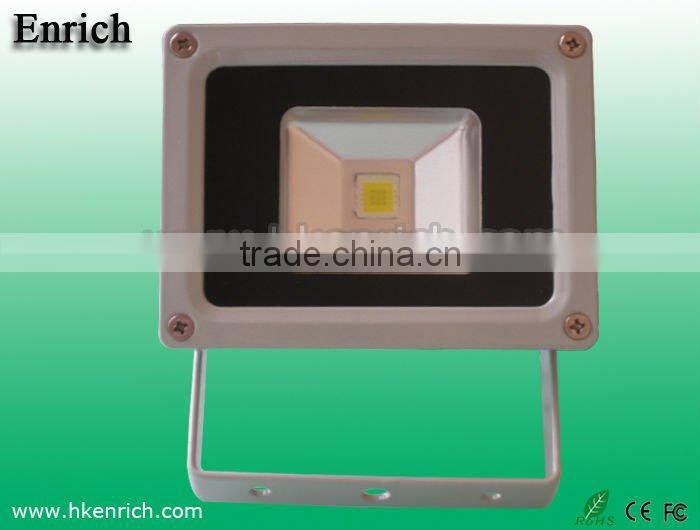

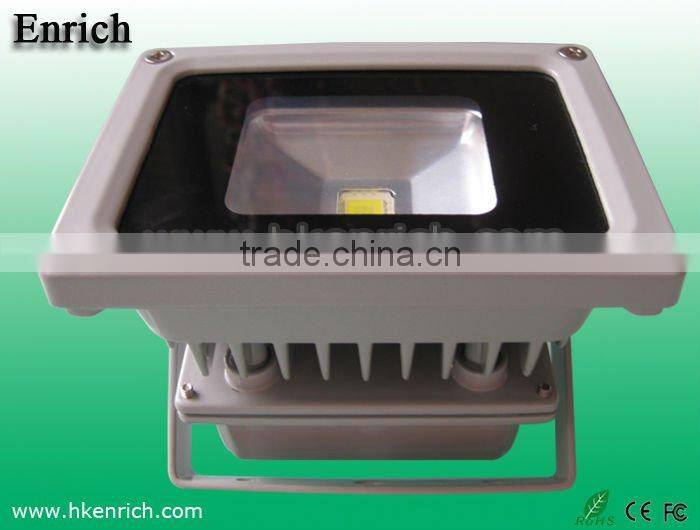

Picture show

10w high bright high power led floodlight10w high bright high power led floodlight10w high bright high power led floodlight10w high bright high power led floodlight

10w high bright high power led floodlight10w high bright high power led floodlight10w high bright high power led floodlight10w high bright high power led floodlight10w high bright high power led floodlight
