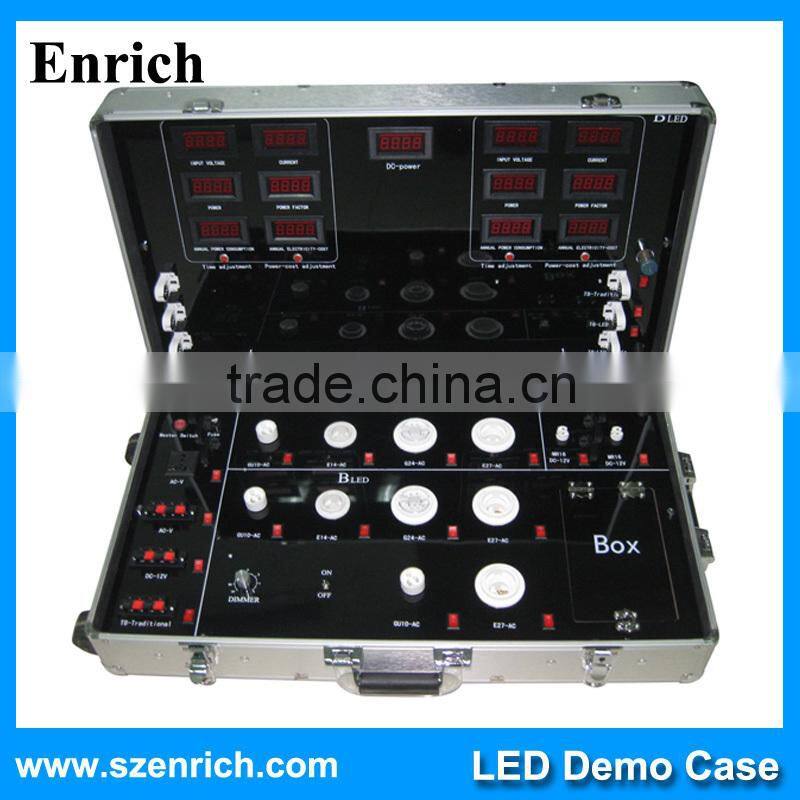

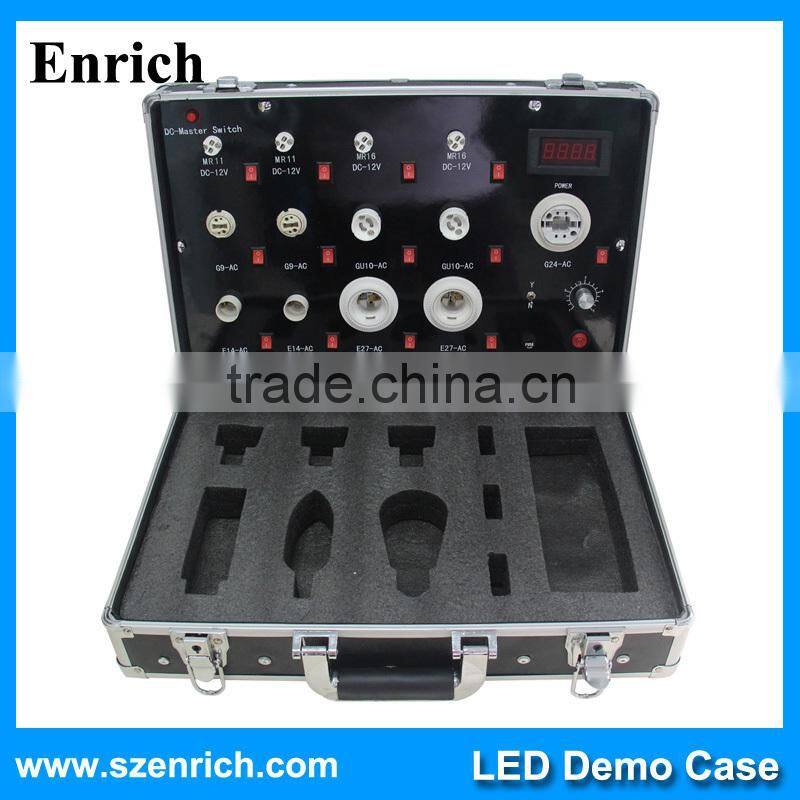

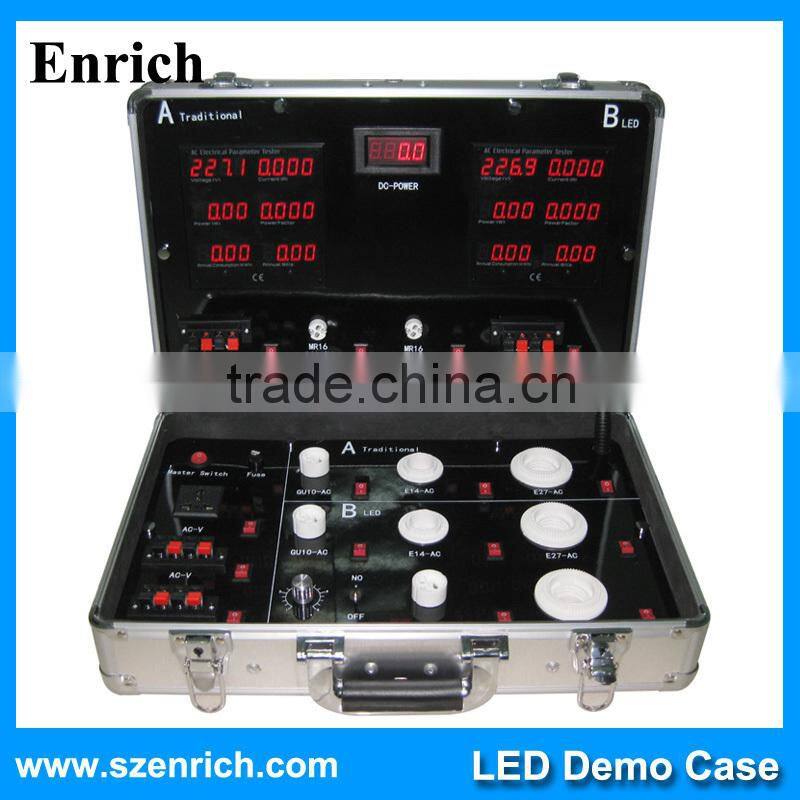

LED Demo Tester Box
Feature:
1. nice design,assured quality
2. customized size , convenient for business trip
3. with different kind of power meter inside, present product effectively.
4, Each socket has on/off switch for easy control
5, pull handle, wheels and feet for travel
6, optional printing of customer logo on case
Discription:
| Model : | EN-Demo Case |
| Multi-Function LED Demo Case ( Not include lamp ) | |
| * Dimension : | L1290*W350*H170 mm |
| * Weight : | 18 Kg |
| * Input Voltage : | AC85-265V |
| * Digital Meter : | 1pc 6 in 1 multi function AC meter,test traditional lamp |
| 1pc 6 in 1 multi function AC meter,test AC LED lamp | |
| 1pc DC power meter,test DC LED lamp | |
| * Socket : | E40,E27,GU10,B22,G24,E14 (or E12) |
| G4,MR16,T8 lamp-socket | |
| 1pc Multifunction Triangle Socket | |
| * Wire Clip : | AC85-265V clip ,DC12V chip |
| * T8 Tube Test Line : | 2 pair |
| * Dimmer : | 1pc AC LED lamp dimmer,1pc dimmer switch |
| * Switch : | 1pc main switch,single switches |
| * Storage Box : | 1pc |
| * Material : | 6mm MDF with 1 mm fireboard,Aluminum Frame |
| * Other : | 1pc handles ,2pcs casters |
| * Color of shell : | Silver,Black |
Functions & Usages:
1. Complete test functions:
It can test LED and traditional lights concurrently with data display about correlation data including voltage,current,power,power factor,annualconsumption,frequency,etc.
The energy-saving effects of LED products will be clear at a glance.
2. Wide applicability:
Demo Case can configure variou sockets(E40,E27,E17,E14,E12,MR16,GU10,B22,G24,G9,G4,T8,T5,etc)
and multi-function cable clamps(AC for LED,DC12V for MR16, G4,etc).
It is suitable for test & display of various LED lights.
3. Wide voltage rang:
AC85V-270V,DC5V-24V
4. Simple operation:
LED demo case is connected with various switches,dimmers,Safety device,wire circuit,etc.
It can be used directly when you connected the power supply and installed the lights.
5. Attractive and durable:
Appearance of each case can be individually designed,the materials use MDF in high density
board and aluminums alloy frames.
6. Portable:
The configuration of the display cases have pull rods and rollers,so it's easy for long-distance travelling.
More Designs available for optional:
