Aluminum Conductor/ACSR Dog 100mm BS215
1. Specification

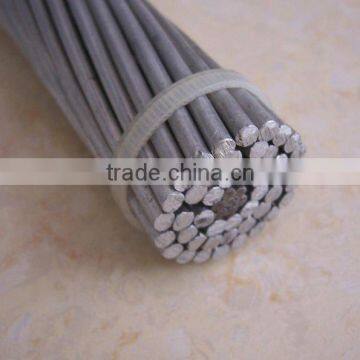

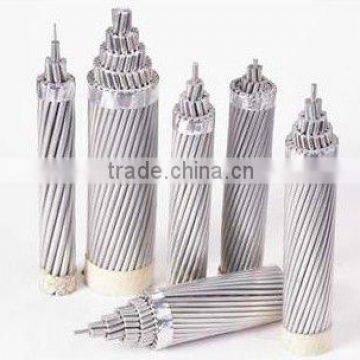

Aluminium Conductor Steel Reinforced (ACSR Cable) is concentrically stranded conductor with one or more layers of hard drawn 1350-H19 aluminium wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. Steel core wire is available in Class A , B or Class C galvanization for corrosion protection. Additional corrosion protection is available through the application of grease to the core or infusion of the completed conductor with grease.
The proportion of steel and aluminium in an ACSR conductor can be selected based on the mechanical strength and current carrying capacity demanded by each application.
ACSR Cable ( Aluminum Conductor Steel Reinforced) are recognized for their record of economy, dependability and favourable strength / weight ratio. ACSR conductors combine the light weight and good conductivity of aluminium with the high tensile strength and ruggedness of steel. In line design, this can provide higher tensions, less sag, and longer span lengths than obtainable with most other types of overhead conductors.
2.Features
- high Tensile strength
- better sag properties
- economic design
- best suited for transmission lines with long spans
3. Service Performance
(1).The permissible long-time operating temperature for aerial conductor is 70oC.
(2).Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3).When connecting conductors ,the conductor beside the connecting tube cant be prominent.Otherwise,the force on the operating conductors will be unbalanced.After connectors are install,the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4).Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.
4. Products range
1)AAAC(All Aluminum Alloy Conductors)
2)ACSR Cable(Aluminum Conductor Steel Reinforced)
3)AAC Conductor(All Aluminum Conductors)
4)AACSR(Aluminum Alloy Conductors Steel Reinforced)
5)ACSR/AW(Aluminum Conductor Aluminum Clad Steel Reinforced)
100mm2 Aluminum Conductor Steel Reinforced ACSR Dog Conductor Price
ZHEJIANG YINHE ELECTRIC GROUP CO.,LTD. has always kept a technical step ahead all around the world in the R&D of power cable, control cable, high-voltage cross bonding cable, rubber jacket cable, cable for civilian use, overhead stranded conductor, aluminium alloy overhead stranded conductor,high-temperature cable, H-cable,computer cable and other special cable types.
The company has obtained the ISO9001:2000 certification. According to the UL and CE standard,we exports the large quantities to Middle East, Southeast Aisa,Africa, South Americal, the USA, the UK, Sweden and other countries all over the world.
