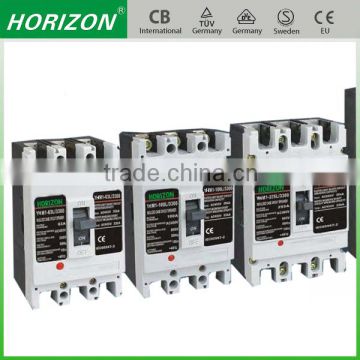

YHM1 MOULDED CASE CIRCUIT BREAKER

YHM1 MOULDED CASE CIRCUIT BREAKER thumbnail-1
YHM1 MOULDED CASE CIRCUIT BREAKER photo-1
US$ 9 - 200 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HORIZON
Model Number:
YHM1
Contact Supplier Request Quote Chat Now
Zhejiang Yinhe Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name HORIZON
Model Number YHM1
Type Moulded Case
Poles Number 3

YHM1 MOULDED CASE CIRCUIT BREAKER









Company Information



Horizon import & export Co.,ltd was founded in 1998, The company is comprised with 10 factories, including Zhejiang Yinhe cable co.,ltd, Zhejiang Yinhe transformer co.,ltd, Huaxia switchgear co.,ltd. etc… During the past 16 years, we invested abundant resources in both research and development also employee training programs. The company was ranked among 100 tops of Wenzhou private enterprises. "HORIZON" is named as a famous trademark in domestic and overseas markets. Our company has taken the lead in applying IS09001 Quality Management System and ISO14001 Environmental Management System. Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, NCAP, CCC..

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low AND high voltage electrical apparatus including all kinds of cables, transformer, switchgear, circuit Breakers, contactors, relays, starters, switches, panel meters, fuses, and electrical accessories etc.. As a result of our high quality products and outstanding customer service, we have gained a global sales network covered with Russia, South East Asia, Middle East, South America, Africa, and Europe.

We are fully aware of the fact that only "Versatile Staff, Excellent Quality and Advanced Technology" enable us to survive and succeed in today's intensively competitive market. Hence, we will be with overall technology support, good service to meet the requirements of world.









Our Services



Best service;
Best quality;

Best integrated supplier of electrical products;
Best supporting services.





Packaging & Shipping



According to customer's request;

On-time delivery.





Product Description



General:



    MCCB: Moulded Case Circuit Breaker , These are using at High rating currents from 63A to 1600A ,with short circuit and earth leakage protection



    1.1 Electric ratings: AC 690V, 50/60Hz, 10~800A;

    1.2 Mounting mode: vertical and horizontal;

    1.3 Standard: IEC/EN 60947-2



MCCB Application:

    YHM1 MOULDED CASE CIRCUIT BREAKER  is suitable for the circuit of AC50/60Hz,rated current up to 630A,rated operating voltage 690V or less.The series circuit breaker in the distribution network,can be used for distributing the energy or electricity and protecting the circuit and power device against the overload,short circuit and undervoltage.the circuit breaker with frame rated current 400A or less can be used for protecting the motor and starting non-frequent the motor.under the normal condition.it can also be used for making and breaking the circuit ducts conform with IEC60947-2,60947-4.

Note:
(1)No code for distribution circuit breaker,2 represents circuit breaker for motor protection
(2) No code for direct handle operation,D represents motor operation,Z represent rotation handle.
(3) L:represents standard type,M:represents higher breaking type and H:represents high breaking type.

Main technical parameter:

Type In (A) Poles Power consumption Ics/COS Icu/COS Arcing distance (mm)
Fixed Draw-out 400V 690V 400V 690V
YHM1-63L 6-63A 3 20 25 18/0.3 - 25/0.25 - 50
YHM1-63M 25 30 30/0.25 - 50/0.25 -
YHM1-63 4 33 40
YHM1-100L 10-100A 3 35 40 26/0.25 - 35/0.25 -
YHM1-100M 40 50 30/0.25 - 50/0.25 -
YHM1-100H 43/0.25 10/0.5 85/0.2 20/0.3
YHM1-100 2 26 33 30/0.25 - 50/0.25 -
4 53 66
YHM1-225L 100-225A 3 5 65 26/0.25 - 35/0.25 -
YHM1-225M 60 75   - 50/0.25 -
YHM1-225H   10/0.5 85/0.2 20/0.3
YHM1-225 2 40 50 30/0.25 - 50/0.25 -
4 80 100
YHM1-400C 225-400A 3 80 100 20/0.25 - 35/0.25 - 100
YHM1-400L 30/0.25 - 50/0.25 10/0.5
YHM1-400M 90 110 40/0.25 - - -
YHM1-400H 50/0.25 10/0.5 100/0.2 20/0.3
YHM1-400 4 120 150 30/0.25 - - -
YHM1-63L 400-630A 3 130 180 34/0.25 - 45/0.25 -
YHM1-630M 150 200 42/0.25 - 65/0.25 -
YHM1-630H 65/0.25 10/05 100/0.20 20/0.3
YHM1-630 4 200 267 42/0.25 5/07 65/0.25 10/0.5
YHM1-800C 630-800A 3 125 170 20/0.25 - 35/0.25 -
YHM1-800L 30/0.25 - 50/0.25 -
YHM1-800M 135 190 40/0.25 - 70/0.2 -
YHM1-800H 50/0.25 10/05 100/0.2 20/0.3
YHM1-800 4 180 250 30/0.25 - 50/0.25 -
YHM1-1250 800-1250A 3 240 300 50/0.25 35/03 85/0.25 45/0.25







....
