Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > 3 Pin Male M8 Cable Connector (L102-M8-T0305)

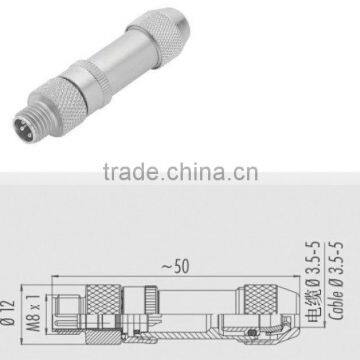

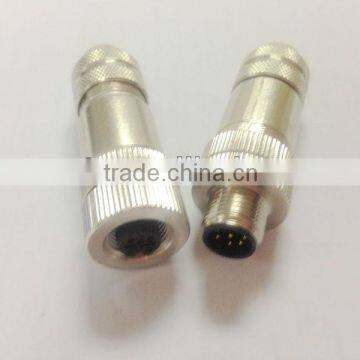

3 Pin Male M8 Cable Connector (L102-M8-T0305)
US$ 1 - 3
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
SZCNT
Model Number:
L102-M8-T0305
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
M8 4 Pin Sensor ConnectorUS$ 1 - 3MOQ: 10 Pieces -
M8 Connector 3 Poles Circular Connector (L102-M8-T0306)US$ 1 - 3MOQ: 10 Pieces
-
4 Poles Connector M8 Electrical Metal Connector (L102-M8-T0406)US$ 3 - 5MOQ: 10 Pieces
-
Earth CableUS$ 2 - 3MOQ: 10 Pieces
-
Plastic Circular Bayonet ConnectorNegotiableMOQ: 100 Pairs
Place of Origin
China
Brand Name
SZCNT
Model Number
L102-M8-T0305
Type
Other
Application
Other, Audio & Video
Gender
Male
Specifications
3 pin male M8 cable connector (L102-M8-T0305)rated current: 4A
degree of protection: IP67
rated voltage: 60V
| number of contacts | 3 |
| connector locking system | screw |
| termination | screw, solder |
| wire guage | screw 0.14-0.5mm2 (AWG26-20), solder 0.25mm2 (AWG24) |
| Cahie outlet | 3.5-5mm |
| degree of protection | IP67 |
| mechnical endurance | biatec>50 mating cycles, screw>100 mating cycles |
| working temperature | -40°C~+85°C |
| rated voltage | 60V |
| rated impulse voltage | 1500V |
| pollution degree | III |
| over votage catalogorie | II |
| material group | III |
| rated current (40°C) | 4A |
| contact resistance | ≤3MΩ |
| material of contact | CuSn (bronze) CuZn(brass) |
| contact plating | Au (gold) |
| material of contact body | PA (UL 94 HB) |
| material of housing | PBT/PA/CuZn (brass) |
