L102-M12-T0501 5 pins connectors
USD $3 - $6
/ Piece
50 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SZCNT | Model Number: | L102-M12-T0501 |
Type: | Other, Power | Application: | Automotive | Gender: | Other, Female and male |
Product Description
Specifications
1.To be used safely and conveniently.2. connect and separate quickly.
3.push-pull connection and screened electrical connect

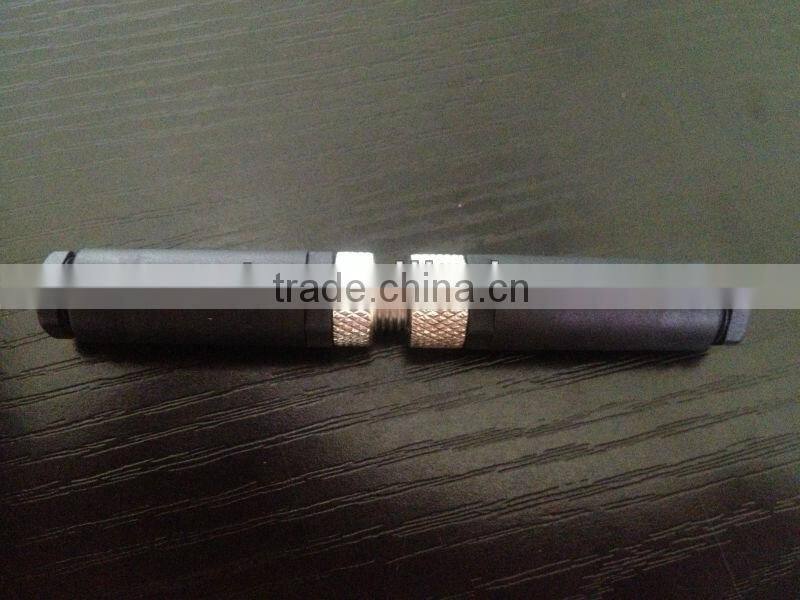

L102-M12-T0501 5 pins connectors
number of contacts | 3 |
connector locking system | screw |
termination | screw, solder |
wire guage | screw 0.14-0.5mm2 (AWG26-20), solder 0.25mm2 (AWG24) |
Cahie outlet | 3.5-5mm |
degree of protection | IP67 |
mechnical endurance | biatec>50 mating cycles, screw>100 mating cycles |
working temperature | -40°C~+85°C |
rated voltage | 60V |
rated impulse voltage | 1500V |
pollution degree | III |
over votage catalogorie | II |
material group | III |
rated current (40°C) | 4A |
contact resistance | ≤3MΩ |
material of contact | CuSn (bronze) CuZn(brass) |
contact plating | Au (gold) |
material of contact body | PA (UL 94 HB) |
material of housing | PBT/PA/CuZn (brass)
|
3.Certification
4.Incoming Material Test Reports
5.Work Environment
6.Producing Line
SHENZHEN CONNECTOR TECHNOLOGY CO.,LTD will provide best products and best service for you.Welcome to take some samples for test.
ATTN:Jilly Liu
Tel:0086-18319016552
The E-mail is in the products' picture
