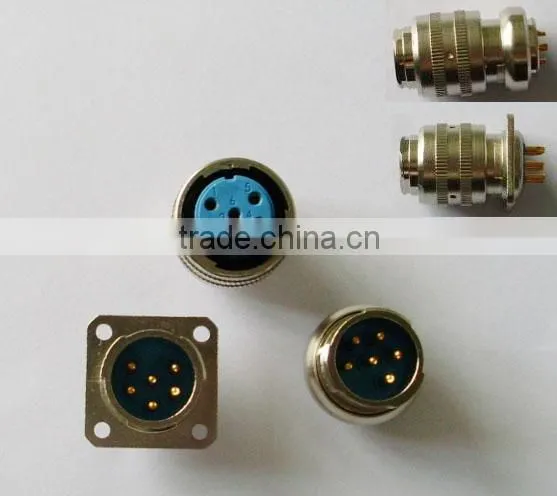

interchangeable Jaeger connector

Receptacle, plug, cable connecting plug

Locking: quick connection of the plug by a spring-loaded coupling system 1/6 turn.

protection: IP50 to IP54 with potting compound into the shell and gasket under receptacle.

contacts: 3 to 17 contacts dia 2mm, dia 3mm and or 4mm, with soldering contacts.

Max current rating:15A Dia 2mm,35A 3mm,50A Dia 4mm, in consideration of the number of contacts carrying the current, their diameters, and the temperature increase which is permissible.

Raw material: male and female

contacts: brass with gold finish.

max wire cross section area:

1.34mm2, dia 2mm    3.18mm2, dia 3mm    5.26mm2, dia4mm
