Specifications
metal push-pull electrial connector1.19 pin connector
ntact diameter:0.7
3.rated current:4A
ntact resistance:7.0mo
metal push-pull electrical connector 19 pin connector
I. Technical specifications
| attribute | 19 pin connector |
| contact diameter | 0.7mm |
| contact resistance | 7.0mΩ |
| rated current | 4.0A |
| working voltage | 500V/DC |
| working voltage | 300V/AC |
| insulating resistance | >5,000 MΩ |
| environmental working temperature | -50°C~+125 °C |
| mechanical endurance | >5,000 times |
II. Characteristics
a. quick disconnect connector, electric connector, connectors for electronics
b. they are multi-pith, small-sized, push-pull connection and screened electrical connector.
c. The screened electrical connector can be used safely and conveniently, and can connect and separate quickly.
d. The types of the metal electrical connector: solder and PCB.
e. Socket assemble female. Plug assemble male.
f. According to the surroundings it is divided into general (B) and hermetic (K) type.
III. Applications
communication, electronics and medical equipments and it is specially suited for electrical connectors in some instruments and equipments which should be screened and be connected and separated frequently.

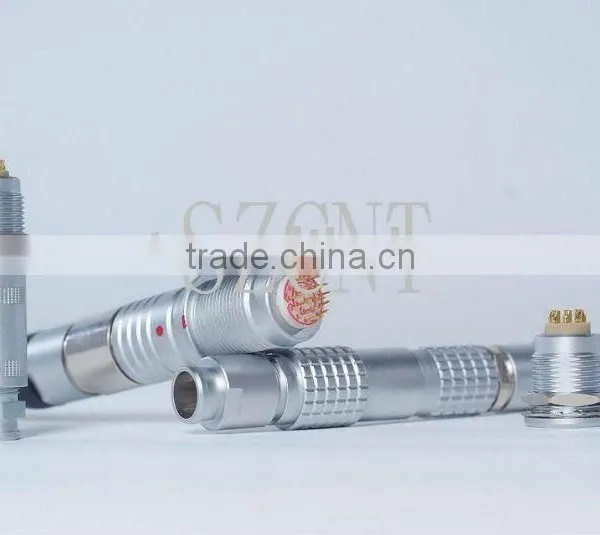

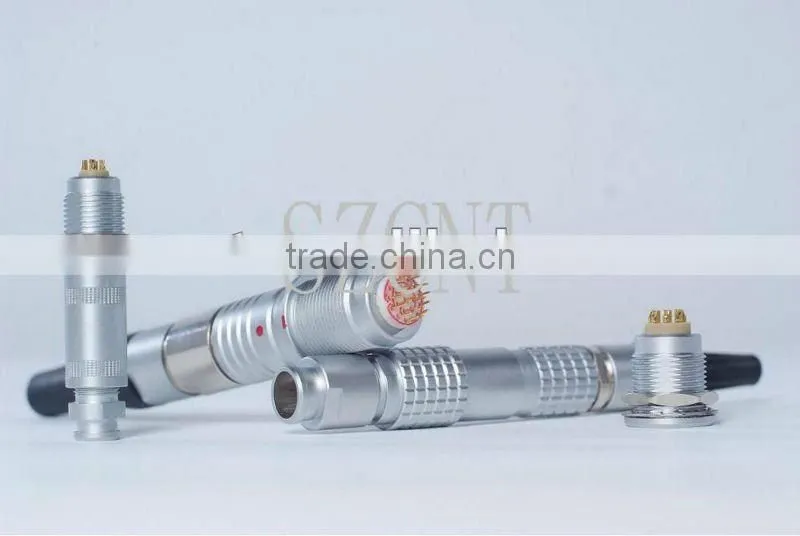

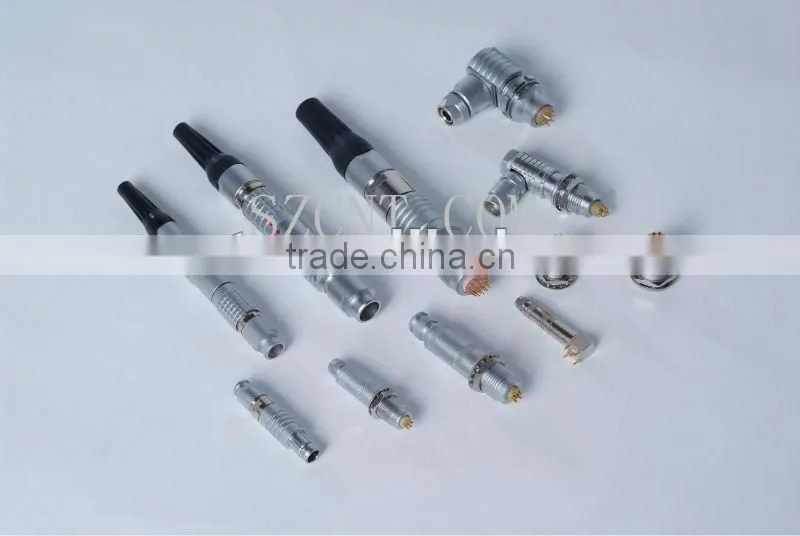

IV. Sample pictures and drawings
