Home > Products > Steel Flat Bar > DIN 1.4568 Stainless Steel Flat Bar Manufacture And Factory Price
DIN 1.4568 Stainless Steel Flat Bar Manufacture And Factory Price
- 10000 Ton / Tons per Month
- dalian
- T/T L/C D/P D/A
Product Details
Standard: | ASTM, AISI, GB, JIS | Dimensions: | 5.5mm-500mm | Grade: | 600 Series |
Place of Origin: | Jiangsu, China | Brand Name: | X7CRNIAL17-7 | Model Number: | X7CRNIAL17-7 |
Type: | Round | Application: | atuo parts | Shape: | Round |
Certification: | ISO | Special Use: | Valve Steels |
Product Description
AISI 631/JIS SUS631/DIN17-7PH/GB 0cr17ni7al/DIN X7CRNIAL17-7 /1.4568 stainless steel
Standards:ASTM,JIS,GB,EN(DIN,BS,NF) Or Per as clients’ requires.
Product Basic Information:
Material | ASTM 631 | ||
Chemical Composition | Mechanical Properties(In Quenched & Tempered State) 565 °C | ||
C | <0.09 | Tensile strength(MPA) | >380 |
Si | <1.00 | Yield strength (MPA) | >1030 |
Mn | <1.00 | Elongation(δ5/%) | >20 |
Cr | 16.00-18.00 | Reduction in Area (ψ/%) | - |
Mo | - | Impact (J)v | - |
P | ≤0.035 |
Hardness | <229 |
S | ≤0..030 | ||
N | - | ||
Ni | 6.50-7.75 |
IT can offered in wire rod form,to produce atuo parts
THIS stainless steel is Used as a spring, hot meter components, Half austenitic precipitation-hardening stainless steel, is a kind of unstable austenitic stainless steel, the steel solid solution state, at room temperature for austenitic organization, after cold working, cold treatment, or heated to 750 degrees to adjust processing, austenite transformation martensite, then aging treatment, the second phase precipitation on the martensitic matrix can be and make the steel reinforcement.Al's role is as and other elements to form heavy play hardening phase such as (Ni3Al).In the process of aging, the cooling is not flash, it's hard to strengthen effect
2.Product Application Areas:
Our products have been used in all kinds of areas, such as aviation,aerospace,navigation,nuclear energy,chemical industry,
electronic information,achine manufacture, petrochemical, automotive,instrument and meter, Communication ,transportation, and medical instruments, etc.
3.Similar steel grade & equivalent steel materials:
USA | Japanese | Gemany | British | France | International | Chinese |
ASTM&AISI&SAE | JIS | EN DIN | EN BS | EN NF | ISO | GB |
631 | SUs631 | X7CrNiA117-7(1.4568) | ------ | 0Cr17Ni7AL |
High strength and resistance to intergranular corrosion and chloride stress corrosion is improved obviously. Stainless steel has great corrosion performance.
Product Sales Information:
Material | Stainless Steel |
Size | Diameter:20mm-1000mm Length:500mm-6000mm |
Origin place | Made In China |
Delivery Condition | Hot rolled,cold drawn,forged |
Surface require | Black,grinding,bright,polish |
Heat treatment | Quenched,Tempered,annealed |
Packing | seaworthy packing ,wooden case ,carton,woven bag or at client's requires |
Delivery time | In 10-50 days |
Trade Term | EXW,FOB,CIF |
Payments | T/T or L/C at sight |
Port | China main Port,such as shanghai,Dalian,Shenzhen port. |
MOQ | 1 Ton |
Company Main Products:
Alloy Steel | 5140,5115,5120,5130,5145,4118,4130,4135,6150,5115,4142,4130,4118,6150,4140,4720,4320 ,E9310,8620,4340 |
Tool Steel | H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419, SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2 |
Bearing Steel | GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50 |
Spring Steel | 9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150, SUP10,51CrV4,1.8159 |
Stainless Steel | 631 X7CRNIAL17-7 317,sus321,1.405,304,SUS304,1.431,410,SUS410,1.4006,420,1.4021,317.309s, 434,1.446,316L,SUS316L,1.4435,630,1.4542,431,1.4057,201,202,301,304,305.316 |
Certifications:
Factory Manufacture Process:

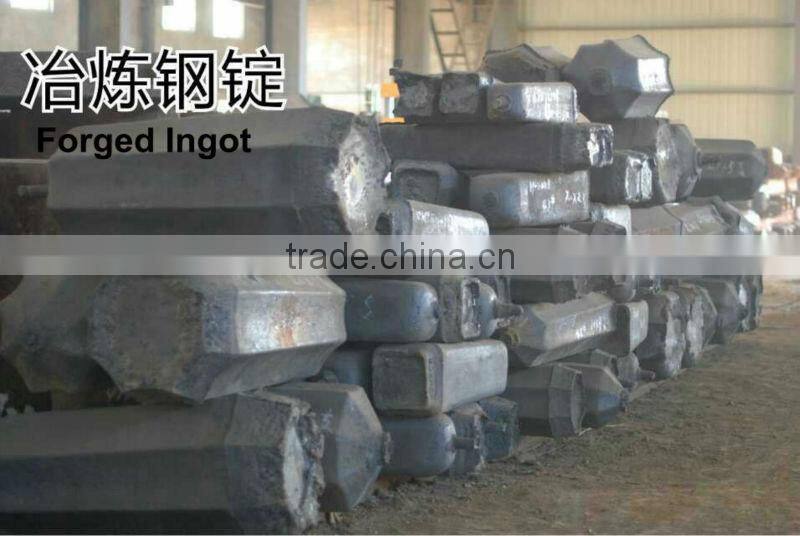

1.Forged Ingot

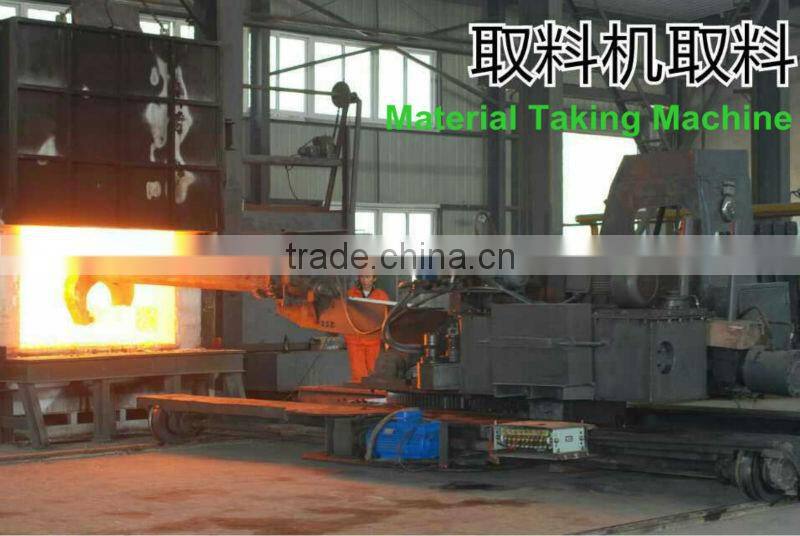

2.Material Taking Machine

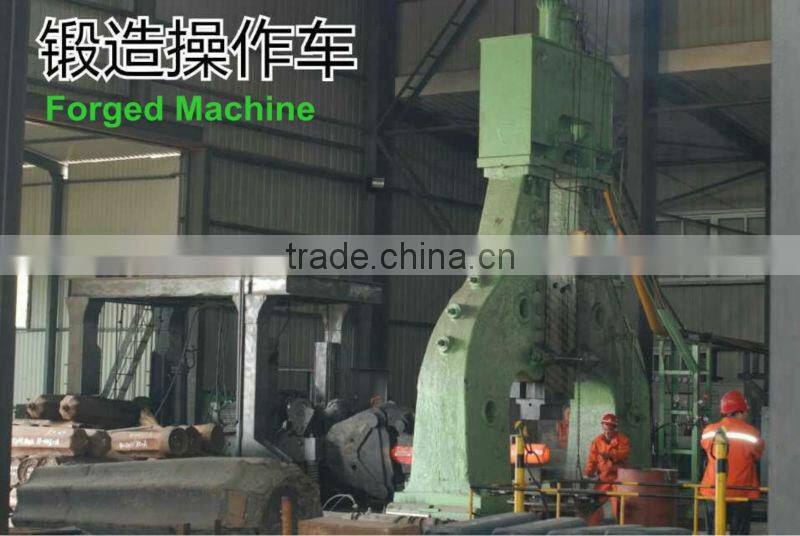

3.Forged Machine
4.Sawing Machine

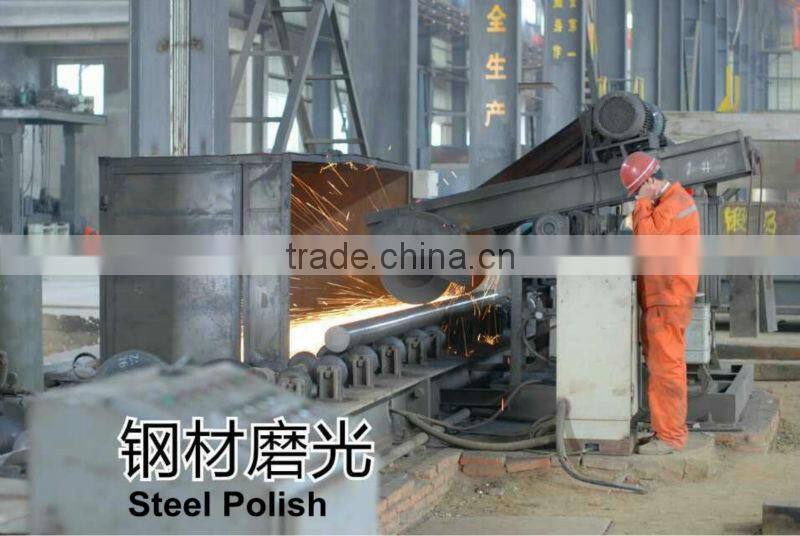

5.Steel Grinding

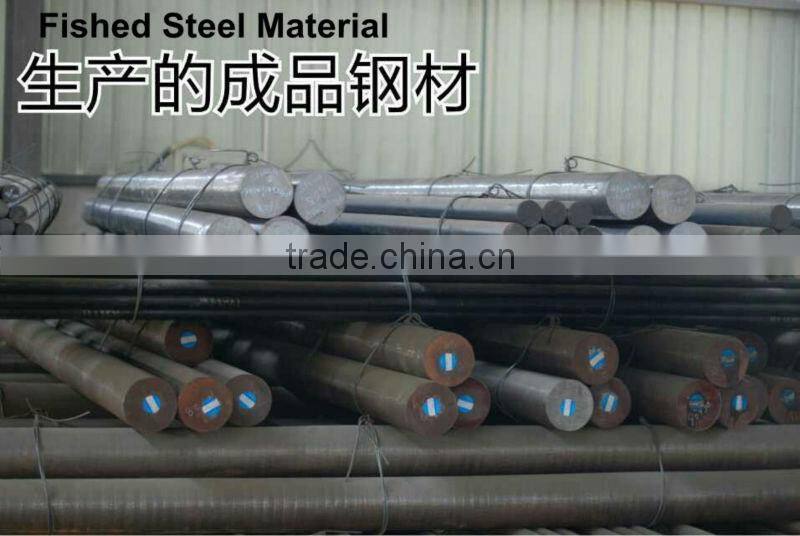

6.Fished Steel Material

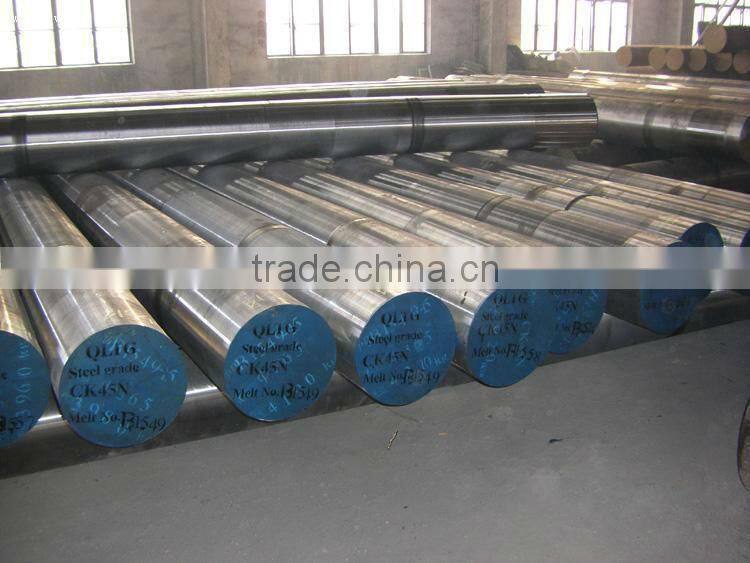

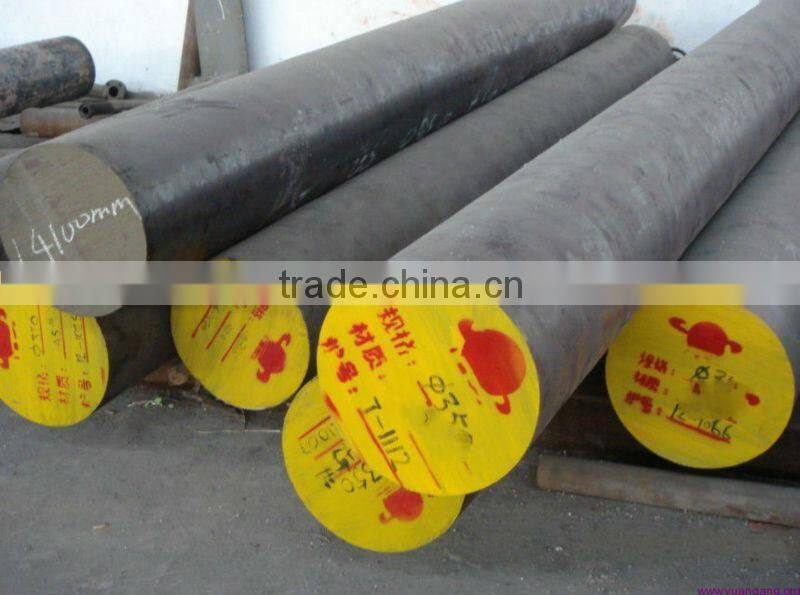

Products stocks:
Surface Polish bars
Surface Bright Bar
Black &Grinding surface bar
