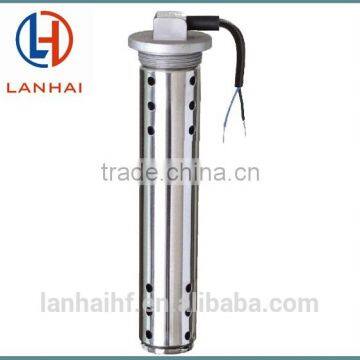

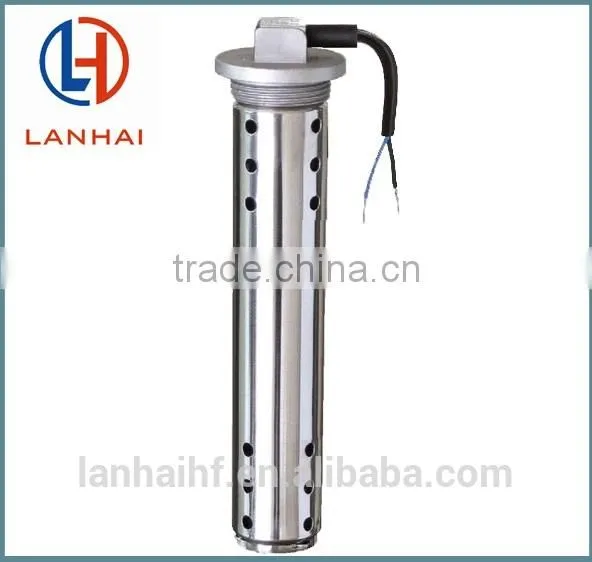

Damping Cover Fuel level Sensor

Product presentation

Materials: The main body is made of SUS 316 or SUS304 stainless steel, with the addition of damping cover for steady output signal.

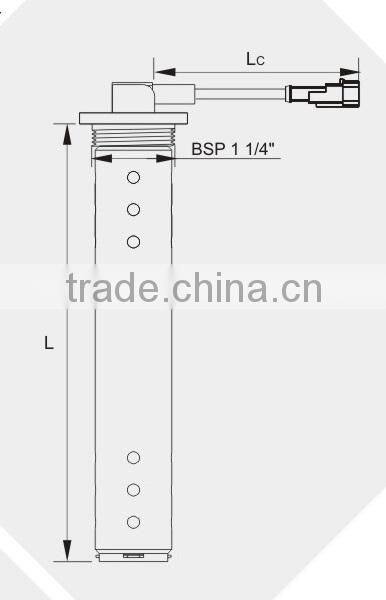

Length range: 150-1200mm. It can also be customized according to your requirements. Please choose SD80 series if the required length is more than 1200mm.

Assembly: SAE standard 5 holes, other assembly way like 5 pieces of M5 screws and 2mm thick NBR gasket. Recommend 2mm thick FPM gasket if used in gas tank

Protection rank: IP67

Product parameter

Applying the principle of magnetic field’s control the reed on-off switch, featuring long using life, anti-vibration, anti-explosion, etc.

Rated power: 125mW

Rated current for alarm switch: 500mA

Wire: PVC material (PA corrugated pipe cover is optional)

Connector: Brand Delphi, Tyco or others is available. It can be customized according to customer’s requirements.

Output signal: Resistance control signal, 0-190Ω,240-33Ω, or customize as requirements. You can also choose current control signal, 0~20mA, 4~20mA or voltage control signal,0.5~4.5VDC,0~5VDC

Precision Range: 10-40mm

Operating temperature: -40℃~+85℃
