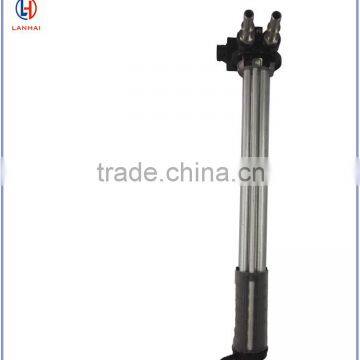

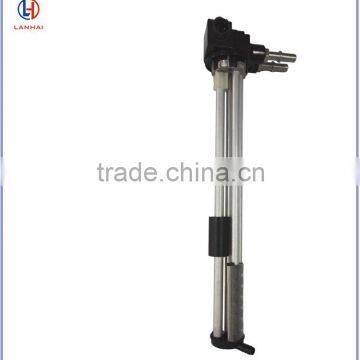

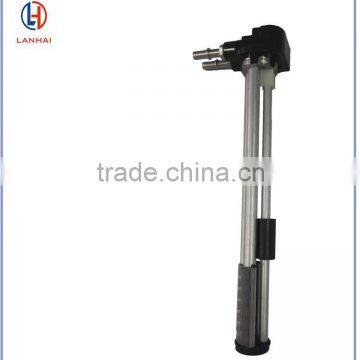

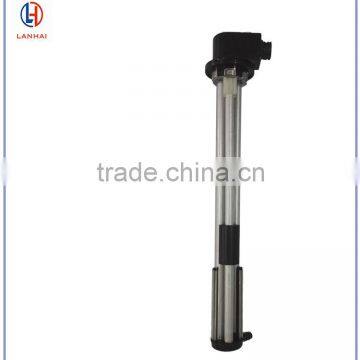

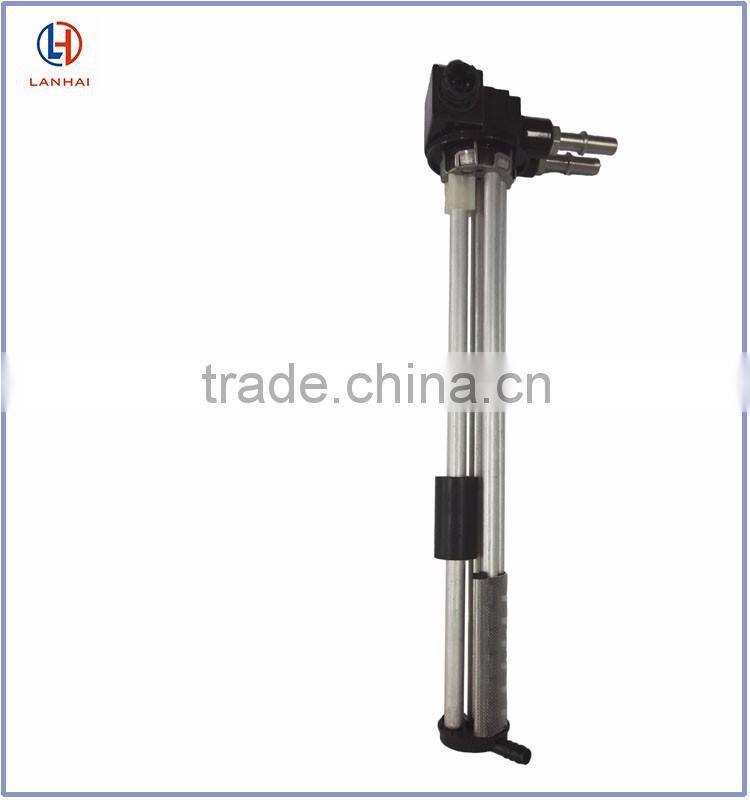

The TX3 series fuel level sensor applies the principle of the liquid flotage and magnetic induction to measure the liquid level. Our product has good anti-corrosion performance, high measuring precision and can prevent oil leakage when turned over. At the same time, light weight make the price very competitive. All these makes TX3 series widely used in famous trucks.
Material: The main body is made of aluminum.

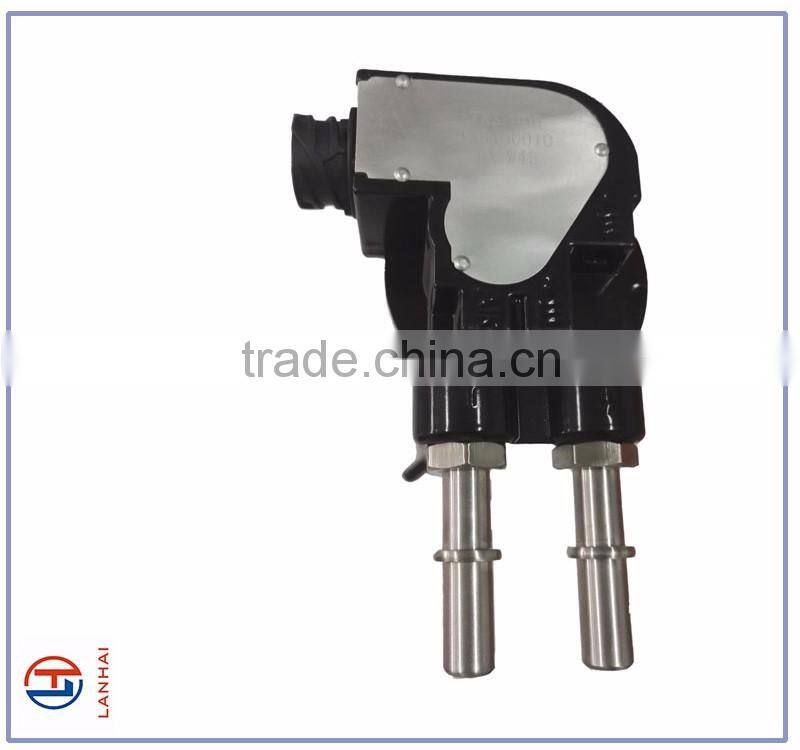

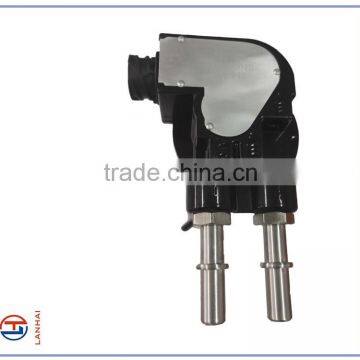

Fitting: The fitting of suction, return pipe have several kings for choosing, such as lock fitting, normal thread fitting, SAE fitting. The air vent, heating suction and return also have two choices-open and close types.
Length Range:230-900mm.
Filter: Outer filter, inner filter or no filter.
Fixation: The sensor is fixed by bayonet and with NBR or FPM gasket for sealing.
Functions
Level indicator
Suction and return fuel pipe
Fuel filter (optional)
Engine heating (optional)
Alarm (optional)
Air vent pipe (optional)
Product Parameter
Rated Power: 125 mW
Rated Current for alarm switch: 500mA
Wire: PVC material ( PA corrugated pipe cover is optional)
Connector: Brand Delphi, Tyco, others are available according to requirements
Output Signal: Resistance control signal )~190Ω,240~33Ω, o9r customize as required.
Precision Range: 10~40mm
Operating Temperature: -40°c~+85°c
Protection Range:IP67
| Art. | Length/mm | Output signal |
Alarm | Fitting | Filter | Heating Suction Dia./mm | Suction Dia./mm | Return Dia./mm |
| TX3-690 | 690 | 40~33 | None | Alu. SAE fitting | inner | Ø7.7 | Ø17.8 | Ø11.3 |
TX3-538 |
538 | 0.2~4.0(V) | None | Alu. SAE fitting | outer | Ø 7.7 | Ø 17.8 | Ø11.3 |
| TX3-538 | 538 | 240~33 | None | Normal thread brass fitting | outer | Ø 7.7 | Ø17.8 | Ø11.3 |
| TX3-405 | 405 | 180~10 | None | Brass quick fitting | inner | Ø 7.7 | Ø17.8 | Ø11.3 |
| TX3-615 | 615 | 10~180 | None | Brass quick fitting | inner | none | Ø17.8 | Ø11.3 |
| TX3-525 | 525 | 3~180 | None | Normal thread brass fitting | inner | none | Ø17.8 | Ø11.3 |
| TX3-675 | 675 | 3~180 | None | Brass quick fitting |
inner | none | Ø17.8 | Ø11.3 |
| TX3-615 | 615 | 10~180 | None | Brass quick fitting | inner | none | Ø17.8 | Ø11.3 |
| TX3-530 | 530 | 5.1~185 | None | Alu. lock fitting | outer | none | Ø17.8 | Ø11.3 |
| TX3-528 | 528 | 10~185 | None | Alu. lock fitting | outer | Ø7.7 | Ø17.8 | Ø11.3 |
| TX3-528 | 528 | 980~51 | None | Normal thread brass fitting | outer | Ø7.7 | Ø17.8 | Ø11.3 |
