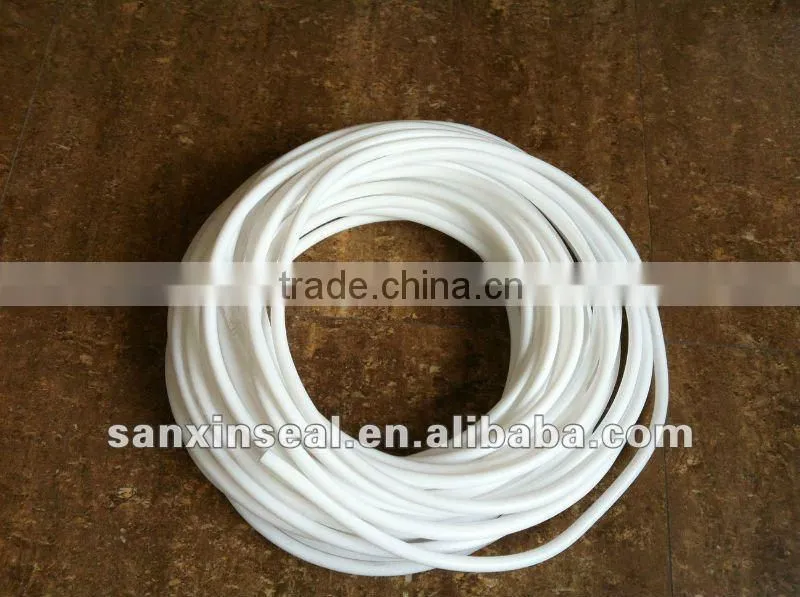

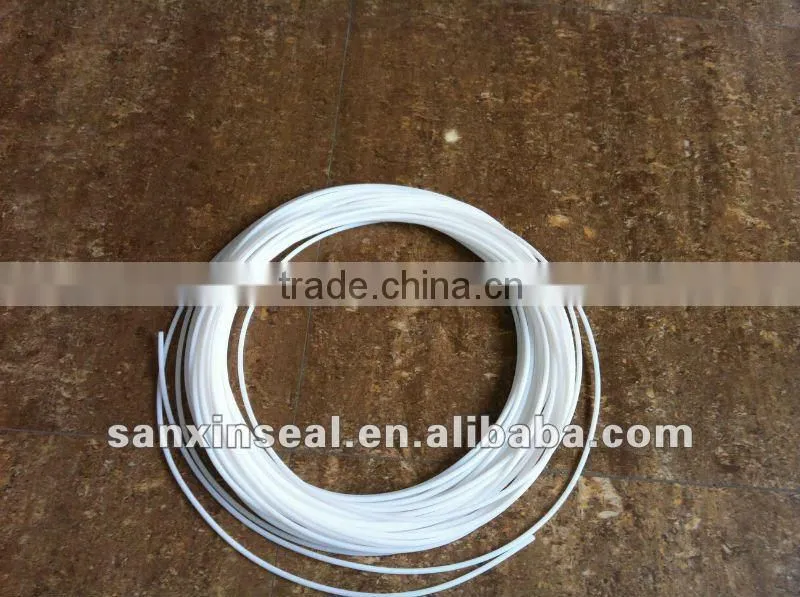

Help Center2mm Ptfe Tube/ PTFE Tube With Graphite,carbon and Moly/300mm 200mm Ptfe Pipe/PTFE Extruded Tube Hose Pipe
Related Products
-
PTFE Extruded Tube /hose /pipe/8mm/8mm Ptfe Tube/4mm TubeNegotiableMOQ: 500 Kilograms -
PTFE Extruded Tube /hose /pipe/8mm Tube/8mm Ptfe Tube/6mm Tube/4mm TubeNegotiableMOQ: 500 Kilograms
-
PTFE Extruded Tube /hose /pipe/8mm Tube/8mm Ptfe TubeNegotiableMOQ: 500 Kilograms
-
Ptfe Tube/ptfe Filled Moulded TubeNegotiableMOQ: 500 Kilograms
-
Ptfe Moulded Tube/ptfe Filled Moulded Tube/ptfe TubeNegotiableMOQ: 500 Kilograms
professional PTFE manufacturer for 20 years
1. Features of PTFE Tube
1)Anti-corrosion in all kinds of chemicals including nitric acid & aqua fortis.
2)Characteristics:Low friction,Virtually no lubrication requirement,Light weight,Resistant to corrosion and abrasion, Impact resistance,Stable chemical properties,Oil resistance,High temperature resistance,Low temperature resistance,water resistance and so on.
3)working temperature:-55~+260°C.
4)Electric insulation;good dielectric in mediums.

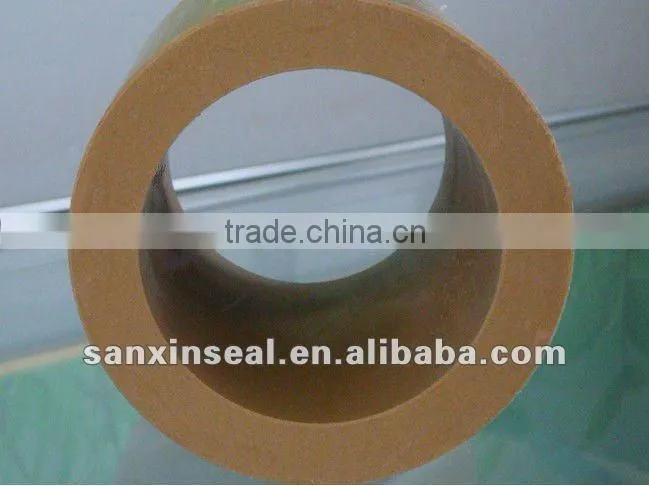

5)filled ptfe tube products(plastic tube pipe) Made of high-speed mixing polytetrafluoroethylene resin and certain filling resin
6)Soft and formable,Outstanding chemical properties etc.
2. Use of PTFE Tube/Pipe
1)electrical insulation parts.
2)sealing parts,automobile parts, corrosive fluid conduit ,connector accessories.
3)Space navigation,In machinery,Civil-construction,Chemical field.
4)In lining ,sealing and lubricating material,Dielectric at any frequencies.
5)In a pipe screw thread joint.
6) Elimination of liquid or gas leak in the pipe.
7) Suitable for high temperature applications and are chemically inert and non-leaching
8)Used as a sleeving for protecting cables,Widely used in high pressure hose applications requiring a long flex and impulse life, etc.
3. Specifications of PTFE Tube/Pipe

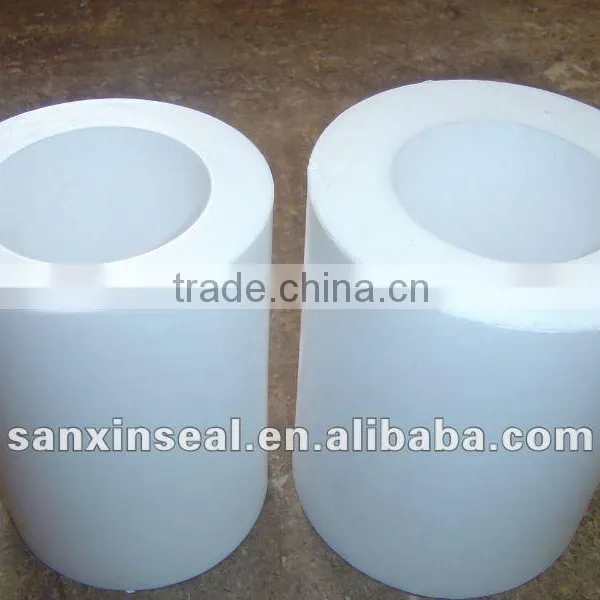

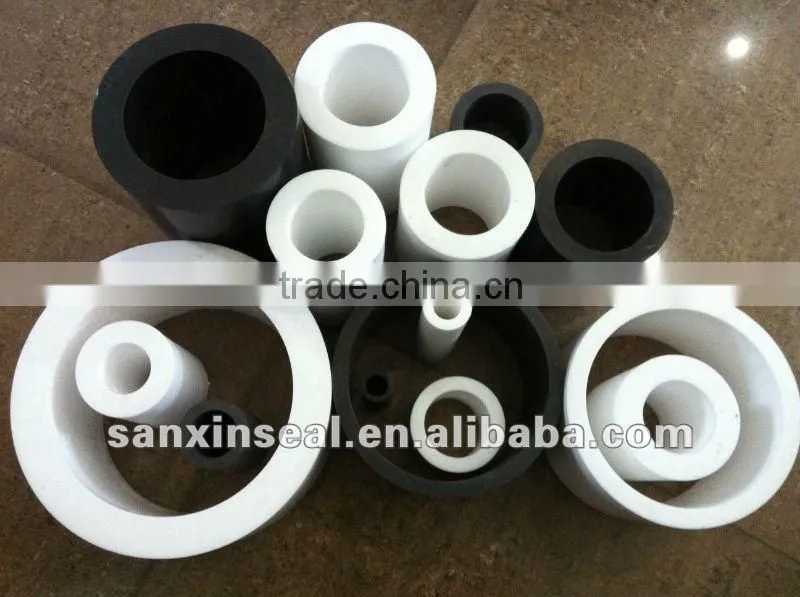

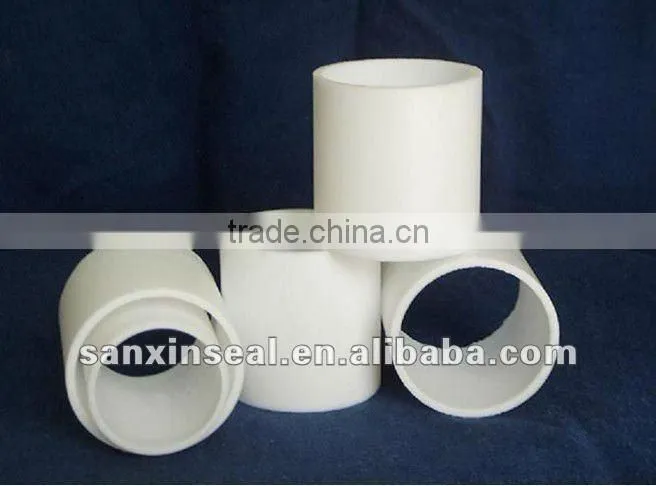

PTFE Tube/Pipe(moulded)
| OD | Wall Thickness(mm) | length(mm) |
| Φ8~Φ25 | ≥2 | 100~150 |
| Φ26~Φ50 | ≥2 | 100~200 |
| Φ51~Φ100 | ≥5 | 100~200 |
| Φ51~Φ100 | <5 | 100~200 |
| diameter ≥Φ100 | ≥5 | 100~200 |
custom sizes and colors available upon request.
Main technical indexes
| NO. | Item | Unit | Data |
| 1 | Special gravity | g/cm² | 2.10~2.30 |
| 2 | Hardness | shore D | 51~60 |
| 3 | Tensile strength | Mpa | ≥15 |
| 4 | Ultimate elongation | % | 15 |
| 5 | Working temperature | °C | -180~+260 |
| 6 | Melting point | °C | 327 |
| 7 | Yield strength | Mpa | 23 |
| 8 | Density | kg/m³ | 2200 |
| 9 | Coefficient of friction | / | 0.10 |
