china industrial electric thermal oil heater sale for chemical industry

Main technical parameters:

1.Type:BGY65-380/220

2.Explosion-proof grade: Exd II BT4

3.Protection class:IP66

4.Shell design pressure:1.8MPa

5.Working power:220KW

6.Shell design temperature:230℃,working temperature:200℃

7.Heating medium: HTF

8.Heatingdensity:2.35W/cm2

9.Tube side design pressure:1.8MPa,working pressure:1.45MPa

10.Tube side design temperature:100℃

11.Tube side working temperature:30-70℃

12.Tube side heating medium: Crude Oil and Natural Gas

Description:

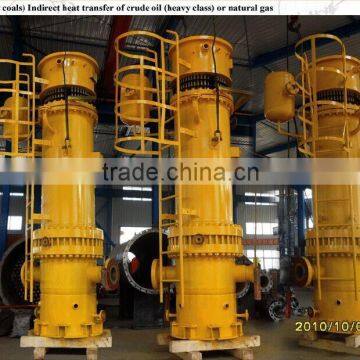

Indirect heating electric heater is a efficient and energy-saving equipment which set the heating and heat exchange as a whole. It is made by vertical structure that mainly composed of three parts which like container shell, electric heating tube, heat exchange tube and expansion tank.

Heat exchange tube inside the indirect heating electric heater are all arranged evenly, then heated material passed into the heat exchange tube, electric heating tube installed in the heat exchange tube outer ring, heating the conduction oil which inside the shell directly, then conduction oil heating the material that in the heat exchange tube indirectly to process requirements of the temperature.

Features:

It is a new type of science and technology innovation product and has won a number of invention patents. This heater is mainly used in heating flammable, combustible and high pressure medium which has advantages like high thermal efficiency, quick heat transfer, occupies less space and safe and reliable.

Application:

Indirect heating electric heater made by our company is widely used in large petrochemical company such as Daqing Oilfield,Shenyang Blower Factory,Offshore Platform and CNOOC and so on. Besides, it can also be used for heating and transporting heavy oil.

Serial automatic constant temperature SCR voltage regulator cabinet:

Our factory produces Model YTFB automatic temperature controlled SCR voltage-regulating cabinet (referring to the voltage regulator thereinafter) which can be widely used in power plant, petroleum, oil exploitation, chemical industry, aerospace, offshore platform etc.It can heat various kinds of gases and liquids such as water coal gas, hydrogen, nitrogen, ate, crude oil, heating conducting oil, chloromethane etc.,and can make voltage regulation and constant temperature.

As the trigger control circuit (referring to the trigger thereinafter) adopting special integrated circuit and interlligence,it can obviously rise up stability and reliability of the voltage regulator.It has a serial of advantages of small volume, light weight,high efficient,long service of life,flexible control, smooth regulating, good symmetric three phases and easy maintenance,especially the starting (operation) of the large power electric heater has no shock and fluctuation agains the power network in the factory area,and it has manual and automatic control function to measure and control temperature,digital setting,automatic lowering voltage to reach constant temperature finally therefore it is really the most ideal equipment in heating temperature control or voltage-lowered power supply devices.

Products On Site:

Zhenjiang YuTai Explosion-proof Electric Heater History:

Established in 1983, Zhenjiang YuTai Explosion-proof Electric Heater Co., Ltd focus on manufacturing the exposion-proof electric equipments and elements.

Relying on our excellent quality, We have got a lot of certificates, such as ATEX,CE,CCS and so on.

We have nearly 40 patents which honored us the High-tech enterprise of Jiangsu province.
