Specifications
1.Hotel RFID card door lock manufacturer2.Pure copper in silver color
3.CE/RoHS/FCC.
4.Hotel system
5.Quality assurance

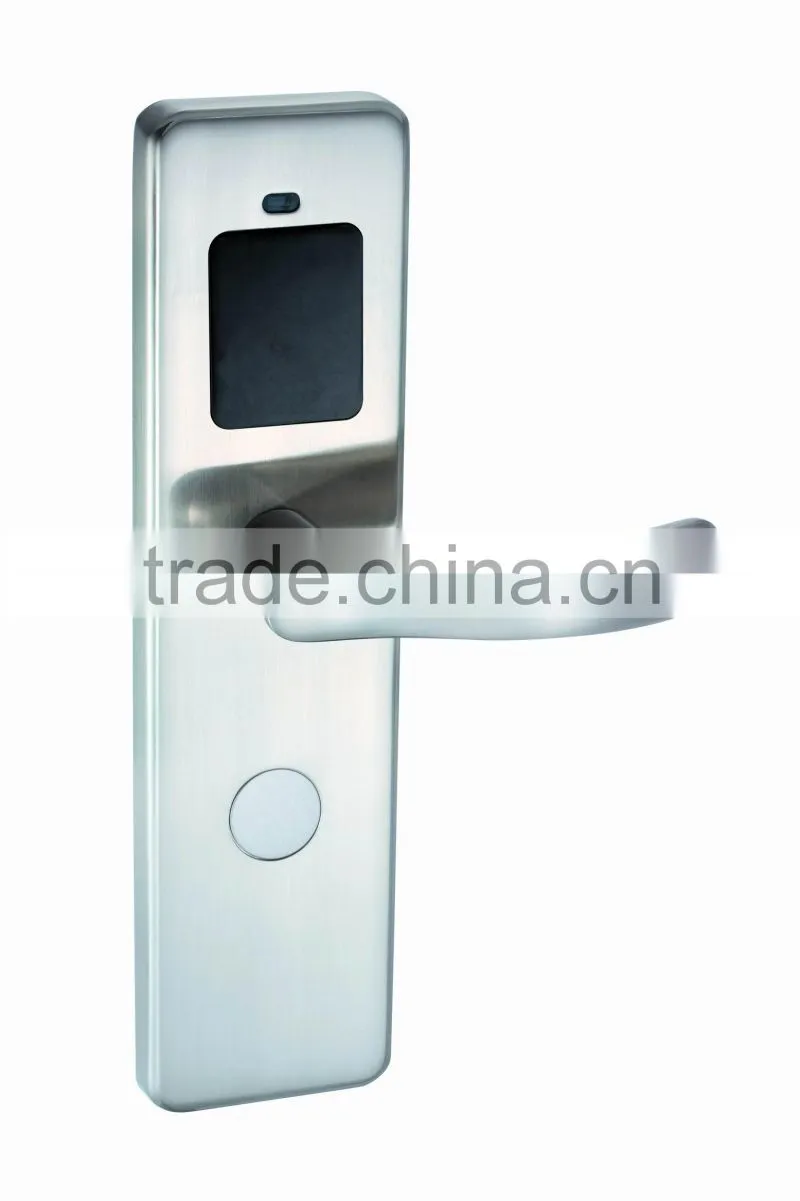

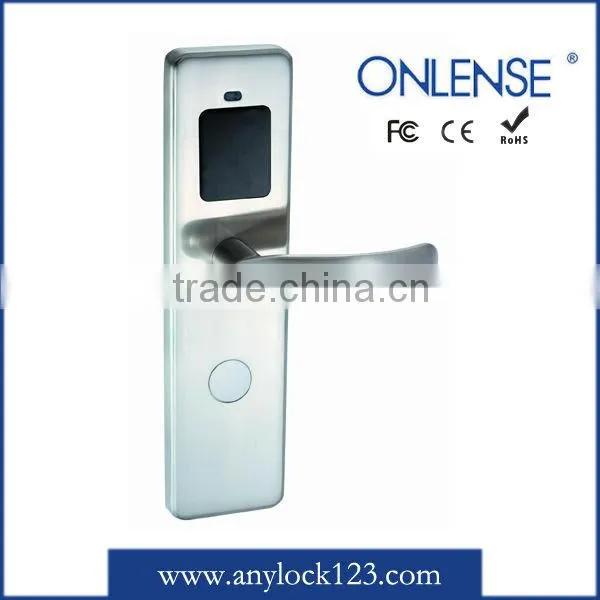

Description of Electronic hotel RFID card door lock 8900RFS
1.Copper material in silver color, looks elegant, modern, fashion, anti-oxidation and anti-cautery, makes the lock look new all the time.
2.Parameter of Electronic hotel RFID card door lock 8900RFS

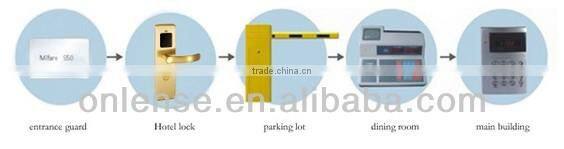

3.The usage of one card pass system in this Electronic hotel RFID card door lock
One-card-pass, use one Mifare-1 card to unlock the door , which is good at anti-forgery, high security and high capacity that enables sector management and independent encryption(S50 card divided into16 sectors)
4.Door conditions for Electronic hotel RFID card door lock :
Two kinds of mortises available, European standard and American standard, made by stainless steel high quality for economical hotel.
Mortise A (European standard): The thinkness of the door is 28-58mm, the depth of the door side (the distance from door side to the center of the door hole) is 80mm. If the door has decorative bar, the distance from door side to the decorative bar should be over 90mm.
Mortise C (ANSI standard): The thinkness of hte door is 38-58mm, the depth of the door side (the distance from door side to the center of the door hole) si 110mm. If the door has decorative bar, the distance from the door side to the decorative bar should be over 110mm.
Our Value
Dissociative structure:
The Handle will turn dissociative when the door is locked, decrease the damage to the lock casued by outside force.
Stainless steel axis part:
The key part axis will take over all force when open the door, so the stainless steel material enable it can be used for more than 1 million times.
Localizer:
A molded type of localize, makes the lock core work stable and steadily.
PC control panel:
1.Adopt chips from brands like Philips, Atmel, make sure the lock save energy and durable.
2.Researched by Onlense to maintain stable system update, namely further tech-development possibility for users.
3.The sealed process enable the preventions from mould, bacteria and moisture to ensure stable performance.
Onlense System
System factors: Door lock, intelligent card, computer, management software, encoder, energy saving switch.
Main Functions: Use the computer and the software to issue cards of different rank and purview, to actualize ranking management.
Basic Technical Function Index of Electronic hotel RFID card door lock:
RFID card door lock index:
| Power Supply: | DC6V,use of 4pcs of AA batteries. |
| Supply Voltage: | DC4.5v-6.5v, normal status, blue light flash and sound once; when the voltage is below DV4.5v, the red light flash after the blue light flash, sound twice, in this situation, the lock can be used about 200 times. |
| Static Power Supply: | <10 u A. |
| Dynamic Power Suppy: | <150m A |
| Inductive Distance: | 10-30mm |
| Open time: | It will automatically lock inside after open it once, or lock again if the door is not opened in 3 seconds. |
| Lifetime of battery: | Under normal situation, the lock can keep working last 1 year, be open more than 20000 times |
| Record inside the lock: | 1000 records for standard type|(include open by mechanical key) |
| Setting Requirement: | Working temperature: 0'C-70'C, humidity:15-92%max. |
Mifare-1 card index in Electronic hotel RFID card door lock (for one card pass function):
| Tech spec: | PHILIPS Mifare-1 card, accord the ISO14443 standard. |
| Craft: | The electronic module and induction coil are inserted into the PVC. |
| Card reading: | Close to the inductive area. |
| Card capacity: | S50 card with 8 k bits, 16 sectors with 48bytes each. |
| System logic: | Anti-conflict and allow multi-card oerpation. |
| Read-write features: | Readable, over-writable and encryptable. |
| Frequency: | 13.56MHZ |
| Access rate: | 106kbps |
| Data life span: | More than 10 years. |
Hotel Temic card index in Electronic hotel RFID card door lock :
| Tech spec: | ATMEL inductive card. |
| Craft: | The electronic module and induction coil are inserted into the PVC. |
| Card reading: | Close to the inductive area. |
| Card capacity: | 32 bytes. |
| Read-write features: | Readable, over-writable and encryptable. |
| Frequency: | 125MHZ. |
| Access rate: | 106kbps |
| Data life span: | More than 10 years. |
Certificates of Electronic hotel RFID card door lock
Onlense workshop:
Projects of Electronic hotel RFID card door lock : It is really an ideal product for security guard used in office, hotel and campus, especially in wet condition.
