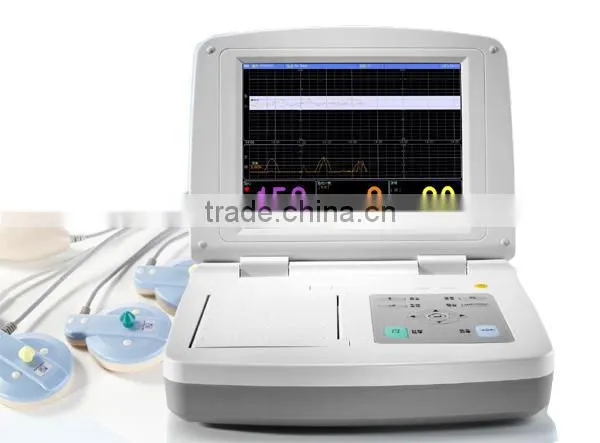

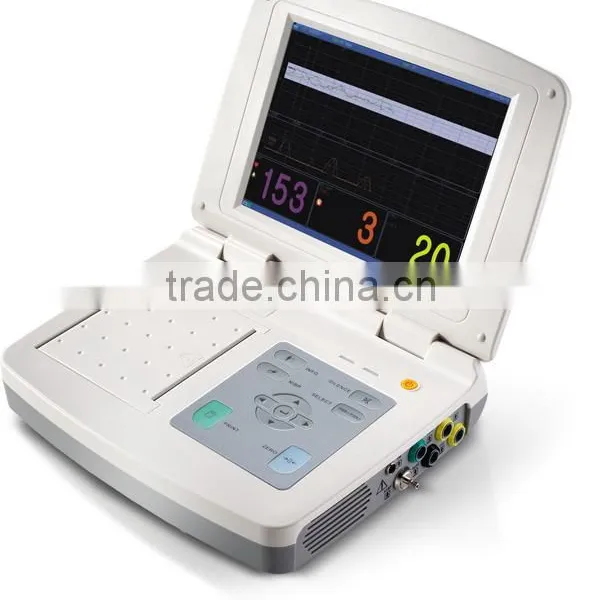

SM-110 FETAL MONITOR

SM-110 FETAL MONITOR thumbnail-1
SM-110 FETAL MONITOR thumbnail-2
SM-110 FETAL MONITOR thumbnail-3
SM-110 FETAL MONITOR thumbnail-4
SM-110 FETAL MONITOR thumbnail-5
SM-110 FETAL MONITOR photo-1
SM-110 FETAL MONITOR photo-2
SM-110 FETAL MONITOR photo-3
SM-110 FETAL MONITOR photo-4
SM-110 FETAL MONITOR photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2011
Factory Size:
1,000-3,000 square meters
Contact Supplier Request Quote Chat Now
Guangzhou Sonostar Technologies Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Specifications

Standard with Fetal irritability, contractions and fetal heart, SM-110 Plus add blood oxygen, pulse rate and blood pressure. SM-

Standard with Fetal irritability, contractions and fetal heart, SM-110 Plus add blood oxygen, pulse rate and blood pressure. SM-110T Fetal Monitor for twins.

Description:
Unicare MCF-21K are high-tech fetal& maternal monitor, it offers a reliable, high-performance solution for fetal monitoring needs in doctors’ practices, clinics and hospitals, from pre-natal check-ups to antepartum monitoring of high-risk pregnancies

Feature:
-Standard configuration: FHR, TOCO,FM , AFM, FMP
-Folded 10.1 inch TFT LCD high-brightness screen
-12 elements water proof pulse doppler transducer
-Event marker for easy documentation of events and kick counts
-Fetal movement profile ( FMP) detects and automatically records gross fetal body movements
-Twin fetus monitoring capabilityand twin signal overlap alarm function
-Configuration audible and flashing alarms
-Built-in high speed thermal printer ( width: 112mm)
-Supporting TCP/IP or wireless connection to the central monitoring station
-Internal Li-ion battery power AC power from external power supply

Specifications:
Physical Specifications
Dimension Weight
Dimension
32cm (W)*26cm (D)*9cm (H)
Weight
standard configuration: 2.8 kg
Operation Environment
Power requirements
AC100-240V , 50/60Hz
Power
50VA
Temperature
5-40°C
Humidity
30-93% non-condensing
Fetal Performance Specifications
Performance Specifications
Display
10.1inch (800X600 pixel) color TFT –LCD
Indicator
Visual on-display and integrated, alarm light, audible alarm
Battery
Internal rechargeable Li-ion battery power
Alarm
Visual on-display and integrated, alarm light, audible alarm
Memory
24-hours memory for fetal traces
Printer
America standard/international standard
Built-in thermal printer (112mm)
1/2/3cm/min real-time printing speed, fast print speed
(stored traces)
Paper
Z-fold, thermosensitive
Record Message
ID, name, age, date, time, print speed etc
CMS
Support connecting to central monitoring station through
LAN (TCP/IP) or wireless connection
Fetal Technical Specifications
Ultrasound (FHR)
Measurement range
US
50 to 240 bpm
Resolution
Display
1bpm
Printer
1bpm
jitter@200 bpm
≤3bpm
Display update rate
0.25second
Beat to bea change(max.) for ultrasound
28bpm
US frequency
1MHz±5%Hz
TOCO
Measurement method
Strain gauge sensor element
Sensitivity
1 unit =2.5g
Resolution
1 unit
Measurement range
500 units
Baseline setting
0, 5,10, 15, 20 can be selective
Update rate
0.25 second
Auto offset correction
3 second after connecting the transducer
Auto zero adjust

TOCO value is set to zero negative
following
a negative .Measure value for 5 seconds
Auto
Fetal Movement (AFM)
Technique
Pulsed doppler ultrasound
Range
0-100%
Resolution
1%
Automatic fetal movement actograph
Manual fetal movement mark
Maternal
ECG (MECG)
Heart rate range
30~300bpm
Resolution
1bpm
Accuracy
±1bpm/ ±1%
Leads
I, II, III, avL, avR, avF, V
Sweep speed
12.5mm/s, 25mm/s, 50mm/s
Gain selection
x 0.25, x0.5 ,x1, x2
Operation mode
diagnostic, monitor, surgery
Temperature (TEMP)
Technique
Thermistor probe CYSI 400 series compatible
Measurement range
0°C-50°C
Accuracy
±0.1°C
