Specifications

-22 inch color LED Touch Screen
-With multiple probes to fit different uses and budgets

Download the catalog

Feature:

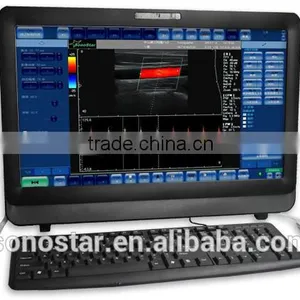

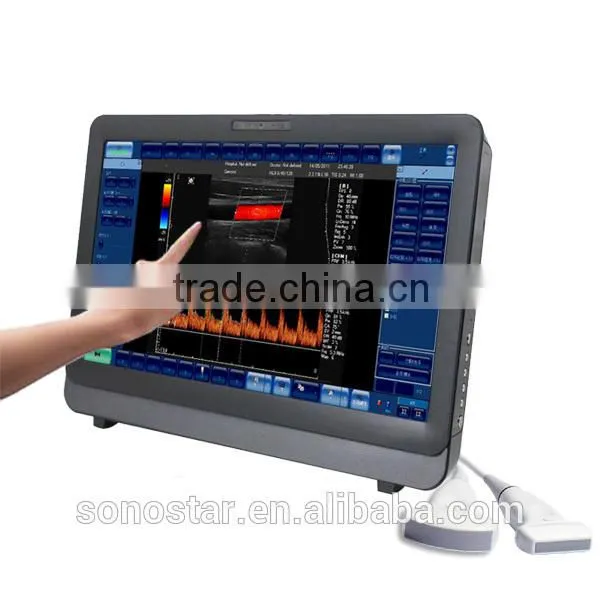

-22 inch color LED Touch Screen
-With multiple probes to fit different uses and budgets
-Imaging Mode: B, BB, M, CD, PWD, CWD, DirPwr, Pwr
-High Definition Multiple Color Doppler mode imaging, include supports most Doppler imaging and advanced imaging processing for cardiac, vascular access, and OB diagnostics.
-Can be equipped in addition with 3D and panoramic image processing for volume reconstruction, visualization, segmentation, and measurement.
-Can install and run all applications with Microsoft? Windows? including patient management systems for better follow up, as well as network tools to access PACS data
-Large volume store and preview, edit records (image, voice comments, cineloop video) by hardisk, USB flash disk, DVD
-Triplex Display: Real-time triplex display B/ Color Doppler/ Pulsed Spectral Doppler (Three TGCs can be adjusted respectively)
-THI (Tissue Harmonic Imaging) technology: Suppress speckle noise, brighten image and improve the image quality
-One-key Optimization: One key for eight-parameter adjustment, easy image optimization.
-Powerful Measurement Software: Versatile clinic-oriented measuring software package
-Image Management: Versatile image format/ large capacity cineloop storage/ preview/ edit
-Can maintain and update by internet
-Space saving by the integration of color doppler ultrasound scanner and office computer, and can either lay on a desk or be wall mounted.

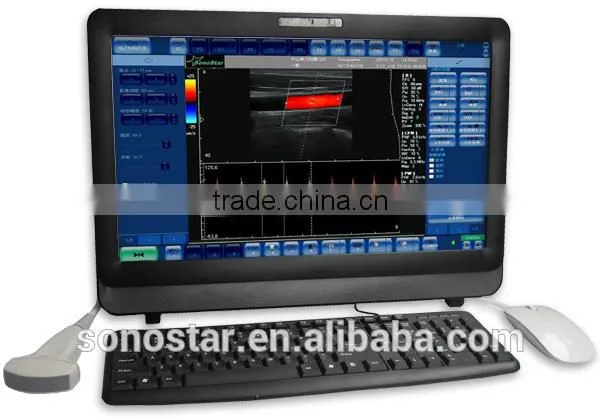

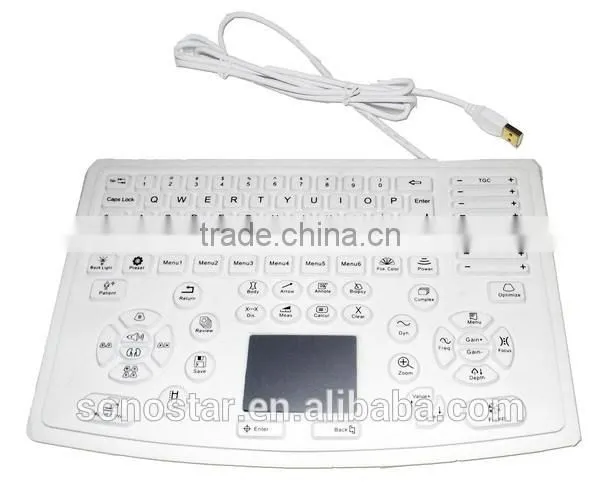

-Can be controlled either through a regular PC keyboard and a mouse, or a dedicated ultrasound keyboard.
-Except general use, special suit for use in operation room or ambulances

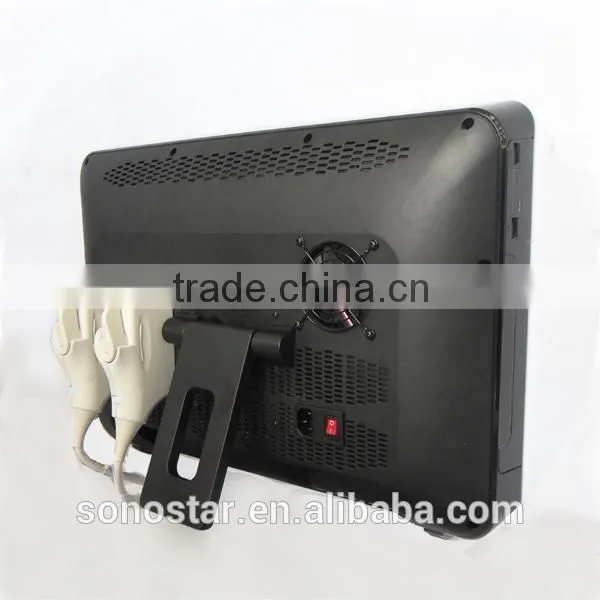

-2 probe sockets

Imaging Modes



·         B



·         B+B



·         4B



·         B+M



·         M



·         B-steer



·         Compound + Trapezoid



·         Color Doppler (CFM)



·         Power Doppler (PDI)



·         Directional Power Doppler (DPDI)



·         Pulsed Wave Doppler (PWD)



·         B+PWD (Duplex)



·         B+CFM/PDI/DPDI+PWD (Triplex)



·         High Pulse Repetition Frequency (HPRF)



·         Tissue Harmonic Imaging (THI)







Ultrasound imaging



·         ultrasound image size: automatically adjustable to screen resolution



·         gray scale: 256



·         color scale: 256



·         full motion and full size real-time ultrasound imaging, up to 120 fps (depends on selected scan depth, scan angle, focus mode, High Line Density setting, computer speed)



·         cineloop recording/play: several thousands frames (depends on computer memory size and scan mode)



·         zoom mode: from 60% to 600% in all modes (Scan, Freeze, B, B+B, 4B, Doppler modes, M-zoom, cineloop and etc)



·         viewing area variable for frame rate maximizing: 6 steps



·         thumbnail mode: up to 32 images



·         "Freeze" mode



·         "Auto Freeze" mode
DICOM
  • Verification SCU
  • Modality Worklist (MWL) SCU
  • Modality Performed Procedure Step (MPPS) SCU
  • Store SCU (images, cines)
  • Print SCU (grayscale, color)

Interface Customization
  • the set of predefined skin schemes for software interface
  • the set of predefined buttons images
  • Multilanguage support, languages:
    • Chinese
    • English
    • German
    • Italian
    • Korean
    • Lithuanian
    • Magyar
    • Polish
    • Romanian
    • Russian
    • Spanish
  • B+M, B+PW layout position, size
  • ultrasound area size
  • font size

General Measurements and Calculations
  • B and Color Doppler mode general measurements and calculations
    • Distance
    • Length (method: 1 trace)
    • Area, Circumference (methods: 1 ellipse, 1 trace, 1 distance)
    • Volume (methods: 1 distance, 2 distances, 3 distances, 1 ellipse)
    • Angle (methods: 2 distances, 3 distances)
    • Stenosis % (methods: 2 distances, 2 ellipse or trace areas)
    • A/B Ratio (methods: 2 distances, 2 ellipse or trace areas, 2 ellipse or trace circumferences)
  • M mode general measurements and calculations
    • Distance, Time, Velocity
    • Heart Rate (methods: 1 beat, 2 beats)
    • Stenosis % (method: 2 distances)
    • A/B Ratio (methods: 2 distances, 2 times, 2 velocities)
      • PW mode general measurements and calculations
        • One-point PW measurements and calculations:
          • Velocity
          • Pressure Gradient (PG)
        • Two-points PW measurements and calculations:
          • Velocities difference
          • Pressure Gradients (PG) difference
          • Time interval
          • Acceleration
          • Resistivity Index (RI)
          • Heart Rate (methods: 1 beat, 2 beats)
          • Velocity minimum and maximum
          • Pressure Gradient (PG) minimum and maximum
        • Trace-based PW measurements and calculations:
          • Trace Time
          • Trace Velocity min, max, mean
          • Trace Pressure Gradient (PG) min, max, mean
          • Velocity Time Integral (VTI)
          • Pulsatility Index (PI)
        • A/B Ratios of one-point PW measurements:
          • Velocities A/B Ratio
          • Pressure Gradients (PG) A/B Ratio
        • A/B Ratios of two-point PW measurements:
          • Velocity differences A/B Ratio
          • Pressure Gradient (PG) differences A/B Ratio
          • Time differences A/B Ratio
          • Accelerations A/B Ratio
          • Resistivity Indexes A/B Ratio
        • A/B Ratios of trace-based PW measurements:
          • Velocity means A/B Ratio
          • Pressure Gradient (PG) means A/B Ratio
          • Pulsatility Indexes A/B Ratio
          • Velocity Time Integrals A/B Ratio

      PW mode Human Cardiology measurements and calculations
      • Left Ventricle: LVOT Diam, LVOT VTI, LVOT Vmax, SV (Stroke Volume), SI (Stroke Volume Index), CO (Cardiac Output), CI (Cardiac Index), dP:dt (Delta Pressure : Delta Time), MPI (Left Ventricle Myocardial Performance Index)
      • Mitral Valve: MVA(PHT) (Mitral Valve Area using Pressure Half Time), MVA using Continuity Equation (LVOT Diam, MV VTI; LVOT Diam, MV Vmax), dP:dt, E/A ratio
      • Aortic Valve: AVA (Aortic Valve Area) using Continuity Equation (LVOT Diam, AV VTI; LVOT Diam, AV Vmax), AVI (Aortic Valve Index), DPI (Dimensionless Performance Index), AV PHT (Aortic Valve Pressure Half Time)
      • Right Ventricle: RVOT Diam, RVOT VTI, RVOT Vmax, dP:dt, RV MPI (Right Ventricle Myocardial Performance Index), MPAP (Mean Pulmonary Artery Pressure)
      • Tricuspid Valve: TVA (Tricuspid Valve Area) using Continuity Equation (RVOT Diam, TV VTI; RVOT Diam, TV Vmax); TV E/A ratio, TV PHT
      • Pulmonic Valve: PVA (Pulmonic Valve Area) using Continuity Equation (RVOT Diam, PV VTI; RVOT Diam, PV Vmax), PVI (Pulmonic Valve Index), DPI (Dimensionless Performance Index), PV PHT (Pulmonic Valve Pressure Half Time)
      • Pulmonary Vein; Hepatic Vein
      • Shunts: Qp:Qs (Pulmonary-Systemic Flow Ratio)
