Product information
Material
Galvanised steel
Galvanized quantity
60~275 g/m2
Thickness
0.35~1.0mm
conventional Length:
3000mm
Product specifications can be customized according to customer's requirements
Advantage
- Good quality galvanized steel is produced from large and advanced production line, high strength and good flexibility
- Continuous hot dip galvanizing process, deep zinc thickness, corrosion resistance.
- Nice and special design on surface, easily to fix the screw
- High strength framework for gypsum

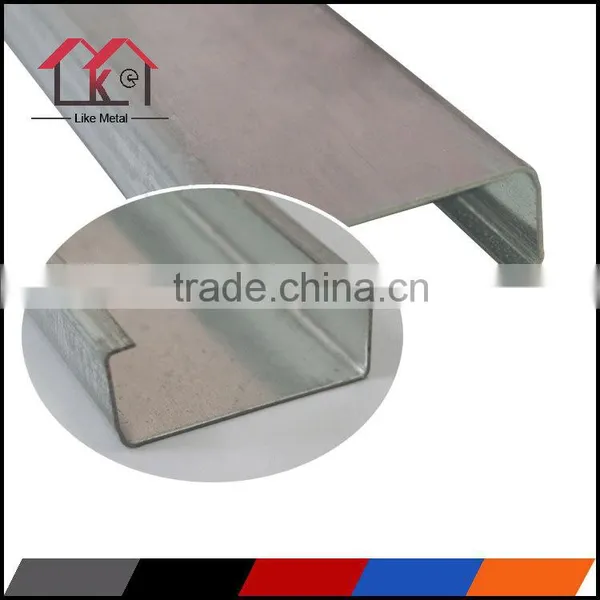

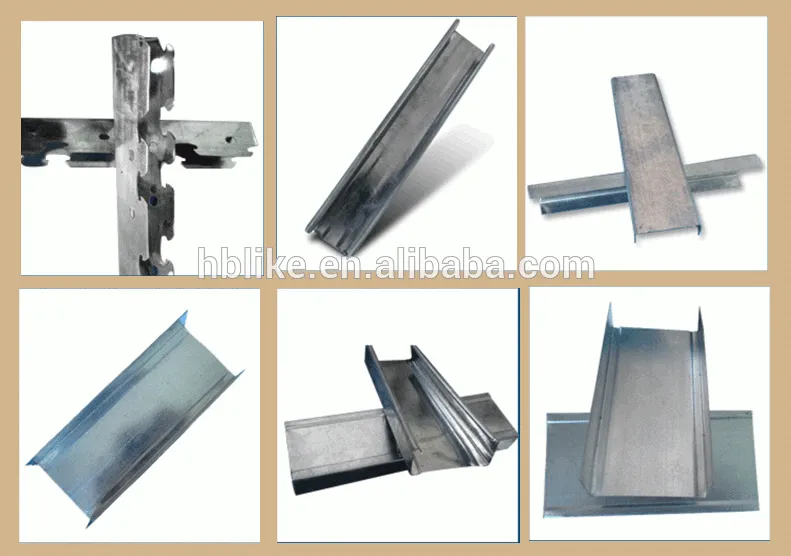

Detailed images

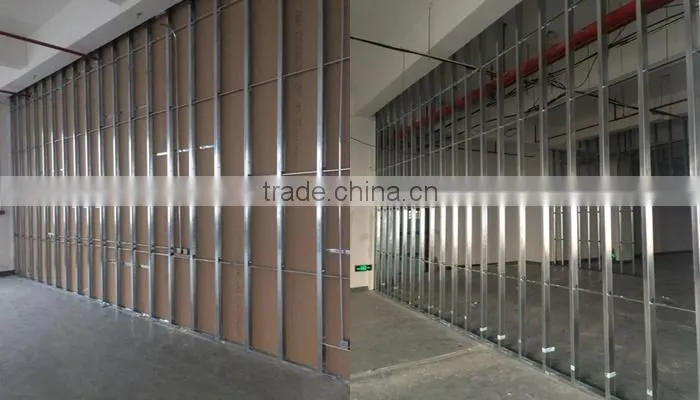

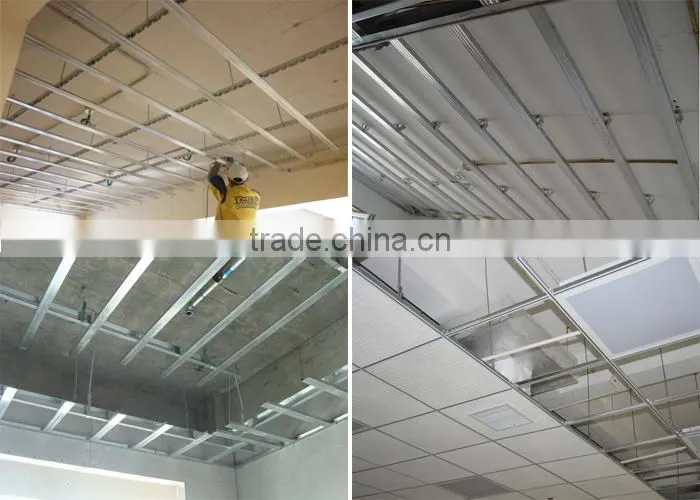

construction site
General specification
| Picture | Item | Item No. | Width | Height | Length | Thickness |
| |
Stud | QC5040 | 50 | 40 | 3000 | 0.4/0.45/0.5/0.6 |
| QC6535 | 65 | 35 | 3000 | 0.4/0.45/0.5/0.6 | ||
| QC7035 | 70 | 35 | 3000 | 0.4/0.5/0.6 | ||
| QC7040 | 70 | 40 | 3000 | 0.4/0.5/0.6 | ||
| QC7535 | 75 | 35 | 3000 | 0.4/0.45/0.6 | ||
| QC10050 | 100 | 50 | 3000 | 0.6/0.7/0.8/1.0 | ||
| |
Track | QU5040 | 50 | 40 | 3000 | 0.4/0.5/0.6 |
| QU6530 | 65 | 30 | 3000 | 0.4/0.45/0.5/0.6 | ||
| QU7030 | 70 | 30 | 3000 | 0.4/0.45/0.5/0.6 | ||
| QU7035 | 70 | 35 | 3000 | 0.4/0.45/0.5/0.6 | ||
| QU7525 | 75 | 25 | 3000 | 0.4/0.5/0.6 | ||
| QU7535 | 75 | 35 | 3000 | 0.4/0.5/0.6 | ||
| QU10040 | 100 | 40 | 3000 | 0.4/0.5/0.6/0.8 |

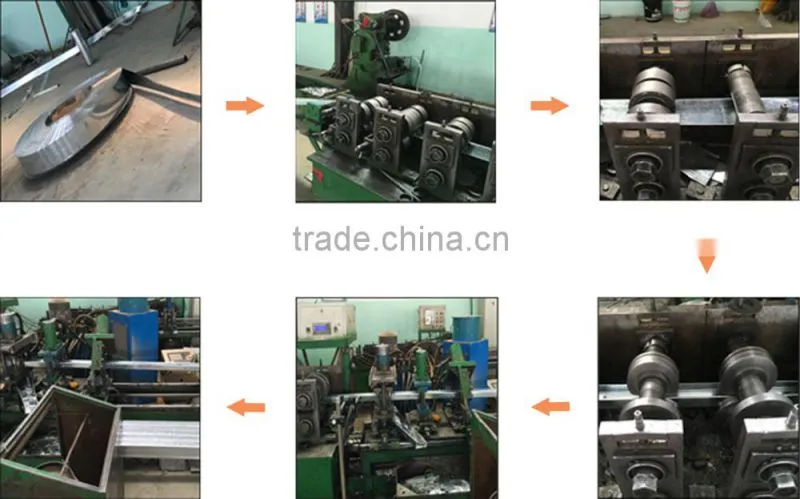

Production process
Our factory
Langfang Like Metal Products Co., Ltd., is one of the modern new building materials manufacturers in
China with a good reputation of high degree of automation in produce line, the great ability of carrying
out produce and matching facility, stable quality and various inspection ways .
Our company sticks to the GB/T13381.1-92 and GB/G14823.1-93 standard to produce.
We supply various kinds of keel, like steel keel and baking varnish keel with the ability to produce every
kinds of accessories products.
We always insist on the highest quality, competitive price and guaranteeing the customer satisfactory.
With the faith, we work really hard to seek long term development.
