Home > Transportation > Tractor & Parts > Tractor > 4WD 50HP Small Garden Tractor Loader Backhoe

4WD 50HP Small Garden Tractor Loader Backhoe

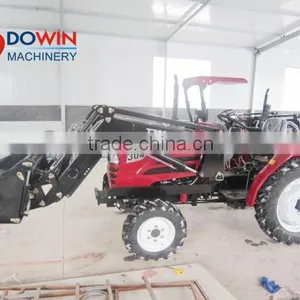

4WD 50HP Small Garden Tractor Loader Backhoe thumbnail-1
4WD 50HP Small Garden Tractor Loader Backhoe thumbnail-2
4WD 50HP Small Garden Tractor Loader Backhoe thumbnail-3
4WD 50HP Small Garden Tractor Loader Backhoe thumbnail-4
4WD 50HP Small Garden Tractor Loader Backhoe thumbnail-5
4WD 50HP Small Garden Tractor Loader Backhoe thumbnail-6
4WD 50HP Small Garden Tractor Loader Backhoe photo-1
4WD 50HP Small Garden Tractor Loader Backhoe photo-2
4WD 50HP Small Garden Tractor Loader Backhoe photo-3
4WD 50HP Small Garden Tractor Loader Backhoe photo-4
4WD 50HP Small Garden Tractor Loader Backhoe photo-5
4WD 50HP Small Garden Tractor Loader Backhoe photo-6
US$ 4,000 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Henan Dowin Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 36.8KW
Certificate CE
Brand Name DOWIN
Model Number DT504
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas

4WD 50HP small garden tractor loader backhoe

1. 4WD 50HP small garden tractor loader backhoe
2. SL3105 or JD495 diesel engine
3. 8 F + 4 R  gear shift
4. Hydraulic steering
5. Dual-stage clutch tractor with 2 speed

Product Description



I. Features of 4WD 50HP small garden tractor loader backhoe

1. Direct injection engine, fuel-efficient and durable good maintenance;

2. Dual stage clutch, shuttle shift gears transmission, easy to operate;

3. New streamlined hood, beautiful appearance;

4. Stepless adjustable wheel track, suitable for different field operations;

5. Hydraulic steering, smart and covenient.

6. Optional paddy field tyres and pneumatic trailer brakes, provide all the functionality for puddy field operations, transportation etc;



II. Parameters of 4WD 50HP small garden tractor loader backhoe

Model No. DT404 DT454 DT504 DT554 DT604 DT654 DT704
Drive Type 4*4
Overall Dimension (L*W*H mm) 3770*1620*2130 3875*1635*2145 3925*1728*2170
Wheel Base (mm) 1990 2010
  Front Wheel Tread (mm)        1265
  Rear Wheel Tread (mm)        1200-1500(common 1300)
  Min. Ground Clearance (mm)  315  330    375
  Min. Operating Weight (kg)    2080  2300    2565
  Gearbox Gears Number        12F+12R
   Engine  Model  C490BT-8  A495BT  A498BT-6A  A4K41T55-002  A4K41T60  A4K43T65A  A4K43T70A
 Rated Power (kw)  29.4  33.1  36.8  40.4  44  48  51.5
 Rated Speed (r/min)  2400  2400  2400  2400  2300  2300  2300
  Sterring Type        Full hydraulic, front wheels steering
   PTO  Type        Rear-mounted, Semi-independent type
 Speed (r/min)        540/760 or 540/1000
 Power (kw)   ≥ 26.3   ≥28.1   ≥31.3   ≥34.3   ≥37.4   ≥40.8   ≥43.8
 Max. Traction Force (kn)   9.7  10.2/10.5 11.7  12.5 12.5 13  13
         Note: As our products will be improved continuously, all above parameters are subject to modification without notice.
Detailed Images



III. More photos of 4WD 50HP small garden tractor loader backhoe

1. Basic configuration of DT504 farm tractor

4WD 50HP small garden tractor loader backhoe



4WD 50HP small garden tractor loader backhoe



4WD 50HP small garden tractor loader backhoe



2. DT504 farm tractor with cabin

4WD 50HP small garden tractor loader backhoe



4WD 50HP small garden tractor loader backhoe



4WD 50HP small garden tractor loader backhoe

Main parts



IV. Main parts of 4WD 50HP small garden tractor loader backhoe

1. Hydraulic output

4WD 50HP small garden tractor loader backhoe



2. Good painting

4WD 50HP small garden tractor loader backhoe



3. Durable tyre

4WD 50HP small garden tractor loader backhoe

Packaging & Shipping



V. Packaging and shipping detailed of 4WD 50HP small garden tractor loader backhoe



4 units of DT504 without iron frame can be loaded in one 40HQ.
2 units of DT504 without iron frame can be loaded in one 20GQ.
8 units of DT504 packing in iron frame can be loaded in one 40HQ.
4 units of DT504 packing in iron frame can be loaded in one 20GQ.

4WD 50HP small garden tractor loader backhoe

Company Information



VI. Company profile of 4WD 50HP small garden tractor loader backhoe

4WD 50HP small garden tractor loader backhoe

Related Products



VII. We also supply

1. 18-180 Horse Power farm tractor

4WD 50HP small garden tractor loader backhoe



2. Matched agricultural implements

4WD 50HP small garden tractor loader backhoe



3. Cassava processing equipment

4WD 50HP small garden tractor loader backhoe

Contact information



VIII. Contact information of 4WD 50HP small garden tractor loader backhoe

1. Contact person: Wendy Yue

2. WhatsApp: 0086 13164317138

3. Skype: jtdny01

4WD 50HP small garden tractor loader backhoe



Any questions about the 4WD 50HP small garden tractor loader backhoe, welcome to contact us, we are always at your service.
