CE 70hp 4wd agricultural farm tractor used in Germany
1. CE 70hp 4wd agricultural farm tractor used in Germany
2. YT4B3-22 diesel engine
3. 8 F + 2 R gear shift
4. Hydraulic steering
5. Dual-stage clutch tractor with 2 speed
I. Features of CE 70hp 4wd agricultural farm tractor used in Germany
1. Direct injection engine, fuel-efficient and durable good maintenance;
2. Dual stage clutch, shuttle shift gears transmission, easy to operate;
3. New streamlined hood, beautiful appearance;
4. Stepless adjustable wheel track, suitable for different field operations;
5. Hydraulic steering, smart and covenient.
6. Optional paddy field tyres and pneumatic trailer brakes, provide all the functionality for puddy field operations, transportation etc;
II. Parameters of CE 70hp 4wd agricultural farm tractor used in Germany
| Main Parameters | ||||
| Model No. | DT504 | DT604 | DT704 | DT804 |
| Drive Type | 4*4 | 4*4 | 4*4 | 4*4 |
| Engine | ||||
| Engine Type | QC498T50 | YT4B2-22 | YT4B3-22 | LR4B5-23 |
| Rated Power of Engine(kw/rpm) | 36.8 | 47.8 | 51.5 | 59 |
| Displacement(L) | 2.977 | 4.16 | 4.58 | 4.95 |
| Transmission System | ||||
| Clutch | One-piece, dry, double-action | One-piece, dry, double-action | One-piece, dry, double-action | One-piece, dry, double-action |
| No. of Gears (F+R) | 8F+4R | 8F+2R | 8F+2R | 16F+8R |
| Shift Method | sliding sleeve | sliding sleeve | sliding sleeve | sliding sleeve |
| Working Device | ||||
| Linkage Type | Three-point linkage | Three-point linkage | Three-point linkage | Three-point linkage |
| PTO Speed | 540/760r/min | 540/760r/min | 540/760r/min | 760/1000 |
| Tillage Depth Adjustment | Draft, Position control | position and float | position and float | position and float |
| Parameter | ||||
| Overall Dimension(mm) | 3768*1640*2130 | 4052*1900*2650 | 4052*1900*2650 | 4290*2100*2810 |
| Min. Operation Mass (kg) | 2300 | 3140 | 3140 | 3720 |
| Wheel Base (mm) | 1992 | 2260 | 2260 | 2195 |
| Min. Ground Clearance (mm) | 304 | 340 | 340 | 379 |
| Front/Rear Wheel Tread | 1300/1200-1500 |
1350,1450,1550,1650 | 1200/1200-1300 | 1610/1620,1720,1820,1920 |
| Tyre Size | 28 | 8.3-24/14.9-30 | 8.3-24/14.9-30 | 11.2-24/16.9-34 |
| Braking and Steering | ||||
| Steering Type | Hydraulic steering | Hydraulic steering | Hydraulic steering | Hydraulic steering |
| Braking system | Mechanical control, wet disk brake | Mechanical control, disk brake | Mechanical control, disk brake | gydrostatic pedal control, disk brake |
| Options: All these types can optional for ROPS, sunshade, swing drawbar, front/rear ballast. | ||||
III. More photos of CE 70hp 4wd agricultural farm tractor used in Germany

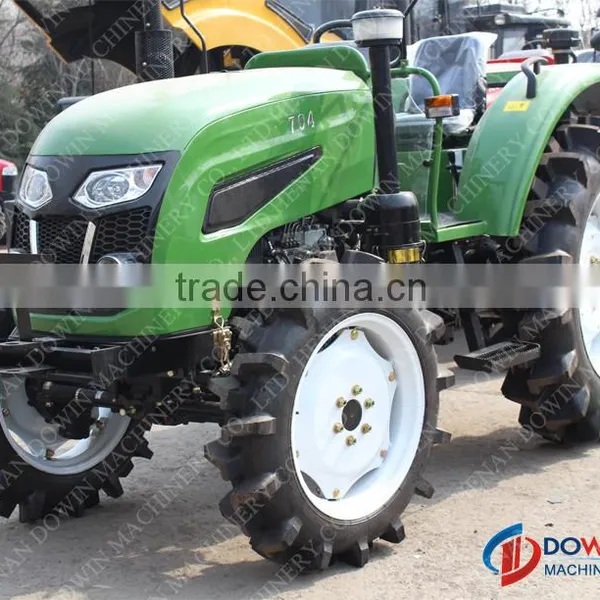

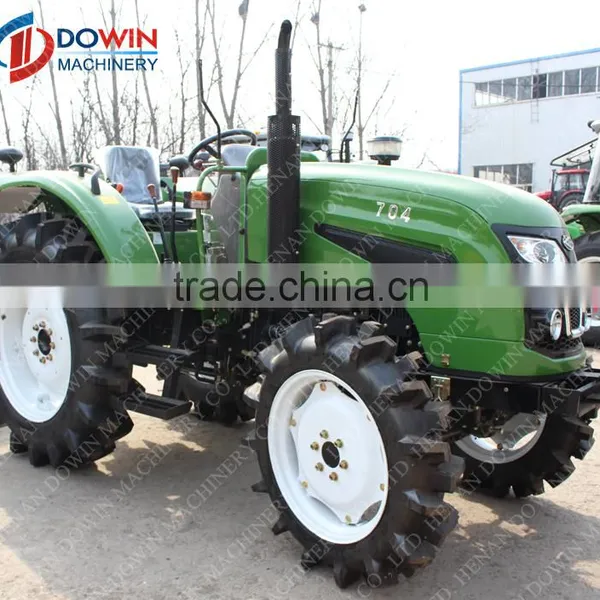

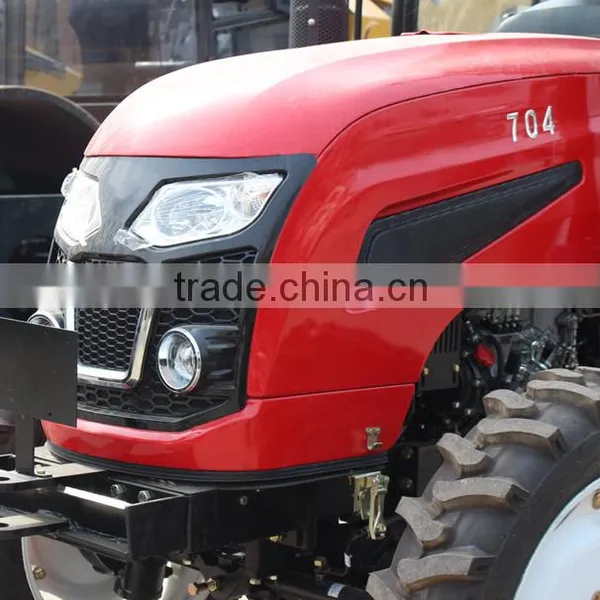

1. Basic configuration of DT704 farm tractor

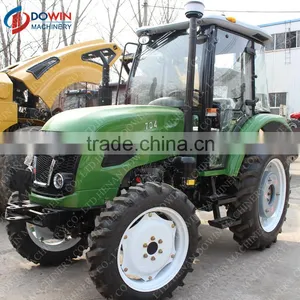

2. DT704 farm tractor with cabin
IV. Main parts of CE 70hp 4wd agricultural farm tractor used in Germany
1. Hydraulic output
2. Beautiful and durable cabin
3. Durable tyre
V. Packaging and shipping detailed of CE 70hp 4wd agricultural farm tractor used in Germany
4 units of DT704 without iron frame can be loaded in one 40HQ.
2 units of DT704 without iron frame can be loaded in one 20GQ.
8 units of DT704 packing in iron frame can be loaded in one 40HQ.
4 units of DT704 packing in iron frame can be loaded in one 20GQ.
VI. Company profile of CE 70hp 4wd agricultural farm tractor used in Germany
VII. We also supply
1. 18-180 Horse Power farm tractor
2. Matched agricultural implements
3. Cassava processing equipment
VIII. Contact information of CE 70hp 4wd agricultural farm tractor used in Germany
1. Contact person: Wendy Yue
2. WhatsApp/ Line/ Mobile: 0086 13164317138
3. Skype: jtdny01
Any questions about farm CE 70hp 4wd agricultural farm tractor used in Germany, welcome to contact us, we are always at your service.
