Automatic rice grading machine for rice processing line

Automatic rice grading machine for rice processing line

1.Application: Automatic rice grading machine for rice processing line

2.Productivity: 500-800kg/h

3.Machine material: carbon steel and stainless steel

4.Final products: barley wheat rice

I. Introduction of Automatic rice grading machine for rice processing line

Small combined rice mill (combined rice machine, combined rice milling machine, rice milling machine) in rice huller, Gu Cao separation sieve, rice milling machine has the advantages of long, consisting of system and milling system, will rice huller, milling, screening, finishing, bran separation process and as a whole, the machine has the advantages of compact structure, convenient operation, small occupation area, low power consumption, short manufacturing process, high work efficiency, reduce the cost of grain processing, is a comprehensive type of rice processing combined rice machine. Paddy was vibrating screen, magnetic separation device into the machine, the rubber roll husker, winnowing, spray wind milling, continuously complete from valley to grind machining operation net shelling white, fine bran, chaff, blighted grain, rice are discharged out of the machine. A machine for rice bran content less, broken rice grains of bright light, integrity, accuracy up to mark more than one. The machine can also be used for processing of oats,ricehullin.

II. Basic configuration of Automatic rice grading machine for rice processing line

(1)Raw rice hoist;

(2)The new air suction type cleaning machine;

(3)6 inch rubber roller sheller;

(4)Big bran separator;

(5)Double bucket elevator;

(6)Gravity paddy sieve;

(7)Strong wind sand roller rice milling machine;

(8)The milling chamber is optional with the polishing head milling assembly.

III. Main parameters of Automatic rice grading machine for rice processing line

(1)Dimension: 3000*1500*3000mm;
(2)Power: 24kw;
(3)Output rice per hour: 500~800kg;
(4)Milled rice rate: non glutinous rice>73% ; long-shaped rice>70%;
(5)Broken rice rate≤10%;
(6)Weight: 1200kg;
(7)Occupied area: about 10m2;

(8)European standard.

IV. More photos of Automatic rice grading machine for rice processing line

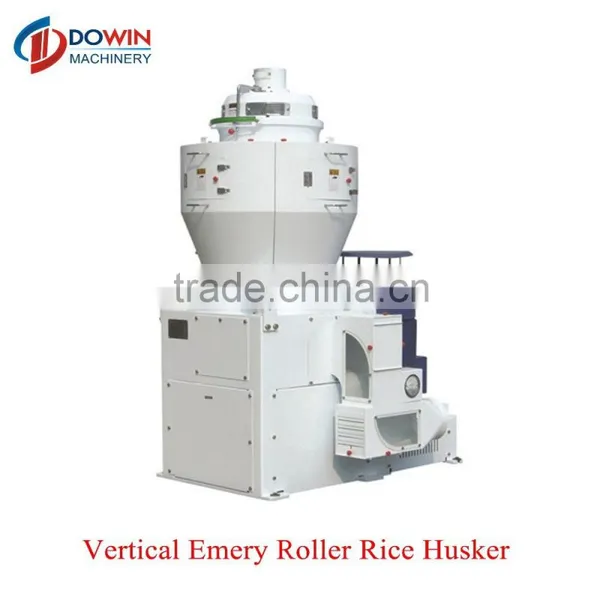

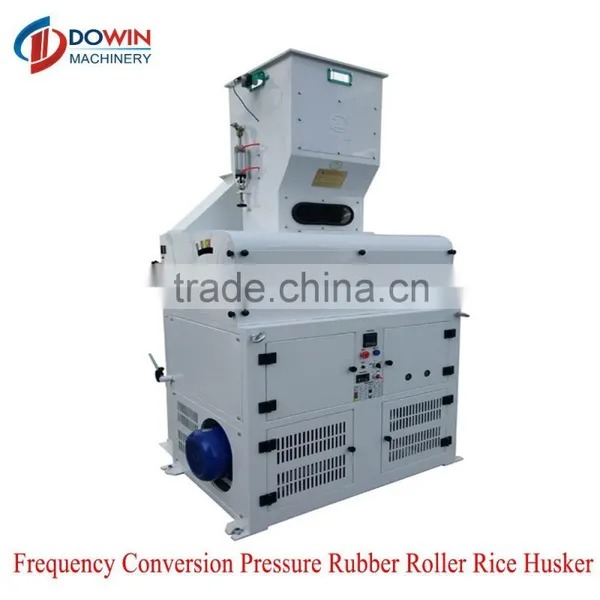

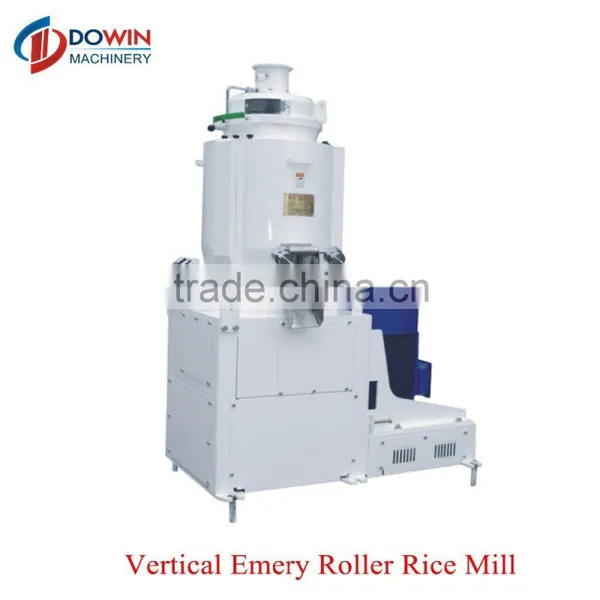

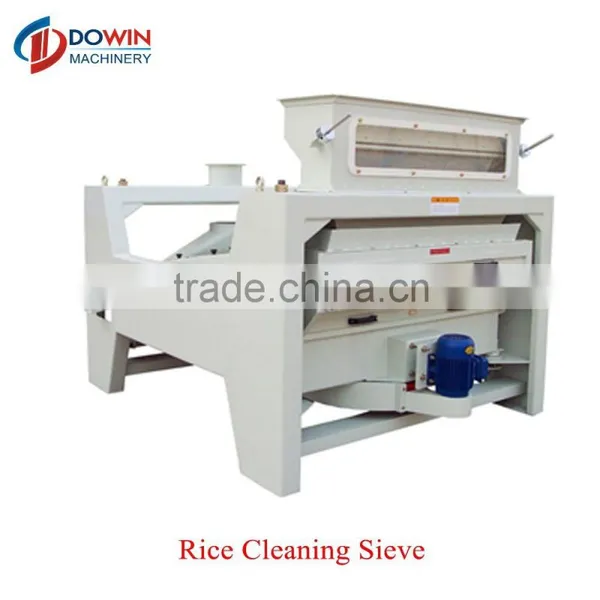

(1)Machine photos

(2)Final products

V. Tading cases of Automatic rice grading machine for rice processing line

(1)Clients visiting

(2)Installations cases

VI. Company introduction of Automatic rice grading machine for rice processing line

1. Does this rice milling machine need a generator?

Yes, it is electronic type will be needing a generator especially in Nigeria where electricity is not stable.

2. Does your rice milling machine has ISO certificate.

Yes, with experience of more than 20 years we have this certificate.

3. Can this rice milling machine process wheat and corn flour?

No, rice and corn need different technology, and even some parts need same equipments, but the model is different.

4. What is your guarantee time?

At least one year with all necessary after-sale service provided.

Contact person: Wendy Yue

Skype: jtdny01;

WhatsApp/ Line/ Mobile phone: 0086 13164317138

More information about the Automatic rice grading machine for rice processing line, welcome to contact us at any time, we are always at your service.
