Help CenterAlctron MP100 Pro Tube Microphone/Instrument Preamplifier, Pro Mic/Line Preamplifier, Mic Preamp With 48V Phantom Power
Related Products
-
Alctron MP200 Classic Microphone/Line Preamplifier, Microphone Preamplifier, Pro Mic PreampNegotiableMOQ: 300 Units -
Alctron MP73EQ High-End Microphone/Instrument Preamplifier and Equalizer,Pro Mic/Line Preamplifier, Mic Preamp and EQNegotiableMOQ: 300 Units
-
Alctron CP540 Professional One Channel Microphone Preamplifier Compressor/Limiter, Studio Compressor, Pro Mic Pre CompressorNegotiableMOQ: 300 Units
-
Alctron MP73 High-end Microphone Preamplifier,Pro Mic Preamplifier, Mic PreampNegotiableMOQ: 300 Units
-
Alctron MP73a 500 Series Microphone Preamplifier, One Channel Vintage Style Mic/line/instrument Preamplifier,Pro Mic PreampNegotiableMOQ: 300 Units
Introduction:
The MP100 is a radically different tube preamp design which combines the classic retro warmth of tube design and the transient bite of solid-state. The MP100 microphone preamp was created specifically to add the tonal versatility and sonic inspiration missing from generic audio interface preamps. its innovative circuit design makes it the perfect preamp partner for any mic collection. Plus, the discrete JFET DI input circuit can also easily handle any electric instrument. Guitar and bass players will especially appreciate MP100s ability to bring out the best of both active and passive pickups.
Specifications:
* Type:Tube & Solid-State Phase-Aligned Tone-Blending Mic Pre & DI
* 70dB+ of gain, +48V Phantom, Pad(-15dB), Phase Invert, and Low Cut Filter(75Hz)
* Blending Mic/Line Preamp & Hi-Z Instrument DI

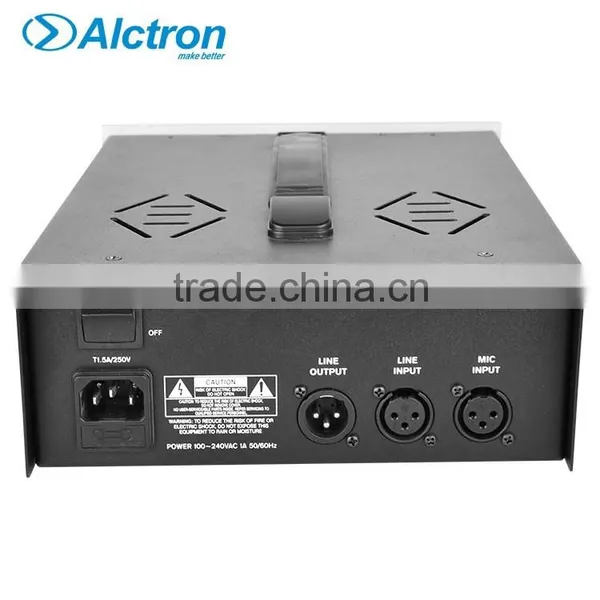

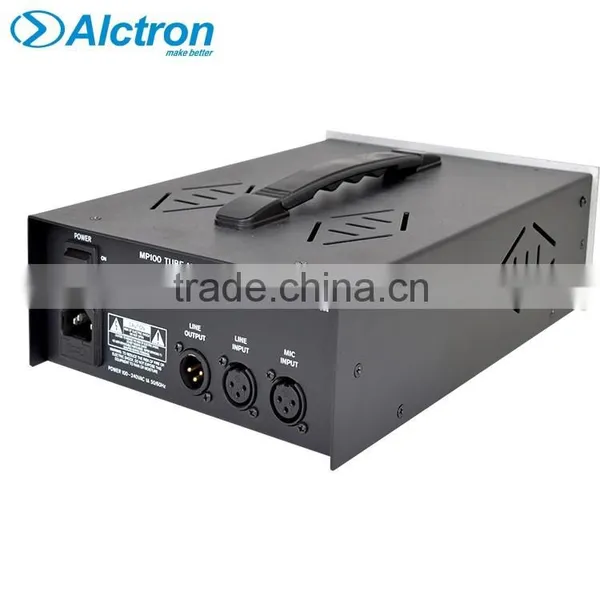

* Inputs: Microphone (Female XLR), Balanced Line (Female XLR), Unbalanced
Instrument (1/4" jack) (D.I.)
* Outputs: Balanced Line (Male XLR)
* Tube Complement:12ax7
* Pad:-15dB
* High Pass Filter:75Hz
* Maximum Power Consumption: 160mA @120VAC,20W
* Power Requirements:100-240VAC
* Dimensions: 8.45W x 3.5H x 10.25D
* Impedance: Mic Input Impedance 2K ohms
* Line Input Impedance:10K ohms
* Hi-Z Input Impedance: 2.2M ohms
* Internal Output Impedance:600 ohms
* Gain Range for Unit:-Infinity to 70dBu
* Mic Range Gain Pot:10 ~ 60 dBu
* Line Range Gain Pot:-10 ~ 40 dBu
* Hi-Z Range Gain Pot:-10 ~ 40 dBu
* Mic Frequency Response:20Hz to 100kHz +/- 0.2 dBu
* Line Frequency Response:20Hz to 100kHz +/- 0.2 dBu
* Hi-Z Frequency Response:20Hz to 100kHz +/- 0.2 dBu
* Min THD+Noise @ +4dBU:0.1% tube 0.005% solid-state
