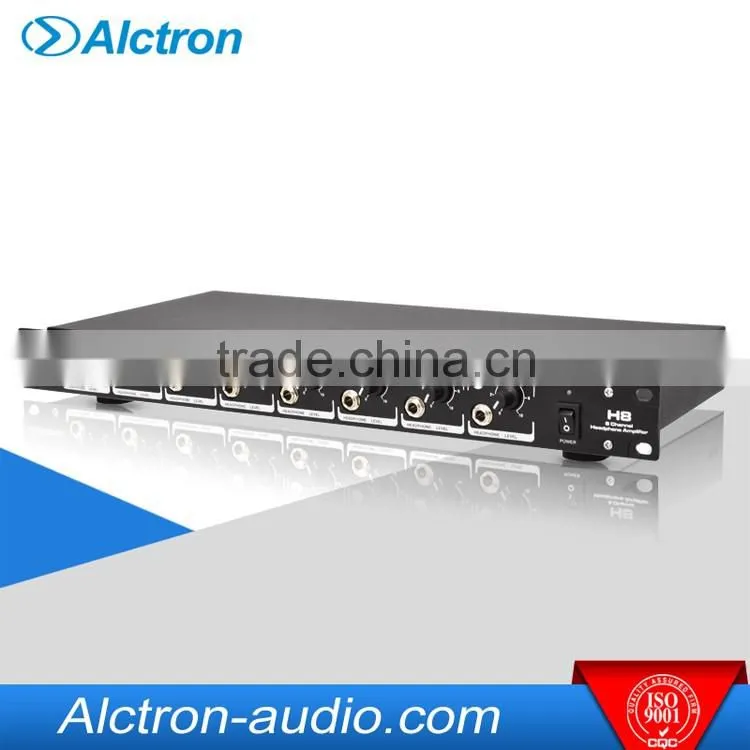

Help CenterAlctron H8 Professional High-power 8 Channel Headphone Preamplifier, Headphone Amplifier,Ultra-Versatile Headphone Amplifier
Related Products
-
Alctron HP400 Professional 4 Channel Multifunctional Headphone Preamplifier, Headphone Amplifier,Pro Headphone AmplifierNegotiableMOQ: 300 Units -
Alctron HP800 Professional 8 Channel Multifunctional Headphone Preamplifier, Headphone Amplifier,Pro Headphone AmplifierNegotiableMOQ: 300 Units
-
Alctron PS-6 Professional 2-Channel Phantom Powered Microphone Preamplifier, Dual Mic Preamplifier.NegotiableMOQ: 500 Units
-
Alctron MP-1 Mini Single Channel Microphone Activator, Pro Mic Preamplifier, 1-Channel Mic PreamplifierNegotiableMOQ: 500 Units
-
Alctron MP-2 Mini Dual Channel Microphone Activator, Pro Mic Preamplifier, 2-Channel Mic PreamplifierNegotiableMOQ: 500 Units
Introduction:
Alctron H8 is an ultra-versatile 8-channel Headphone Amplifier.It has A,B and C 3 sets of balanced stereo signal inputs.Each channel has the selector switch of Mono or Stereo.And it has 8 channels headphone output,each channel has the separate volume control which adjusts the level to both headphone and parallel
line outputs.Three balanced, line-level input channels with capacity to distribute one input signal to all headphones or group the headphone outputs (depending upon input configuration) for monitoring flexibility.By virtue of the Mono/Stereo selector switches, one headphone can monitor 2 different Mono signal sources, it
will meet all kind of monitor requirement.So it is a very useful equipment for stage or studio.
Specifications:
Audio Input
* Connectors...................1/4" socket
* Type.........................balanced
* Impedance....................40k Ohm
* Peak input level............+25dB
* Gain control range..........+35dB
* Volume....................Per Channel, Variable
* Mono/Stereo switch...........Per Input Set
Power Supply
* AC Requirement..........Selectable 100-120VAC, 200-240VAC, 50-60Hz
Other parameters
* Distortion..............0.02%
* Frequency response......20Hz-20kHz
* S/N Ratio...............> 80dB
* Crosstalk rejection......> 68dB @ 1kHz; 20dB Input
Headphone Power Amplifier Outputs
* Max. output level..........300mW @ 32 Ohms(max 1W @ 32 Ohms)
* Output Impedance...........22 Ohms
* Max gain...................+20dBt
