Introduction:

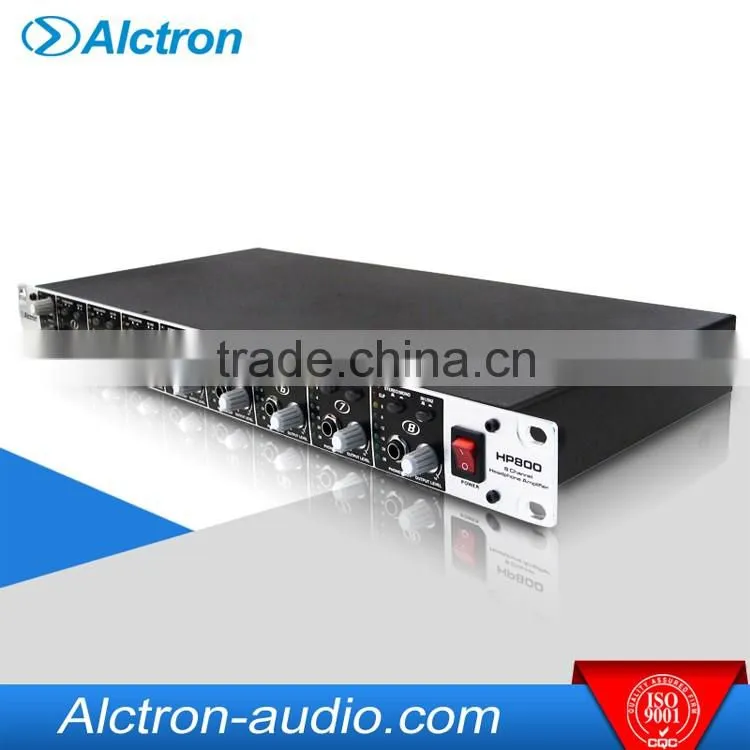

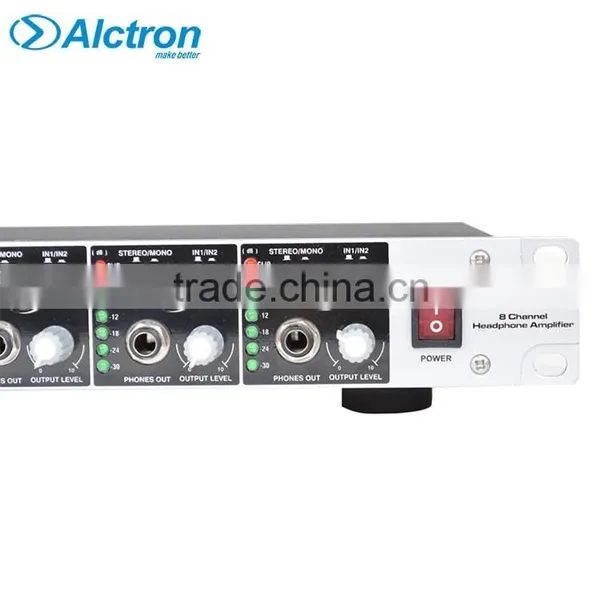

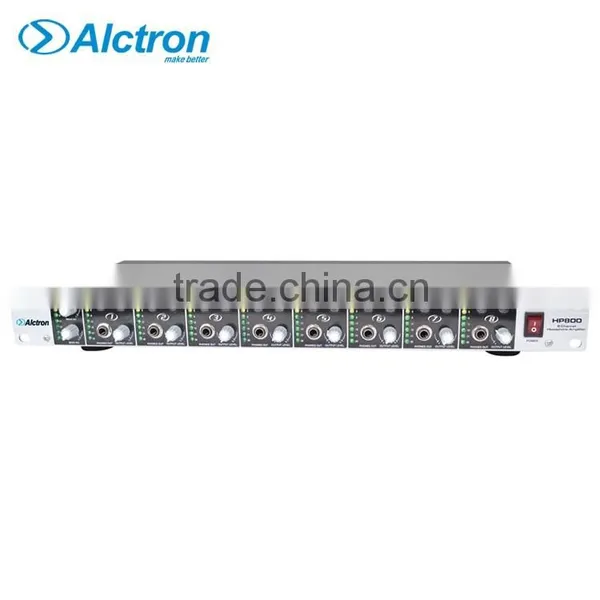

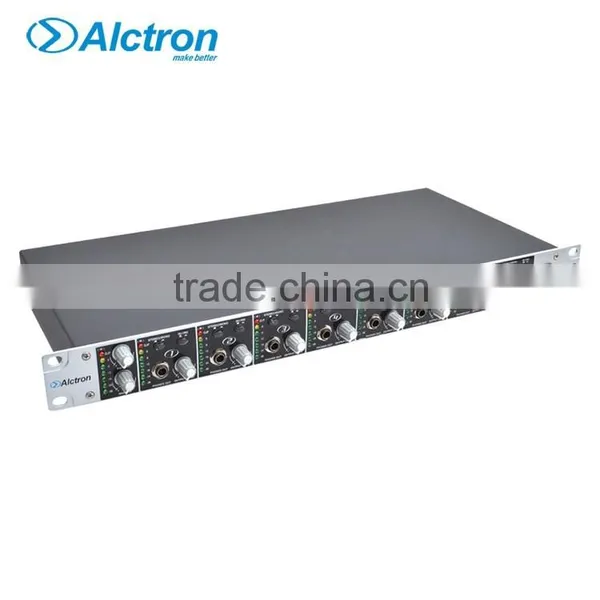

The ALCTRON HP800 Headphone Amp is a professional, high-power multipurpose 8-channel headphone distribution amplifier. It features 8 totally independent stereo high-power amplifier sections in one rackspace, 2 separate main inputs, 2 headphone outputs per channel and even a dedicated direct input for each
channel. It offers the highest sonic quality with virtually all types of headphones, even at maximum volume.
Features:
* 8-channel headphone distribution amplifier
* Eight totally independent stereo high-power amplifier sections
* 2 separate main inputs
* 2 headphone outputs per channel
* Dedicated direct input for each channel
* Highest sonic quality with virtually all types of headphones
Specifications:
AUDIO INPUTS
MAIN IN........HF-filtered,servo-balanced 1/4"TRS And XLR stereo
Input impedance........40Ω stereo,40Ω Mono
Max input level........+16dBu balanced and unbalanced
CMRR........TYPICALLY 40dB,>55dB @1kHZ
DIRECTIN........1/4"TRS connector(stereo)
Input impedance........40Ω
AUDIO OUTPUTS
Phones outputs........1/4" TRS connector(stereo)
MAIN OUT........XLR connectors
POWER AMPLIFIER
Max output power........+24 dBm(load impedance100Ω)
Min output load impedance........100Ω
FUNCTION SWITCHES
Main in 1/Main in 2........switches between Main Input 1 and Main Input 2
Mono........switches this section to mono
DISPLAYS
Input level........7-digit LED-display
Output level.......7-digit LED-display:-30/-24/-18/-12/-6/0dB/CLIP
POWER SUPPLY
Mains voltage
USA/Canada........120V~,60Hz
Europe/U.K/Australia........230v~,50Hz
Japan........100v~,50-60Hz
General export model........120/230V~~,50-60Hz,
power consumption........30W
Fuses........100~120V~:T630mA H,200~240V~:T215mA H
Mains conection........standard IEC receptacle
DIMENSIONS AND WEIGHT
Dimensions(H X W X D)........approx.1 3/4"(44.5mm) x19"(482.6mm) x8 1/2"(217nn)
Weight........approx.5.19lbs(2.35kg)
SYSTEM SPECIFICATIONS
Frequency response........10 Hz to 150kHz,+/-3 dB
Noise........22 Hz to 20kHz>90 dB@ 0dBu
Dynamic range........22Hz to 22kHz:110dB
Distortion(THD)........0.006%typ.@+4 dBu,1 kHz Gain 1
FUNCTION CONTROLS
Input Level........variable
Output Level per channel........variable
