Good Performance 90m3 per Hour Concrete Mixing Plant

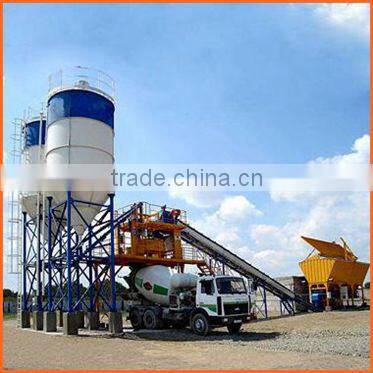

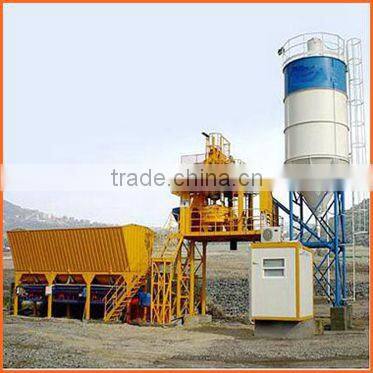

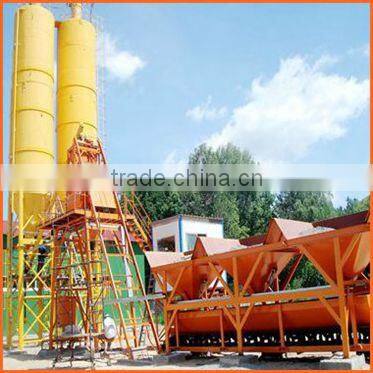

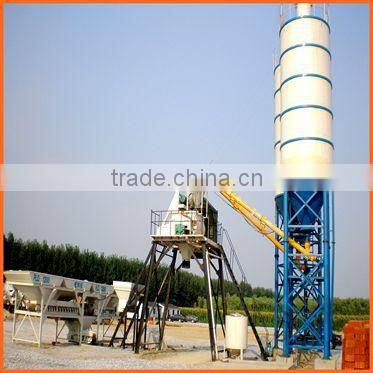

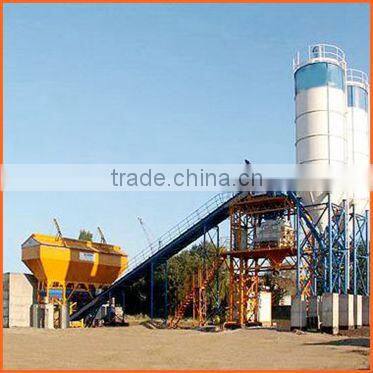

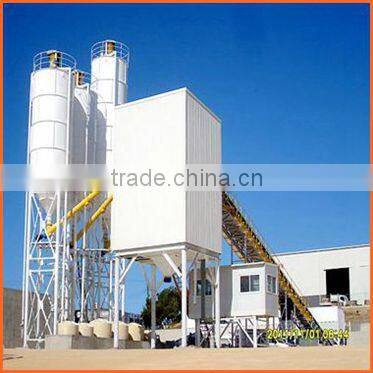

 Introduction of 90m3 concrete mixing plant

The 90m3 concrete mixing plant of this series has intellectually automatic function. It belongs to intermittent forced mixing station. The customers are satisfactory with its characteristics like compact structure, flexible arrangement, less investment, and convenient assembly and disassembly.

Advantages of 90m3 concrete mixing plant

90m3 concrete mixing plant can use many manners of combining and charging according to customers’ needs. It can produce dry-rigid, half dry-rigid ,plastic ,and every distribution ratio concrete and use the mixing technology of wrapping-stone mode which can improve the quality of concrete greatly.

It’s the ideal equipment for constructions of middle-small buildings, roads and bridges, the tube piles and cement precast factories.

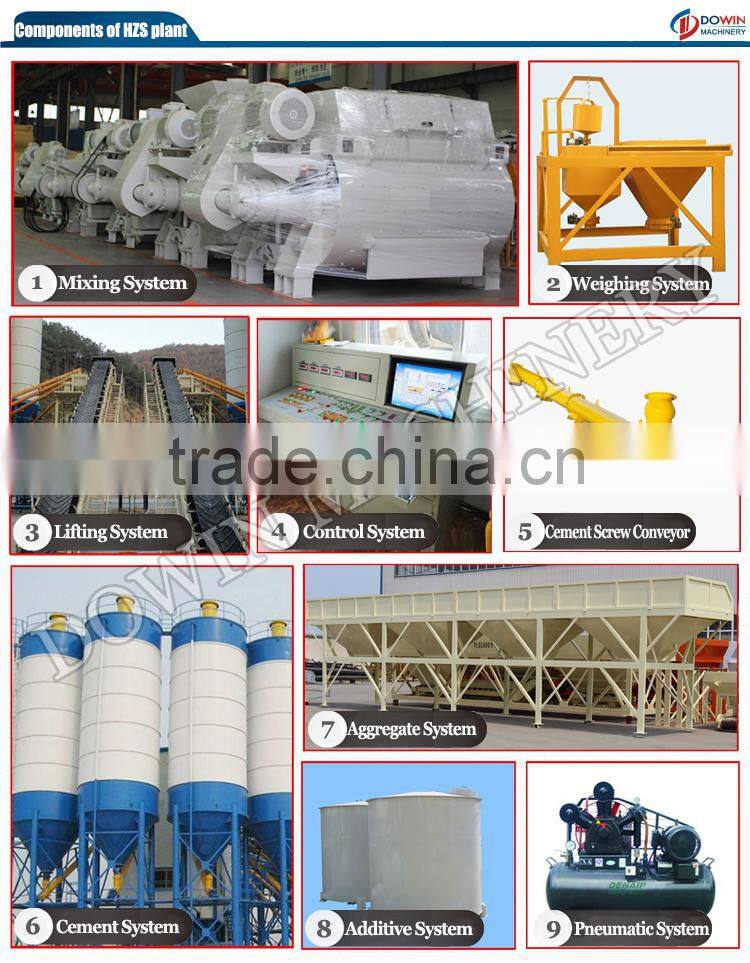

 Technical data of 90m3 concrete mixing plant

1. Mixing System

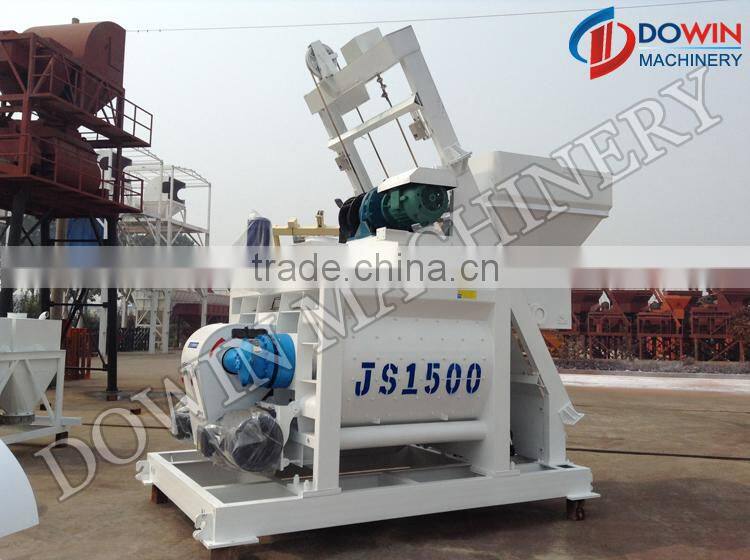

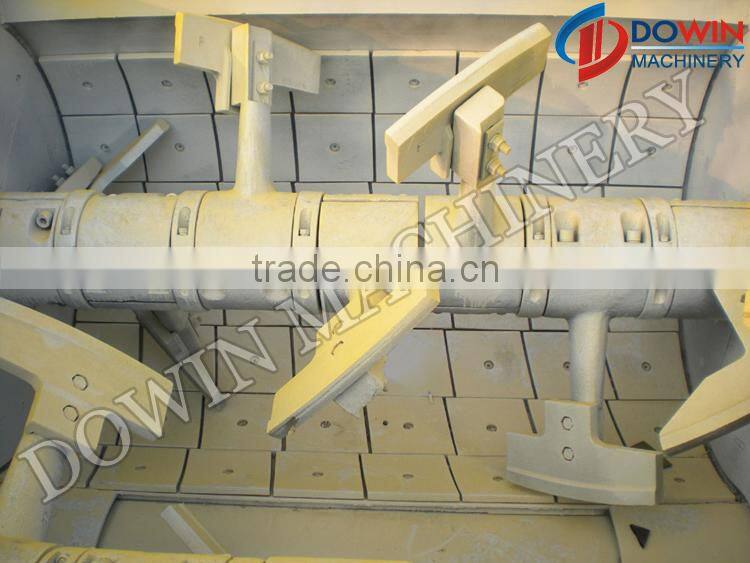

JS twin-shaft concrete mixer or JN planetary concrete mixer can be chose according to client;

Discharging height is 1.7-3.8(m);

Pneumatic/Hydraulic Control;

Easy replacing of wearing parts, such as liner plates.

2. Weighing System

Water weighing/ Cement weighing/ Additive Weighing/ Aggregate Weighing.

3. Lifting System

Normally Lifting hopper be used in mixing plant less than 90m3/h, and belt conveying system be used in mixing plant

for HZS90 and above.

4. Control System

PLC/Centralized Control with the emergency stop button and safety control key;

TV monitoring systems for batching machine, concrete mixer and discharging mouth are optional for clients.

5. Cement Screw Conveyor

Diameters of 219mm/273mm can be optional, with efficient motors ad precision reducer.

6. Cement system

Capacity of 50t, 100t, 150t and 200t are optional, with the cement smoke filter;

One-piece/Modular tank are optional.

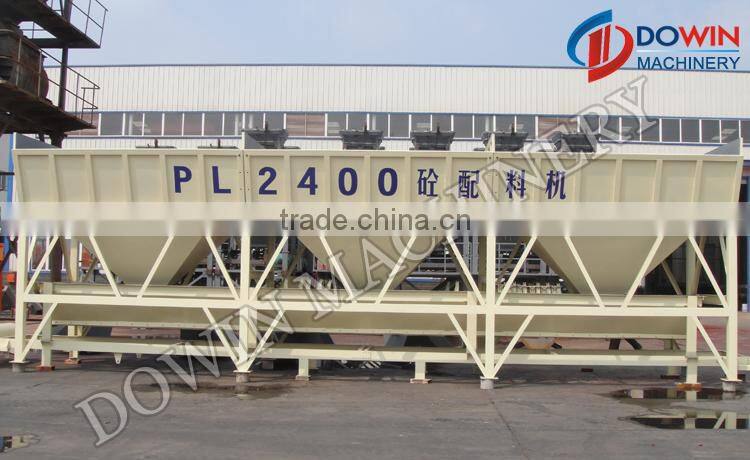

7. Aggregate System

2/3/4 hoppers with belt conveyor, pneumatic discharging mode with independent/ cumulative weighting.

8. Additive System

High-lift additive pump and special corrosion-resistant pipes.

9. Pneumatic system

Reliable quality Chinese famous air compressor, oil-water separator with solenoid valve.

1. Pre-sales Service of 90m3 concrete mixing plant

 Work as your technical assistant, special design for you according to your site, construction condition and

other requirements.

2. After-sales Service of 90m3 concrete mixing plant

a. Remind users to maintain the machine at a certain time of each year;

b. Guarantee the spare parts for free;

c. Out of warranty period, we can supply you the after sale service and spare parts all the time;

d. Install and debug equipment according to contract;

e. After sales, the engineers will help you to do prepare works for the first start up and debug.

1. Can we see the 90m3 concrete mixing plant before order?

You are warmly welcome to visit our factory, and our engineers will explain you the machines details one by one.

2. How many person are needed for 90m3 concrete mixing plant ?

It depends on the line and capacity of the mixing line, 2-3 workers will be enough to operate simplified mixing line, and over the 60m3/h line will need 4-5 people.

3. Will you help us to build the factory and install the machine?

Yes, our engineers will be sent to your site to help you for the installation.

 Henan Dowin Machinery Co., Ltd. was founded in 2000 with more than 10 years experience in the area of building construction machinery.

Dowin Company started overseas business from 2007, until now its products have been sold to India, Vietnam, Indonesia, Nigeria, Kazakhstan, Russia etc. It has earned a good reputation in these areas because of its best cost performance products and excellent after services.

Thanks for browsing our 90m3 concrete mixing plant !
