Specifications
Shield Cutter Tips made by Tungsten Carbide for Tunnel Boring Machine:-100% raw materials
-Big range of size & grades
Shield Cutter Tips made by Tungsten Carbide for Tunnel Boring Machine:
Product Information:
*Carbide tips installed on shield driving cutters, which are used for shield tunneling machine are widely used in railway, subway, highway, tunnel, mining, metallurgical engineering, water conservancy etc.
Properties & Applications:
Carbide Shield Cutter Tips for Tunnel Boring Machine,the Grade for your reference:
| Garde | Density (g/cm3) | Hardness (HRA) | TRS (N/mm2) | ISO Code | Applications |
| YG4C | 15.00 | 89.5 | 1600 | K20 | Suitable for making geological prospecting drill bits and mining inserts of light-duty electrical drill bits for drilling soft rock,coal formations and rill bits for drilling un-silicated rock fomations. |
| JK05 | 15.00 | 90.2 | 2500 | K20 | Mainly used for making medium and small sized cemented carbide buttons of tricone bits and other drilling bits for driling soft & medium hard rock formations,also used for making cemented carbide inserts of other drill bits. |
| YK05 | 14.90 | 90.1 | 2600 | K20 | |
| YK06 | 14.90 | 91.0 | 2450 | K20 | |
| YG8C | 14.75 | 89.0 | 2600 | K30 | Mainly used for making cemented carbide buttons of tricone bits and other drilling bits for driling medium hard & hard rock formations,also used for making cemented carbide inserts of other drill bits. |
YK08 | 14.70 | 89.0 | 2400 | K30 | |
| YK09 | 14.50 | 88.0 | 2600 | K30 | |
| YK10 | 14.45 | 88.5 | 2600 | K40 | With super toughness and corresponding wear resistance,it is suitable for carbide inserts of heavy-duty rock drilling tools and DTH drilling formations,also used for other cemented carbide button bits. |
| YK20 | 14.40 | 87.0 | 2700 | K40 | |
| YK25 | 14.45 | 87.0 | 2700 | K40 | |
| YG11C | 14.40 | 87.8 | 2700 | K40 | |
| YG13C | 14.20 | 86.0 | 2600 | K40 |
Product Display:

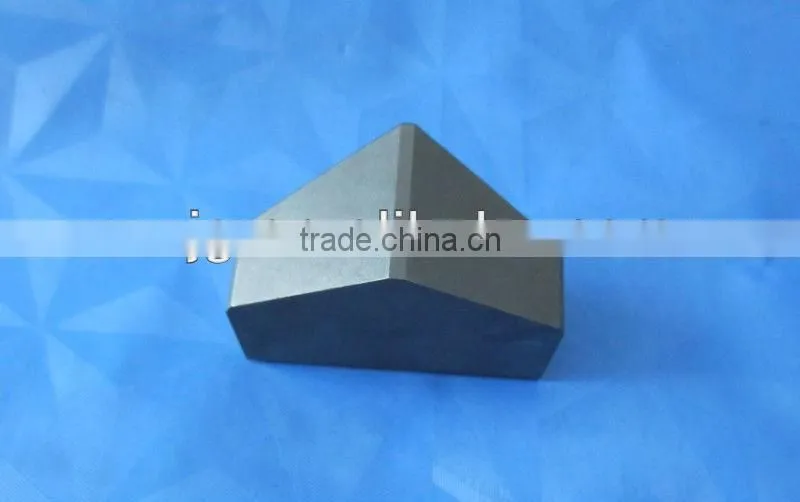

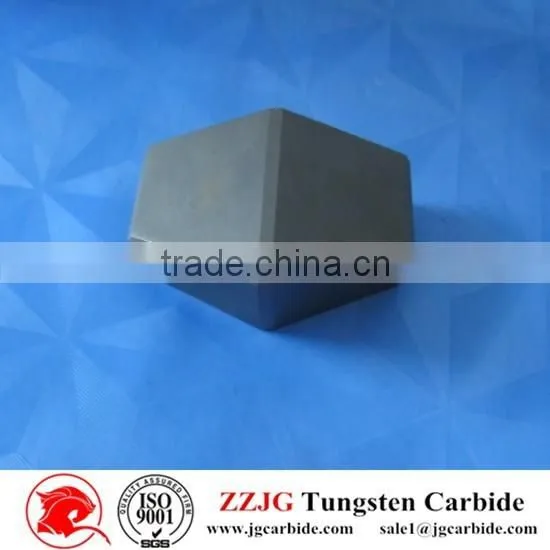

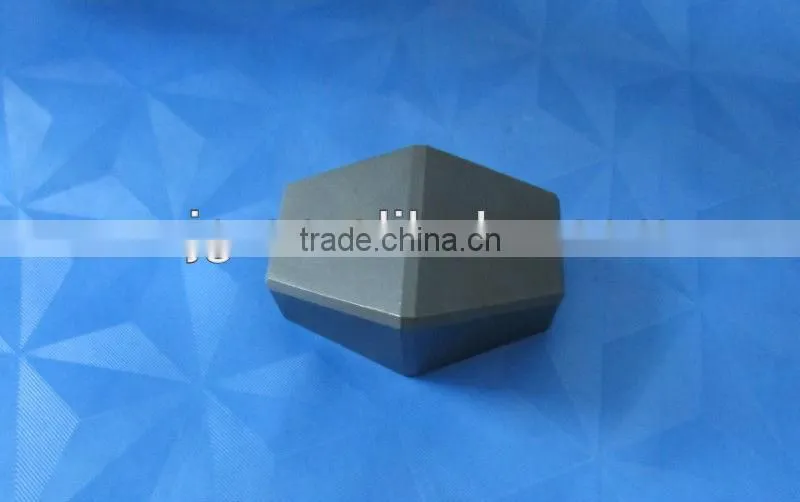

Shield Cutter Tips made by Tungsten Carbide for Tunnel Boring Machine:
Packng Details:
Regarding to the packing of Shield Cutter Tips made by Tungsten Carbide for Tunnel Boring Machine
we often:
Inner by PVC box with bubble bag,Outter by Fibre Box,or as request by customer
Company Brief Discription:
Founded in May 2001,with an area of 15418 square meters' factory,over 13 years OEM experience,so we have the confidence in:
1.We,JINGGONG,can accept order of all kind of special designed tungsten carbide products.
2.We,JINGGONG,promise you the 100% raw material .
3.We,JINGGONG,can finish your order within 7-15 days upon confirm the prepaid.
Also YOU and your drawing papers are warmly welcomed.
Quality Assurance:
we,JINGGONG,owned ISO 9001:2008 , ISO 14001:2004 certification:
Support:
Whether you are looking for the right tool or need help with one you already own, we,ZHUZHOU JINGGONG CEMENTED CARBIDE CO.,LTD. are here to help:
Order Support Product Support
Contact:Ms.Ada Linn Contact:Mrs.He
Tel:0086-731-22896701 0086-731-22896708
Mob:0086-13055190722
Email:sale1 at
jgcarbide01 at
Skype:ada_linn
Add:Jinggong Industrial Park,Kunlunshanb Road,Tianyuan District,Zhuzhou,Hunan,China
