YG8C 16.9*28mm Sintered Tungsten Carbide Spherical Button
- 50 Ton / Tons per Month
- Any port of China
- T/T L/C D/P D/A Credit Card PayPal
- API-7-1 Standard single cone drill bit
- 6 7 11 12 degree Diameter 32mm Taper Knock off drill bit
- Oil Well Api Oilfield Fishing Tool Overshot Grapple Assembly/Oil Well Magnetic Fishing Head/Cable Righting Fishing Head
- Drop Shipping API Oilfield Releasing Overshot 4 11/16" Oil Fishing Tools LT119
- API compliant fishing tool overshot for oil field downhole work
- Oil Well fishing tool sucker rod overshot/circulating overshots
Product Details
Place of Origin: | China | Brand Name: | ZZJG | Model Number: | SQ1628 |
Type: | Drill Bit | Machine Type: | Drilling Tool | Certification: | Other, ISO Certificate |
Material: | Carbide | Processing Type: | Other, Tungsten carbide | Use: | Well Drilling |
Product Description
Specifications
YG8C 16.9*28mm Sintered Tungsten Carbide Spherical Button:-100% raw materials
-Big range of sizes & grades
-popular in india
YG8C 16.9*28mm Sintered Tungsten Carbide Spherical Buttons from ZZJG:
Product Information:
Dia:16.2mm H:21mm and Dia:16.9mm H:28mm,Grae:ZD15,Both we have the mould.
*Good wear resistance, excellent anti-impact and anti-knocking properties. it often used for drilling medium hard,hard and super hard rock formation at high pressure.
*As its unique working performance,Tungsten Carbide Spherical Button are widely applied to oil filed drilling and snow removal, snow plough machines or equipments.
*Also,Tungsten carbide buttons are widely applied for rock tools buttons, mining tools buttons, road tools button in quarrying, mining, tunneling, digging and civil constructions.
Properties & Applications:
YG8C 16.9*28mm Sintered Tungsten Carbide Spherical Button,other GRADE for reference:
Garde | Density (g/cm3) | Hardness (HRA) | TRS (N/mm2) | ISO Code | Applications |
YG4C | 15.00 | 89.5 | 1600 | K20 | Suitable for making geological prospecting drill bits and mining inserts of light-duty electrical drill bits for drilling soft rock,coal formations and rill bits for drilling un-silicated rock fomations. |
JK05 | 15.00 | 90.2 | 2500 | K20 | Mainly used for making medium and small sized cemented carbide buttons of tricone bits and other drilling bits for driling soft & medium hard rock formations,also used for making cemented carbide inserts of other drill bits. |
YK05 | 14.90 | 90.1 | 2600 | K20 | |
YK06 | 14.90 | 91.0 | 2450 | K20 | |
YG8C | 14.75 | 89.0 | 2600 | K30 | Mainly used for making cemented carbide buttons of tricone bits and other drilling bits for driling medium hard & hard rock formations,also used for making cemented carbide inserts of other drill bits. |
YK08 | 14.70 | 89.0 | 2400 | K30 | |
YK09 | 14.50 | 88.0 | 2600 | K30 | |
YK10 | 14.45 | 88.5 | 2600 | K40 | With super toughness and corresponding wear resistance,it is suitable for carbide inserts of heavy-duty rock drilling tools and DTH drilling formations,also used for other cemented carbide button bits. |
YK20 | 14.40 | 87.0 | 2700 | K40 | |
YK25 | 14.45 | 87.0 | 2700 | K40 | |
YG11C | 14.40 | 87.8 | 2700 | K40 | |
YG13C | 14.20 | 86.0 | 2600 | K40 |

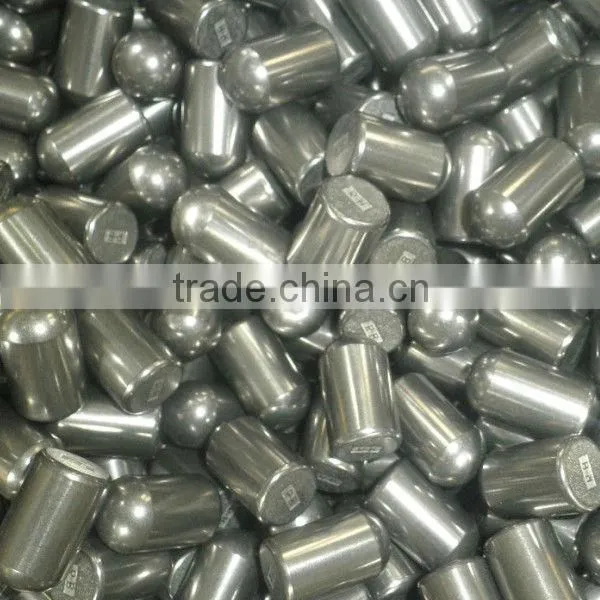

Product Display:

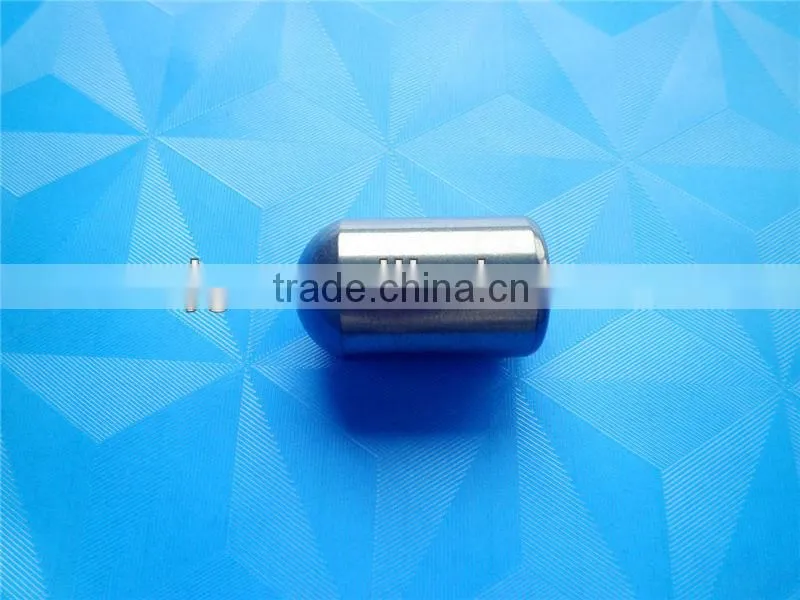

YG8C 16.9*28mm Sintered Tungsten Carbide Spherical Button:
Packng Details:
Regarding to the packing of YG8C 16.9*28mm Sintered Tungsten Carbide Spherical Button,we often:
Inner by PVC box with bubble bag,Outter by Fibre Box,or as request by customer
Company Brief Discription:
Founded in May 2001,with an area of 15418 square meters' factory,over 10 years OEM experience and over 200 employees,so we have the confidence in:
1.We,JINGGONG,can accept order of all kind of special designed tungsten carbide products.
2.We,JINGGONG,promise you the 100% raw material .
3.We,JINGGONG,can finish your order within 7-30 days upon confirm the prepaid.
Also YOU and your drawing papers are warmly welcomed.
Quality Assurance:
we,JINGGONG,owned ISO 9001:2008, ISO 14001:2004 certification:
Support:
Whether you are looking for the right tool or need help with one you already own, we,ZHUZHOU JINGGONG CEMENTED CARBIDE CO.,LTD. are here to help:
Order Support Product Support
Contact:Ms.Ada Linn Contact:Mrs.He
Tel:0086-731-22896701 0086-731-22896708
Mob:0086-13055190722
Email:sale1 at
jgcarbide01 at
Skype:ada_linn
Add:Jinggong Industrial Park,Kunlunshanb Road,Tianyuan District,Zhuzhou,Hunan,China
